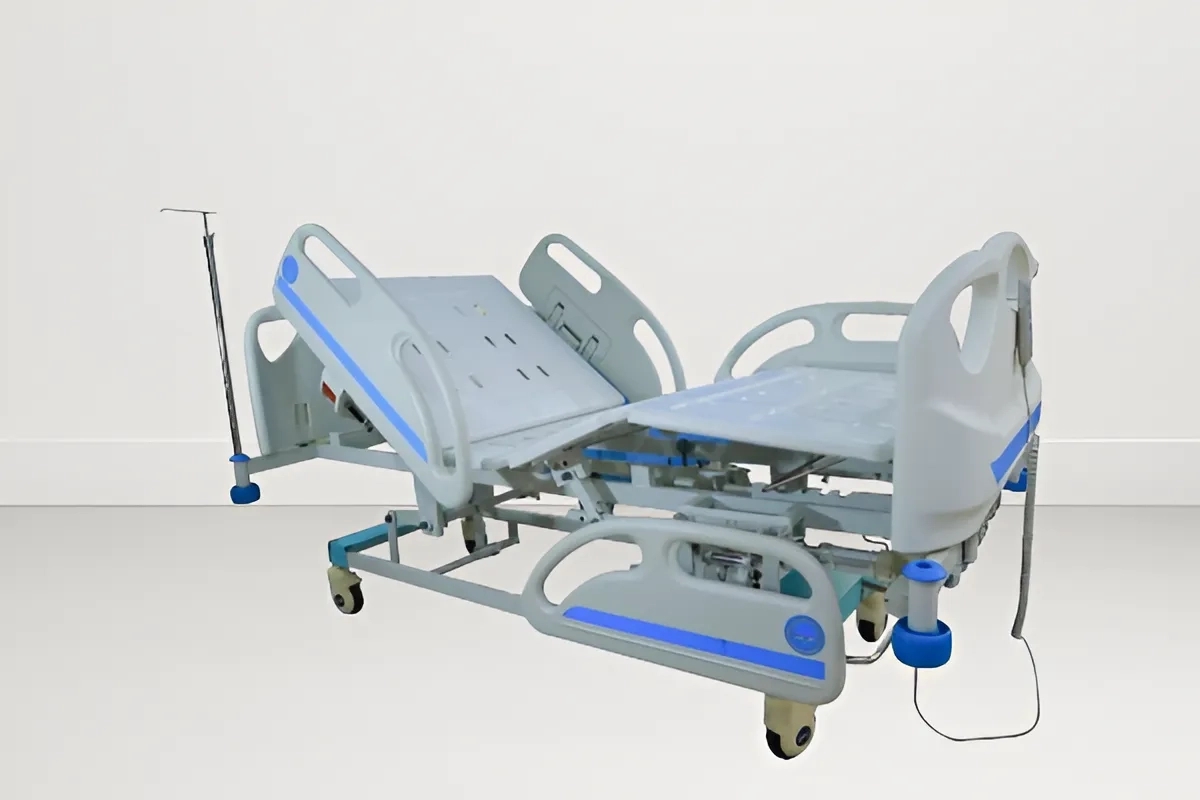

ICU Electro Mechanical Bed
Specifications :
Advance linear actuator system [03 pcs motor, 01 pc control box, 01 pcs handset]
Overall approx. Size: 81’’L X 38’’W X 18’’-27’’H
Mattress Platform size - 76"L X W 35"W
Motorized backrest, knee rest & HI-LOW adjustment
All positions operated by electrically & manually
Two pieces individual imported collapsible side railings
Four corner safety molded buffer 100mm Diameter.
Polymer molded head and foot panels that easily removable without using any tools.
Framework made-up of M.S. tubes 1.6mm thickness (50mm*25mm rectangular tubes).
4 section top made-up of oval perforated CRCA 1.2mm M.S. sheet.
Bed mounted on 5" castors with 2 brakes.
S.S. telescopic I.V. rod provision for 4 locations.
SS heavy duty IV pole
Holder for urine bag.
Finish: pre-treated nine tank hot phosphate & epoxy powder coated.
Optional: 4’’ ICU Bed Mattress
