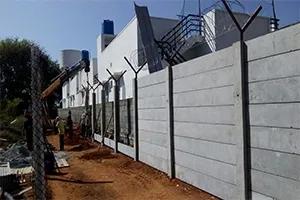

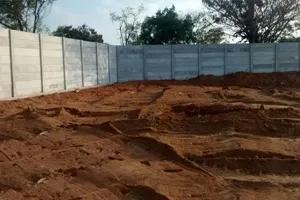

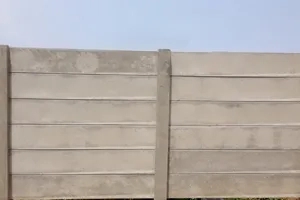

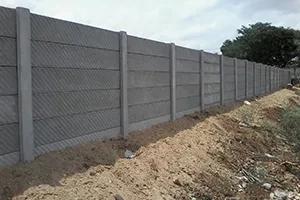

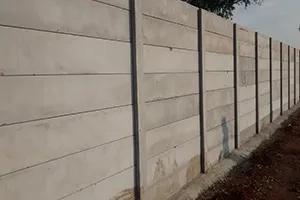

Arto Precast Compound Wall

Precast compound walls are a modular solution that can be used as boundary or security or architectural walls. Aesthetics, cost and speed of installation are some of the important factors considered in today’s construction environment. The modular design allows for variable height to suit the requirement and also allows for customisation of the design.

Design :

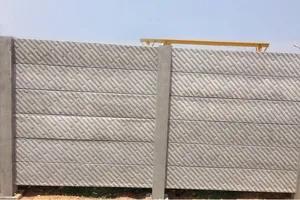

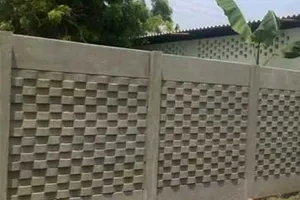

Designs are dependent on project specifications and applications. As these are non-structural members, they are designed to withstand dead and wind loads. We offer the option of using prestressed slabs to improve feasibility. Furthermore the addition of Steel Y-angles on top of the columns allow for the addition of barb wires for extra security. We also offer customised patterned slabs based on the customers’ requirements.

Standard pole dimensions: 150mm x 150mm x 2400mm , 150mm x 150mm x 3000mm

Standard slab dimensions: 1830mm x 300mm x 40mm (and 50mm) , 2500mm x 300mm x 50mm
