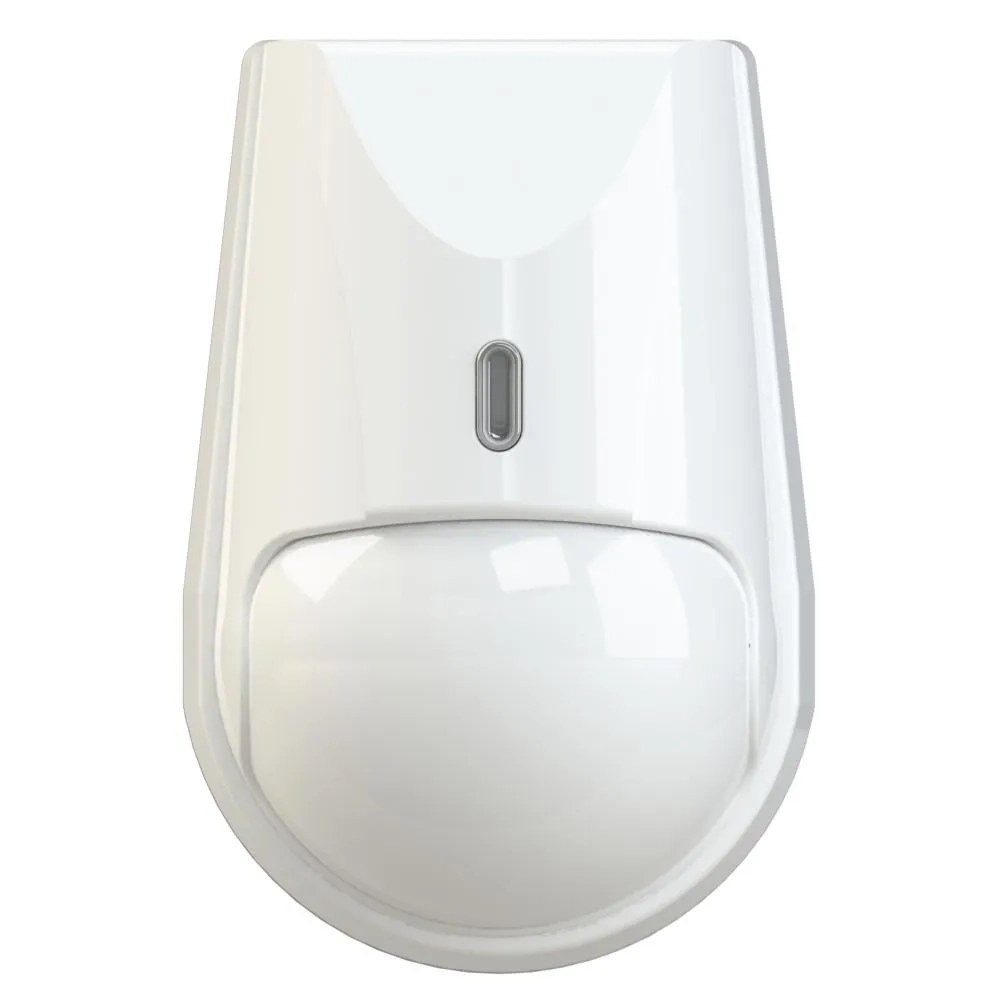

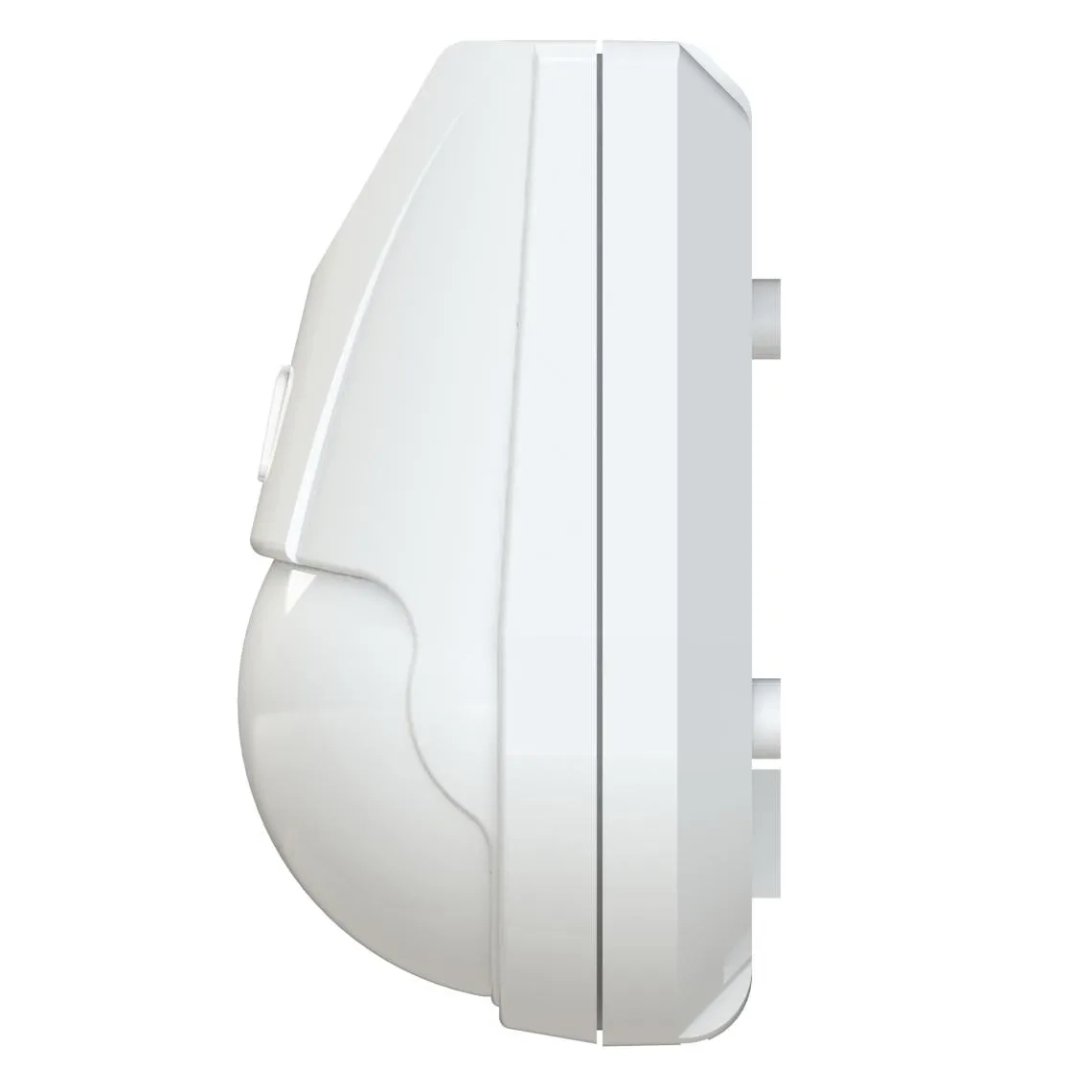

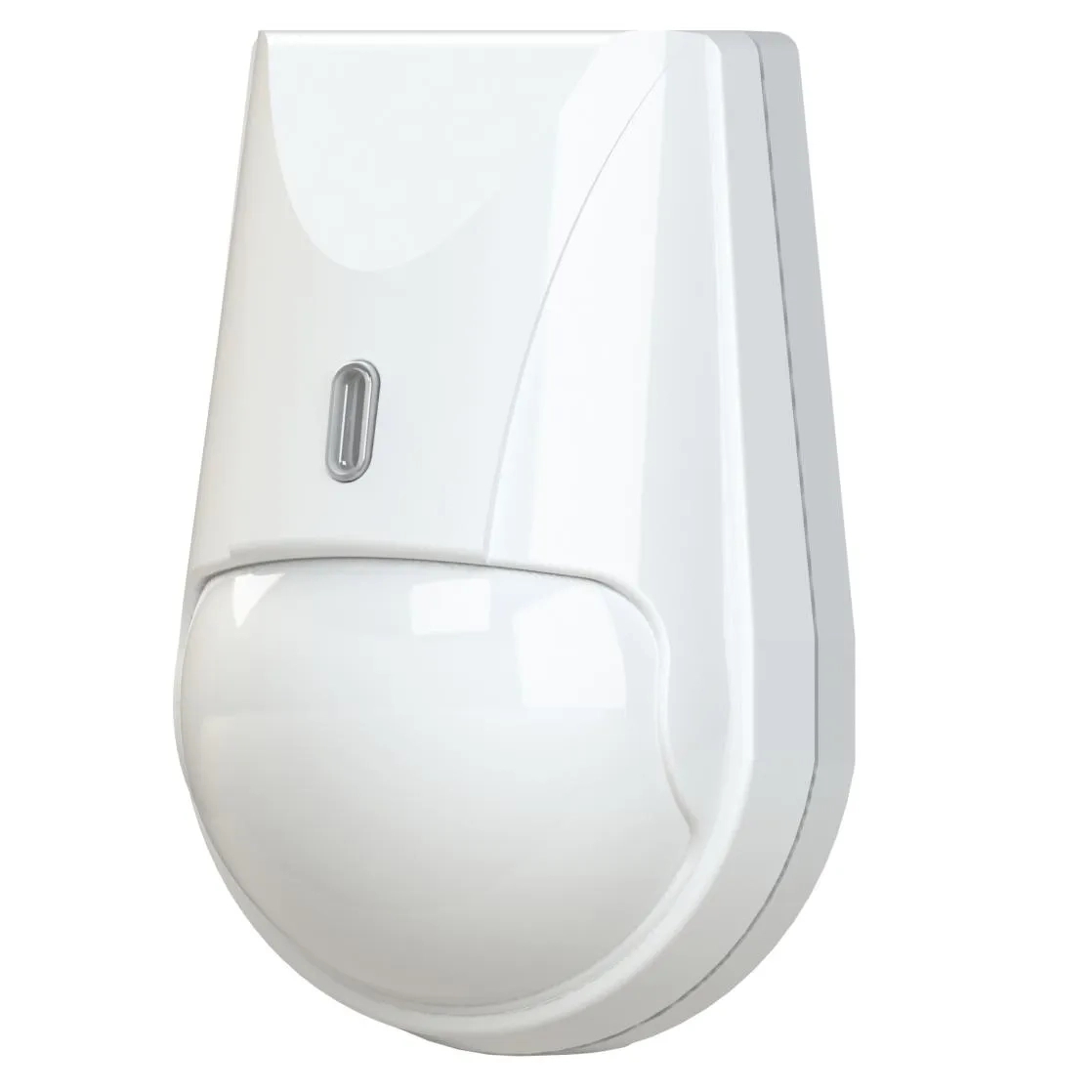

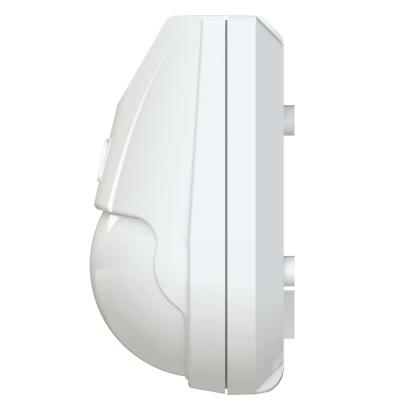

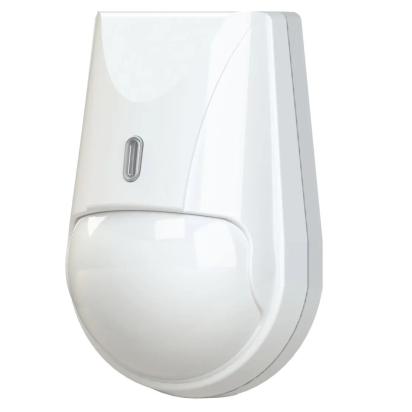

Rielta Foton-10MD - Passive Infrared Sensor

Passive Infrared Detector Foton-10MD.

Features:

Wide-angle detection zone.

Pet immunity up to 10 kg.

Small-outline package

Alarm memory

Case tamper protection

Supplied with the swivel bracket

Alarm messages generation by relay contacts opening.

Contents of the kit:

Passive Infrared Detector Foton-10MD - 1 pc.

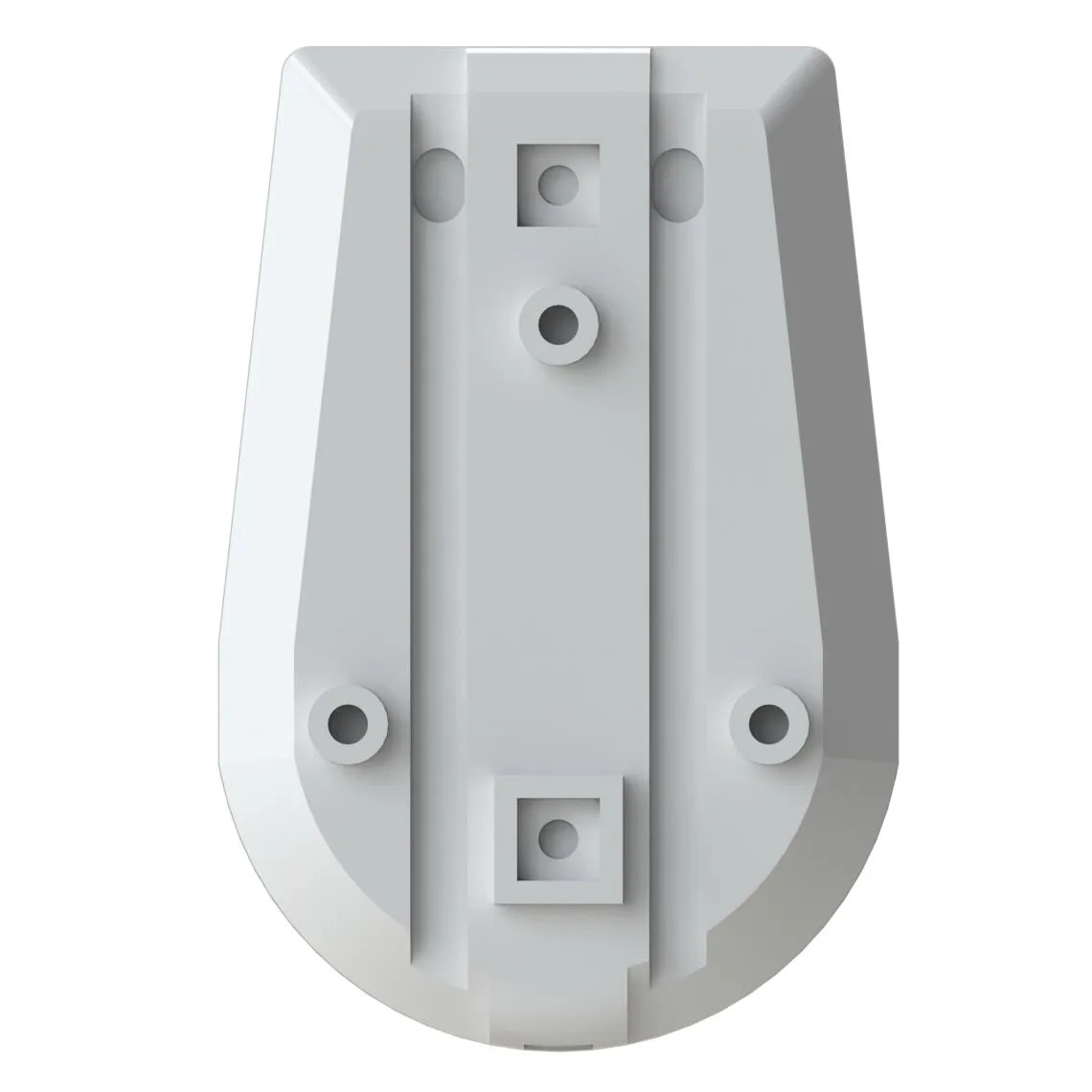

Bracket.

Operational documentation

Code: sby00000174

Pet immunity: 10 kg

Voltage: from 9 to 15 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 90х60х50 mm

Installation height: 2,3 meters

Maximum detection distance: 12 meters

Case opening control: Yes

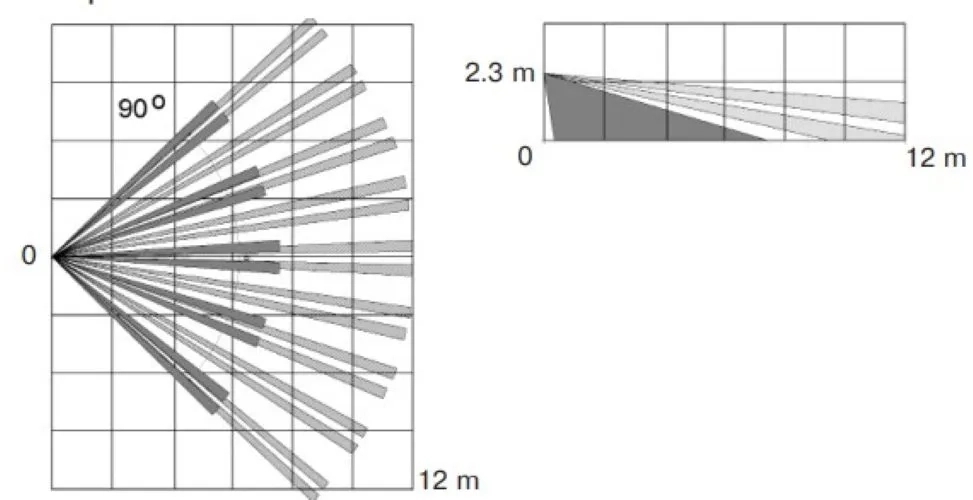

Detection zone: Volumetric

Refer Catalogue For More Information
