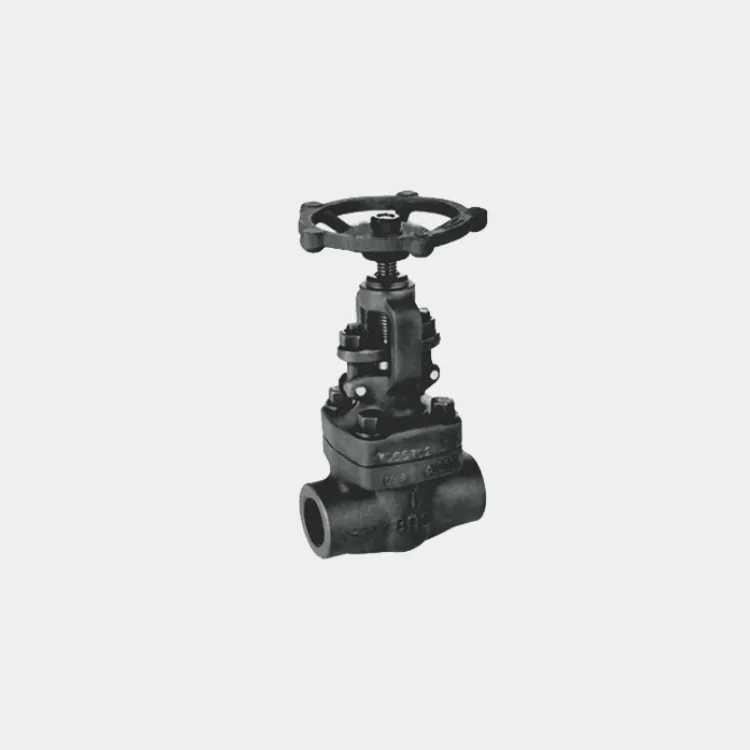

Global Flow Forged Steel Gate Valve IBR & NON-IBR (800/1500/2500 Class)

Features: OS & Y Type, Bolted Bonnet

Design Std: API 602/ANSI B 16.34/ Testing as per API 598

Low operating Torque

Valves with Back seat arrangement

Solid wedge

Screwed to BSP as per BS 21/ANSI/ASME B 1.20 NPT./

Socket weld to B 16.11/ Butt weld ends as per B 16.25

Material of Construction: Body: A105/F11/F22/A 182 Gr. 304/F316/LF2/Duplex

Bonnet: A105/F11/F22/A 182 Gr. 304/F316/LF2/Duplex

Gasket: Sp. Wound SS 304/ SS 316 with graphite/PTFE Filter

Gland Packing: Graphoil/PTFE

Wedge Facing:13% Cr./ SS 304/ SS 316 / Duplex

Seat: 13% Cr. SS 304/ SS 316/Stellite / Duplex

Seat: 13% Cr. SS 304/ SS 316/Stellite / Duplex

Seat: 13% Cr. SS 304/ SS 316/Stellite / Duplex

Gland Bush: A 105/ suitable to body Material

Gland Flange: Forged Steel

Yoke Sleeve: A 439-D2/Al-Bronze

Hand wheel: Malleable Iron/ Cast steel
