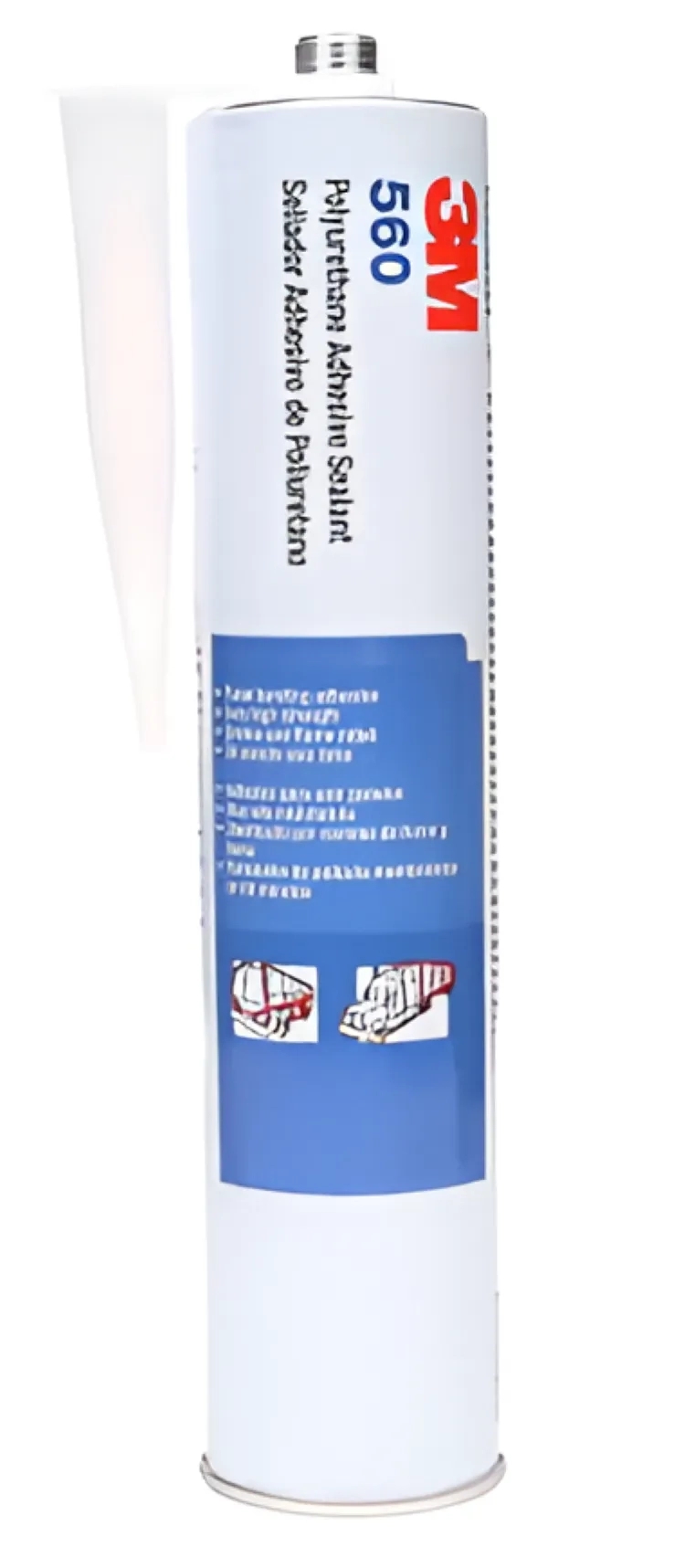

3M™ Polyurethane Adhesive Sealant 560

3M™ Polyurethane Adhesive Sealant 560 is a high-strength, single-component, moisture-curing, gap-filling polyurethane adhesive that creates high strength bonds on a wide variety of materials including plastics, metals, fiberglass and wood.

Creates High Strength Elastomeric Bond with Good UV Resistance

Engineered for high performance, 3M™ Polyurethane Adhesive Sealant 560 (PDF, 373.52 Kb) is a single component, moisture curing polyurethane sealant used to bond a wide variety of materials, including plastics, fiberglass reinforced plastic (FRP), sheet molding compound (SMC), aluminum, steel, coated metal and wood. It exhibits high tensile strength, good UV resistance, mid range Shore A Hardness and high modulus in a wide variety of extreme service environments. Available in cartridge, sausage pack and drum volumes to meet your application needs.Once skin forms (50 60 minutes), the sealant can be painted to improve the final finish.

Details :

Adhesive Type : Polyurethane

Application Method : Hand or pressure caulk

Brands : 3M™

Full Cure : >4 mm/24 hr

Hardness : 55 Shore A

Industries : Construction, General Industrial, Transportation

Modulus at 100% : 145 Pound-Force Per Square Inch

Physical Form : Medium paste

Product Colour : White, Black

Product Form : Sausage

Solids Weight Percent (Approximate) : 90 %

Surface Type : Metal

Tack Free Time : 1 hr

Units per Case : 12.0

Dimensions and Classifications :

Container Size (Metric) : 600 ml

Highlights :

High strength bonding to replace mechanical fasteners and rivets.

Permanently elastic to allow joint movement.

50-60 minute skin time; paintable, once skin forms.

Good UV resistance.

One component, moisture-curing sealant simplifies production.

Bonds dissimilar materials for increased design flexibility.

Gap filling capability.

Features mid-range Shore A hardness.

Recommended Applications :

Panel bonding

Attaching exterior panels and metal framework

Vehicle flooring attachment

Transportation manufacturing (bus, rail, truck, trailer)

Replacement of mechanical fasteners in many situations

Paintable after Skin Forms for Improved Appearance

3M™ Polyurethane Adhesive Sealant 560 offers an alternative to mechanical fasteners and can replace rivets in some applications. It will bond dissimilar substrates and a wide selection of materials. This adhesive will perform in temperatures ranging from 40°F/ 40°C to 194°F/90°C.

Refer the Catelogue for more Information.
