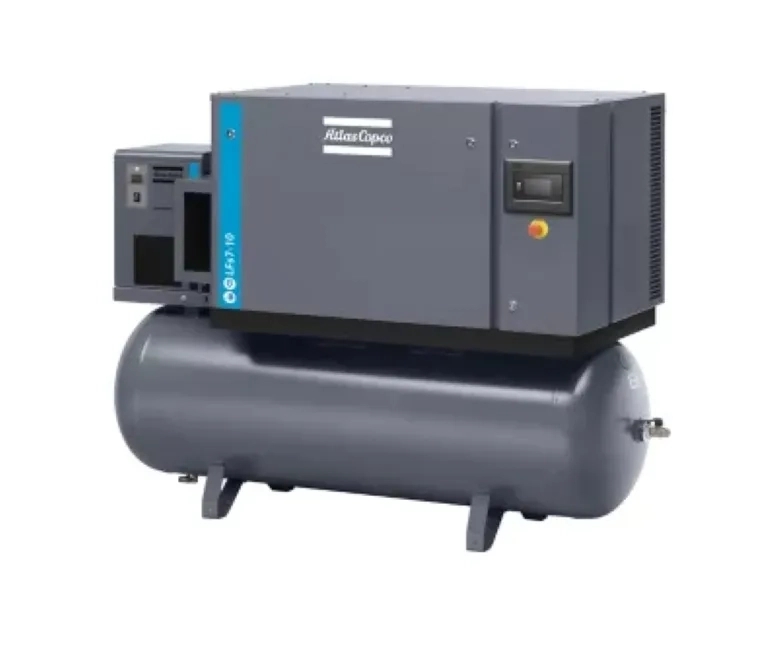

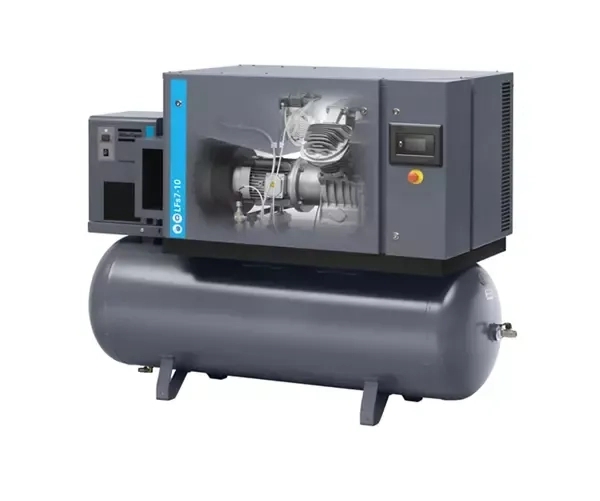

Atlas Copco LFs Premium Oil-free Compressor

A zero-compromise oil-free air solution One of the most complete oil-free piston compressors on the market today, the LFs meets all your compressed air needs.

Are you a frequent user of nitrogen? The Atlas Copco LFs is the high-performance, cost-saving foundation of your nitrogen generation system. The oil-free LFs doesn’t require additional filtration equipment.

As a result, the LFs gives you a more compact footprint, lower maintenance and minimized downtime.

Piston compressors have always presented a compelling offer: robust, low maintenance and energy efficient. However, this strong performance typically came with high noise levels and few control options.

Capacity FAD l/s : 11 l/s - 31 l/s

Capacity FAD : 39.6 m³/h - 111.45 m³/h

Capacity FAD m³/min : 0.66 m³/min - 1.86 m³/min

Working Pressure : 4 bar(g) - 10 bar(g)

Installed motor power : 5.5 kW - 15 kW

Different power options : 5.5 - 15 KW

Pressure levels : 4 - 10 bar

Electric potential options : 230 / 400 / 460V

High energy efficiency :

The direct driven LFs comes with a number of innovations like a one-bearing motor, load/stop technology… to reduce energy consumption to an impressive minimum.

Quiet operation :

Thanks to its sound-insulating canopy, the LFs achieves noise levels as low as 71 db(A), allowing installation to be close to the point of use.

More sustainable :

A nitrogen generation system provides an independent supply of nitrogen when needed and at the lowest cost, eliminating ordering, transportation, storage and delivery expenses. Continuous operation :

The LFs can offer a 100% duty cycle for uninterrupted service thanks to its oil-free technology and internal cooling fan system.

100% oil-free air

The LFs’s ISO 8573-1 CLASS 0 (2010) certified pump produces unquestionably clean air.

Complete control :

The LFs comes with the Atlas Copco Touch already built in to give you advanced electronic control and monitoring. The one-touch controller is easy to use, optimizing both performance and reliability.

High reliability :

With an operational lifetime of 20,000 hours, the LFs is a long-term companion. Because the LFs doesn’t use any oil, it will last longer with only minimal service.

Technical Property : Value

Capacity FAD l/s : 11 l/s - 31 l/s

Capacity FAD : 39.6 m³/h - 111.45 m³/h

Capacity FAD m³/min : 0.66 m³/min - 1.86 m³/min

Working Pressure : 4 bar(g) - 10 bar(g)

Installed motor power : 5.5 kW - 15 kW

Refer Catalogue for More Information.
