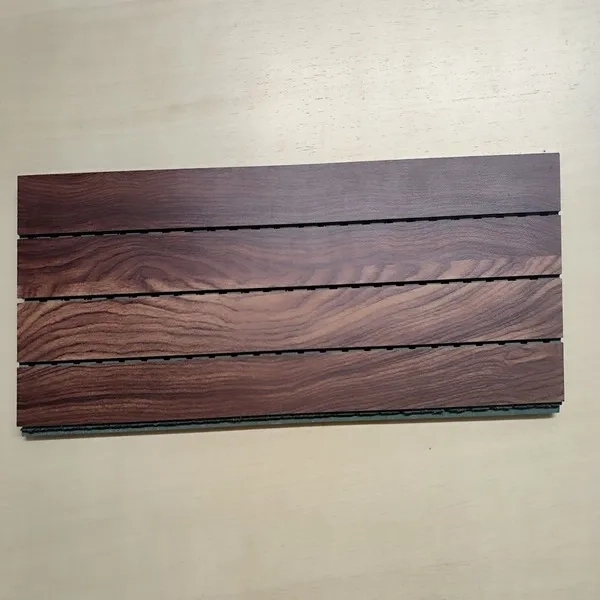

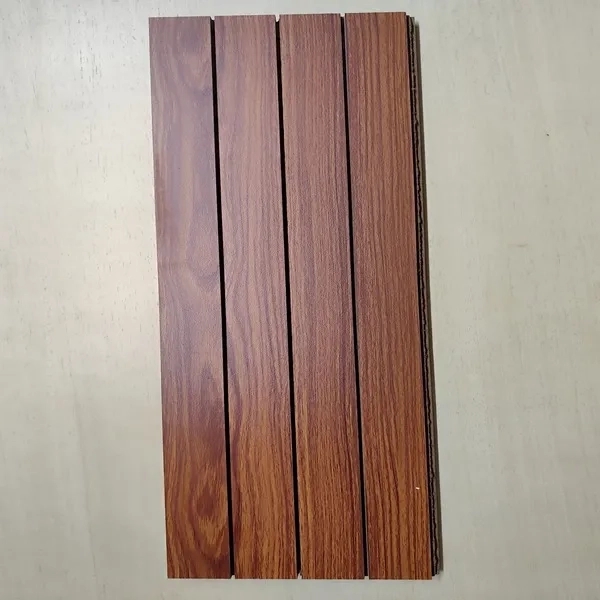

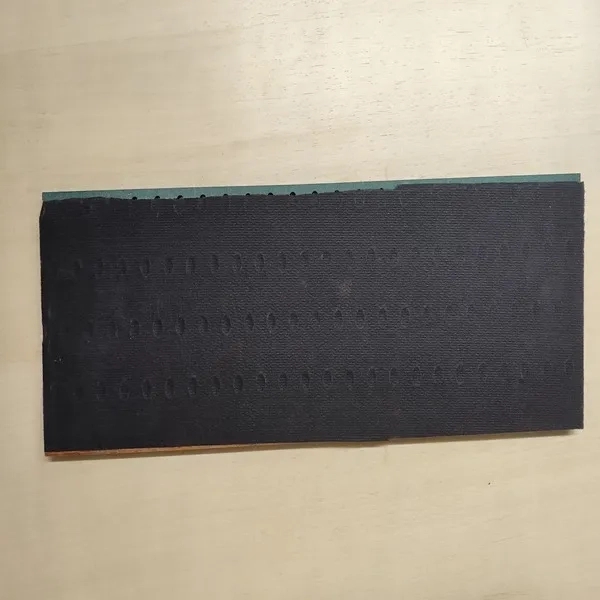

This is an MDF / HDMR board based acoustic panel whose visible surface has parallel-lined grooved perforated pattern. The back of each panel has 10mm perforation for high frequency sound absorption.
Category: Groowood
Specification
Product Data
x Material : HDMR / MDF (Optional FR Coating with Ui94 Class O Rating)
Width : 128 mm / 192 mm
Length : 2440 mm
Thickness : 16 mm / 15 mm
Perforation Hole : 10 mm
Surface Finish : Pre Laminate / HPL

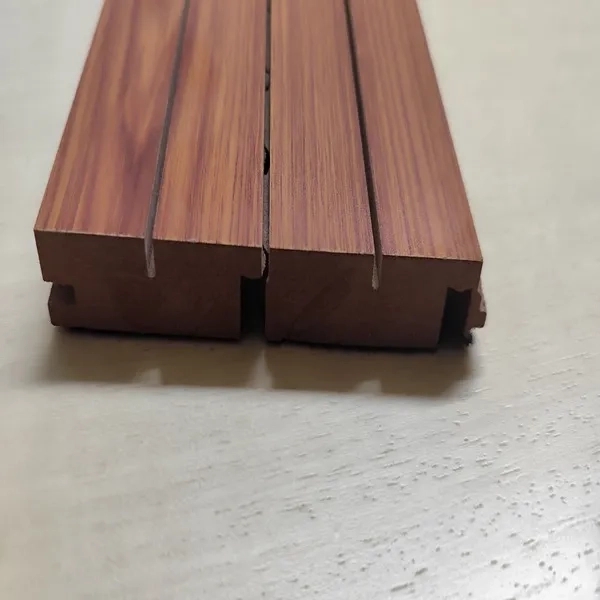

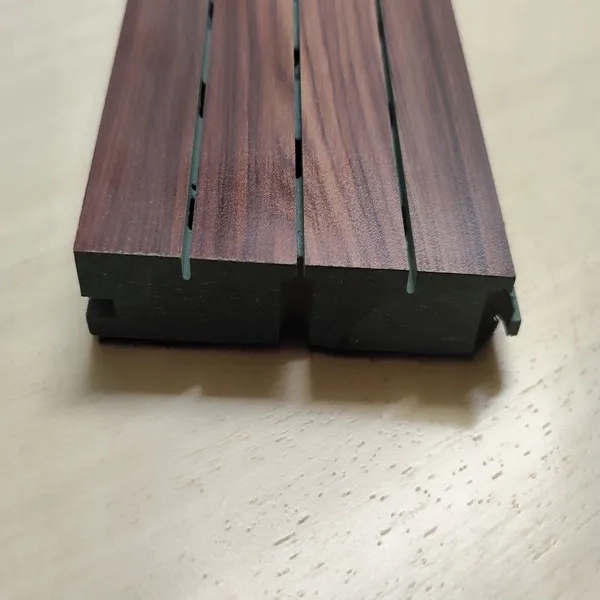

Edge Profile : Tongue & Groove
Pattern : 15-2/30-2/15-3/28-4/60-4 mm
NRC : upto 0.77
Weight : 3.20 kg per panel (MDF) & 3.6 kg per Panel (HDMR)
