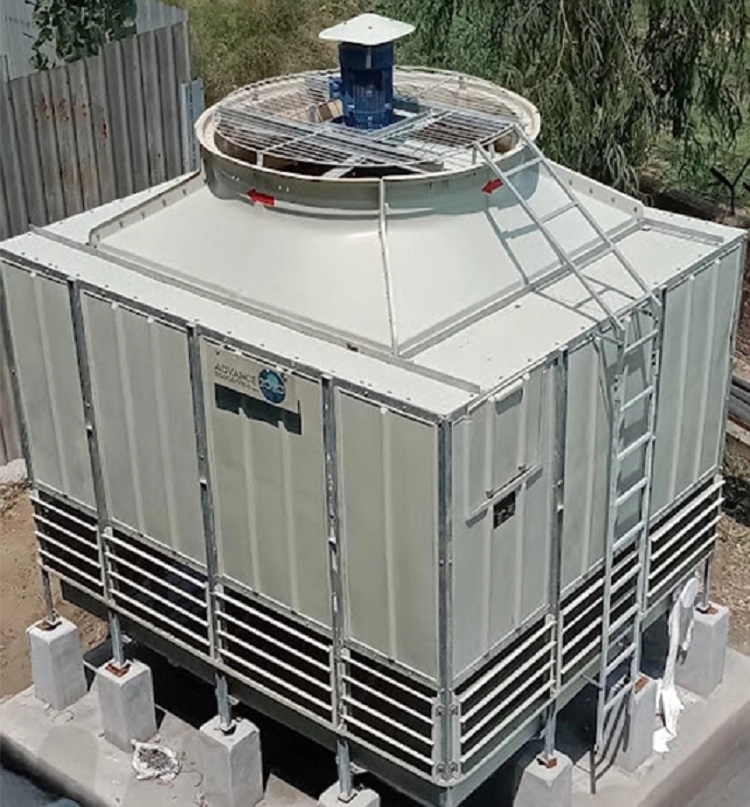

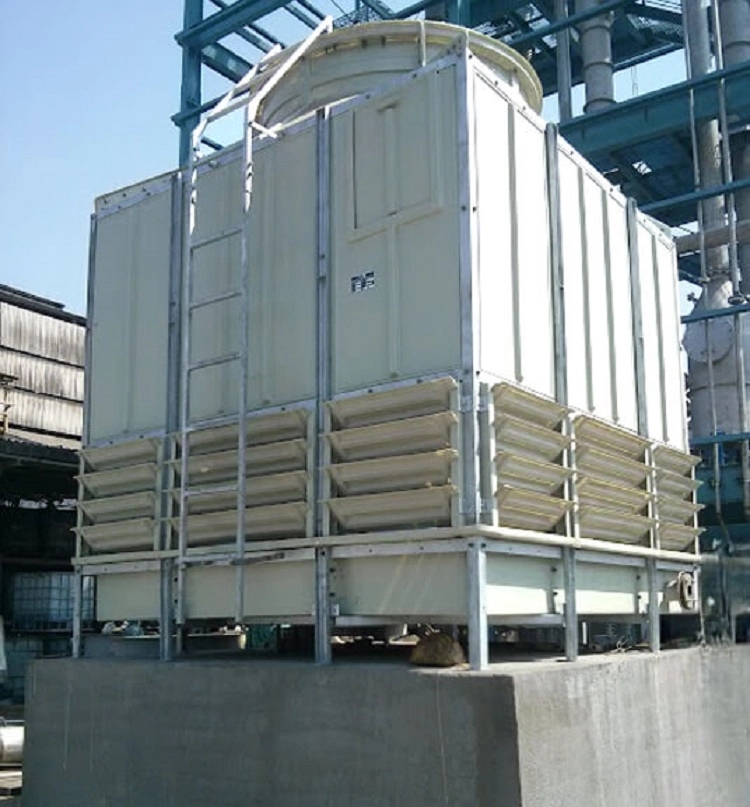

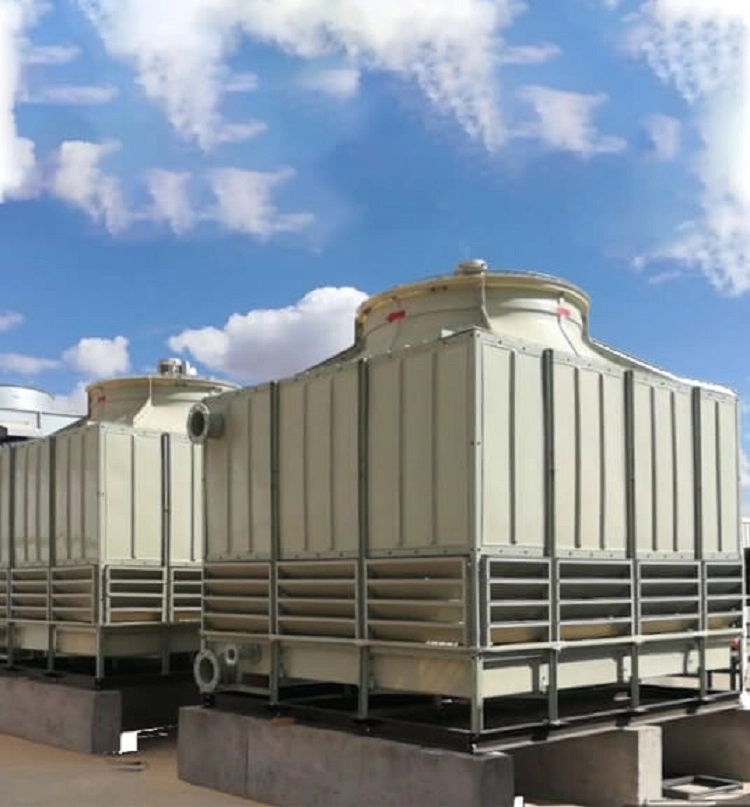

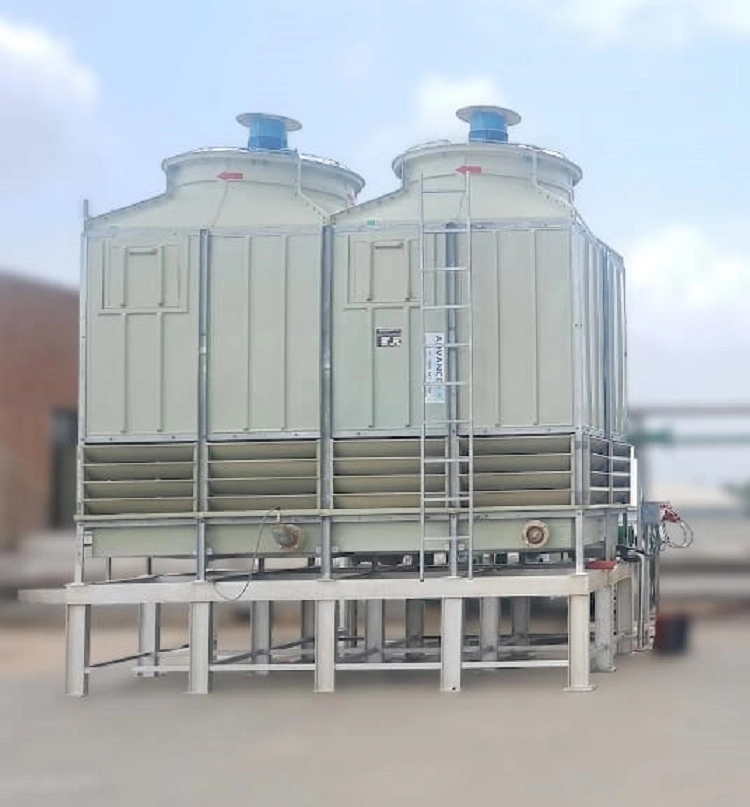

Advance KR Series Counter Flow Cooling Towers

The KR Series is a line of cooling towers meticulously crafted for various industrial sectors, with a particular focus on Chemical, Pharma, Food Processing, and Data Centers. These towers are meticulously engineered to optimize energy efficiency, addressing specific on-site needs and minimizing energy losses in components such as motors, fans, and transmission drives. The design enhancements contribute to an overall improvement in the cooling towers performance.

Features :

Cooling Towers components comply with CTI Standard

Energy-efficient PVC heat exchange fills media

Heavy Steel Gauge Structure, as per IS Standard, corrosion-resistant Galvanized components

Branded Electric Motor with Standard IE2 Motor; options include IE3 / IE4 / FLP / VFD / Electronically Commutated

Gearless direct drive

Axial Fans with aerodynamic design blade profile, with dynamic balancing standard G6.3 balanced fans

Aesthetic smooth both sides finish FRP casing

70% Faster Delivery – Operations are smoother with system-driven operation and modular design, reducing manufacturing times

50% Faster Installation – Prefabricated components and easy-to-install Cooling Towers

MOC options: MSHDG / SS304 / SS316 / Pultruded FRP with option of fully Metallic tower

Equipped with Belt drive system with option of Direct drive / Gear drive

Axial fans with aerodynamically designed blade profiles with the option of ultra-low noise fan.

Refer Catalogue for more information.
