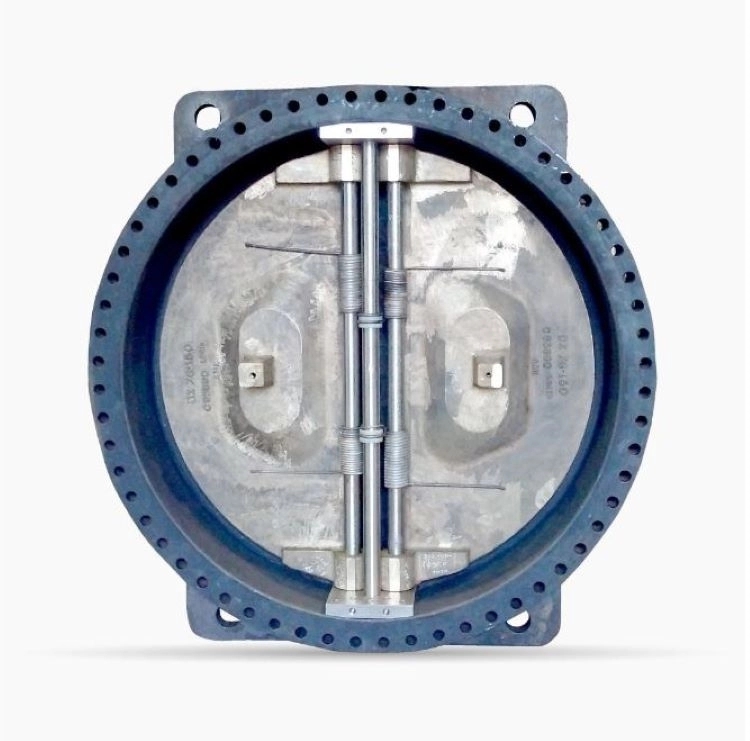

Flovel Dual Plate Check valve

Dual Plate Check Valves spanning over a period of over 3 decades supplying to Hydrocarbon, Energy and Process industries.With a reputation of providing quality services to its customers, Flovel Valves has an extraordinary portfolio of clients from around the world including many of the world's leading end users of oil and international engineering contractors.

Size : 2"-104" (DN50-DN2600)

Body/Door Material : Carbon Steel, Low Temperature Carbon Steel, Alloy Steel, Austenitic Stainless Steel, Duplex Stainless Steel, Supper Duplex Stainless Steel, Nickel Alloy, HASTELLOY, Aluminium Bronze

Spring Material : SS316, INCONEL 718, INCONEL X-750

Design Standard : API 594, API 6D, ASME B16.34, ASME B16.25, BS EN 12516-1

Pressure Rating : ASME #150-#2500, API 2000 PSI-10000 PSI, PN10-PN 40

Seat : Corrosion Resistant Alloys, Hard-facing, EPDM, VITON, PTFE

End Connection : WAFER, FLANGED, LUG, BUTTWELD, HUB, RTJ

Testing Standards : API 598, API 6D, ISO 5208, BS EN 12266-1&2.

Key Features :

Fire Safe Design Valves

Type Test - Validated Design

ETT - Elevated Temperature Tested Valves

FE - Fugitive Emission Tested Valves

Flow Test - CV Value and Pressure Drop

Life Cycle Tested

CRA - Corrosion Resistance Alloy Cladded Valves (Inconel 625, Inconel 825, SS316)

Cryogenic Application

Hydrogen Application

Vacuum Application

Rubber Lined
