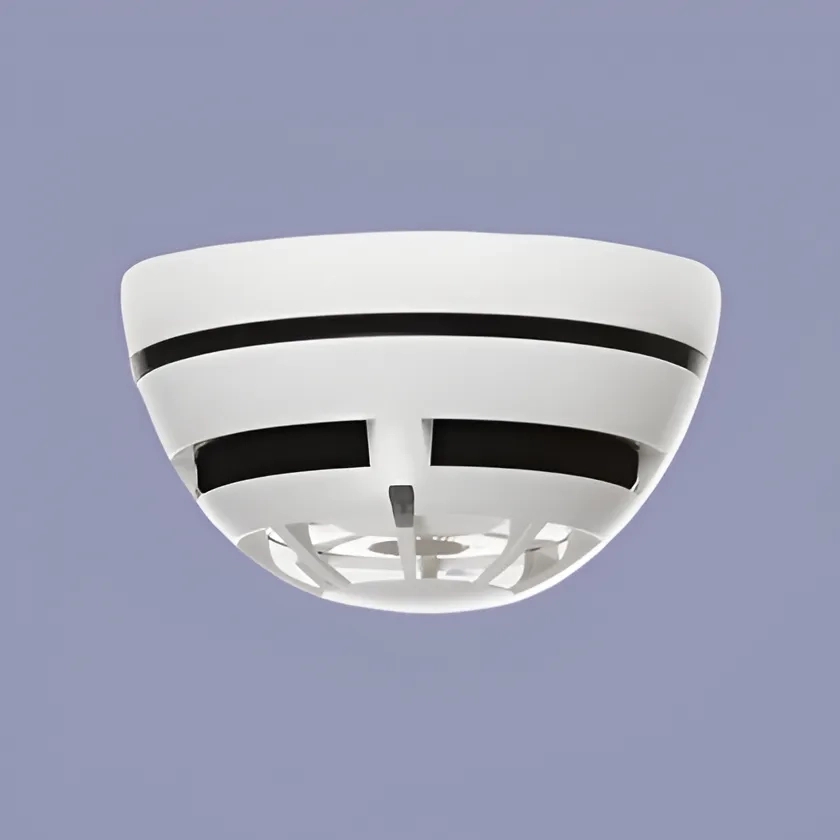

Ceasefire Intelligent-Class-P-Heat-Detector-With-Isolator(TI-002215)

Key Features :

Multiple modes of operation

Auto addressing capability on compatible fire control panels

Bi-directional isolator to protect against cable faults

Utilises fully digital protocol with high noise rejection

Dual bi-colour LEDs providing 360deg cone of visibility

Open style mounting base offers easy wiring and low pressure locking

Programmable using the Device Programming Tool

Magnet test capability

1 year product warranty

Type : Addressable

Model : TI-002215

Alarm Temperature : 58oC (Class A1R), 78oC (Class BS)

Operating Voltage : 15-40V DC

Standby Current Consumption at 24V : 85µA @ 24V DC

Remote Output Max Current : 20mA

Ambient Temperature : -10°C to +55°C

Relative Humidity : 95% (non condensing)

Dimensions (Diameter x Height) : To be specified

Standard : EN 54-5; EN 54-17

Certification/Approval Authority : LPCB

LED Indicator : Bi-coloured LED indicator with 360o visibility

Output for Response Indicator/ Remote Indicator : Yes

Short Circuit/Fault Isolator : Built-in dual isolator

Protection Class : IP40

Mode of Addressing : Electronically Addressed

Product Warranty : 1 Year Warranty
