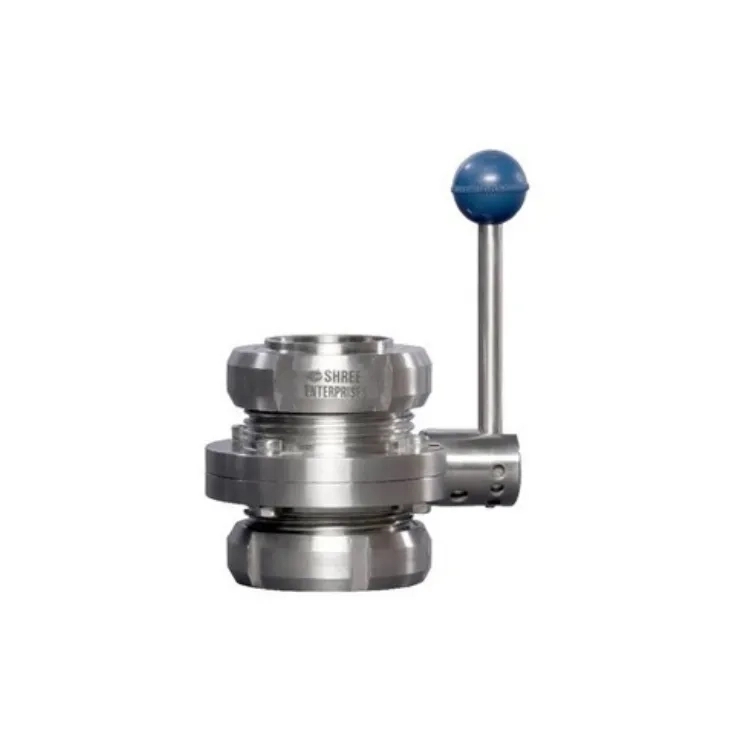

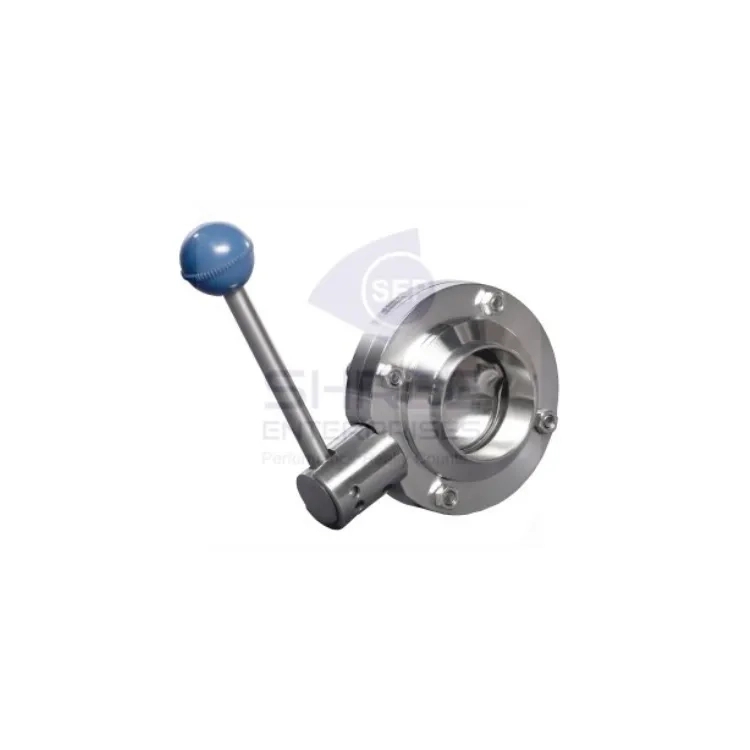

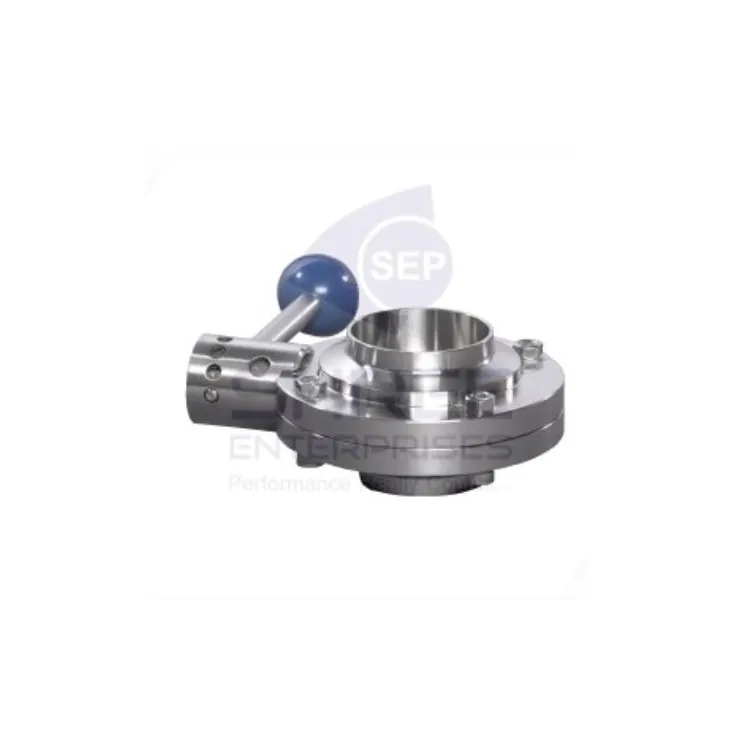

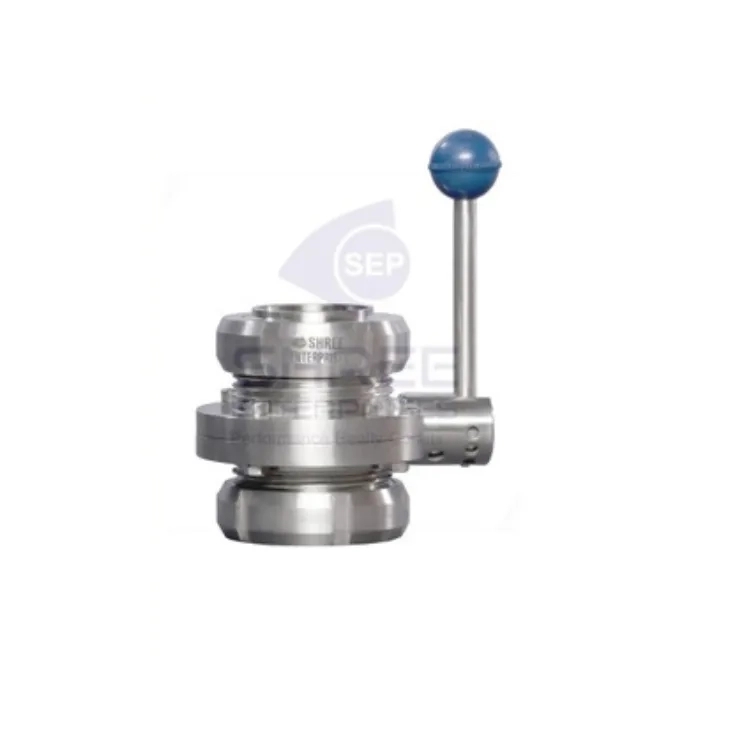

Shree SS Butterfly Valve

Type 1 - One Side Flange one side Union

Type 2 - Both side Union

Type 3 - Plain End

Features :

High Pressure Resisting ensuring longer life

Smooth Disc Rotations

Symmetrical Body

Easy In Operation

Minimum Flow resistance

Easy for Easy to install & Maintain

Pressure : 1 to 10 Bar

Surface Finishing : Matt / CNC / Mirror

Material : Stainless Steel

Valve Size : 25 mm to 100 mm

Operator : Manual

Grade : SS 304 / 316

Diameter : 1 " to 4 "

Warranty : 1 Year

Gasket : Nitrile / Silicon

Application :

Stainless Steel Butterfly Valves are widely used in Beverage, winery. Chemical Pharma & Dairy industries Mainly used for closing & Opening Purposes.

Refer Catalogue for More Information
