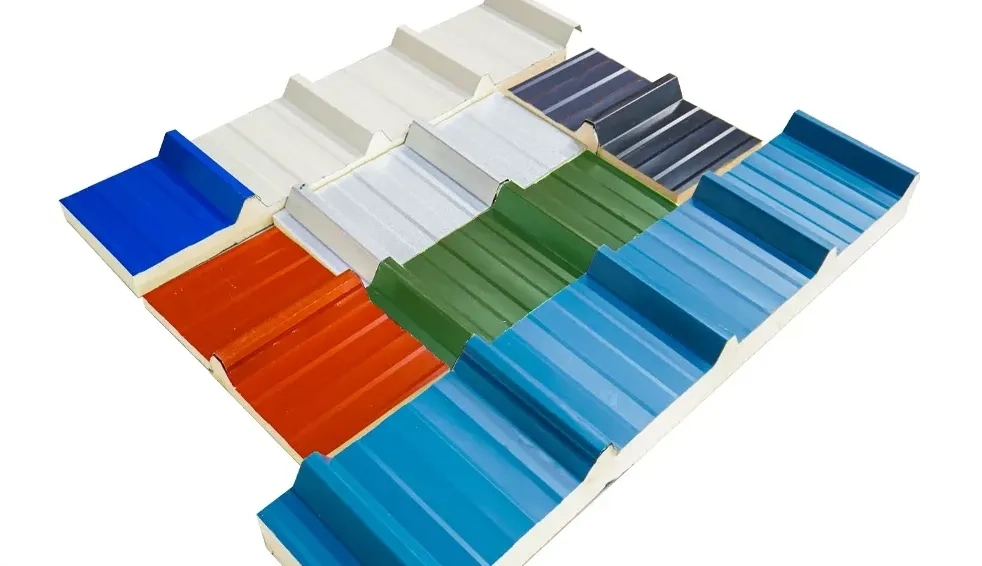

Arasfirma Aras 335-45 Roof Panel

Our Aras 335/45 roof panel is meticulously crafted to deliver exceptional performance in high water-carrying capacity, load-bearing capacity, weather resistance, and wind uplift resistance.

Specifications for Roof panel:

Effective Covering Width : 000mm

Overall Width : 1090mm

Advisable Length : 1500mm to 16000mm

Top Thickness : 0.35mm to 0.60mm

Bottom Thickness : 0.35mm to 0.60mm (Orders above 0.35mm require MOQ)

Coating Mass : Z70 GSM, AZ150 G SM, AZ70 GSM or as per client requirement (Orders above 0.35mm require MOQ)

Paint type : RMP, SDP, SMP*, PVDF (Requires MOQ)

Insulation Capacity

K Value : (Thermal Conductivity of PU) 0.020 W/mK

Tolerance : +/- 0.002

Water absorption of the foam

After 24 Hours : 1.0% of Volume
