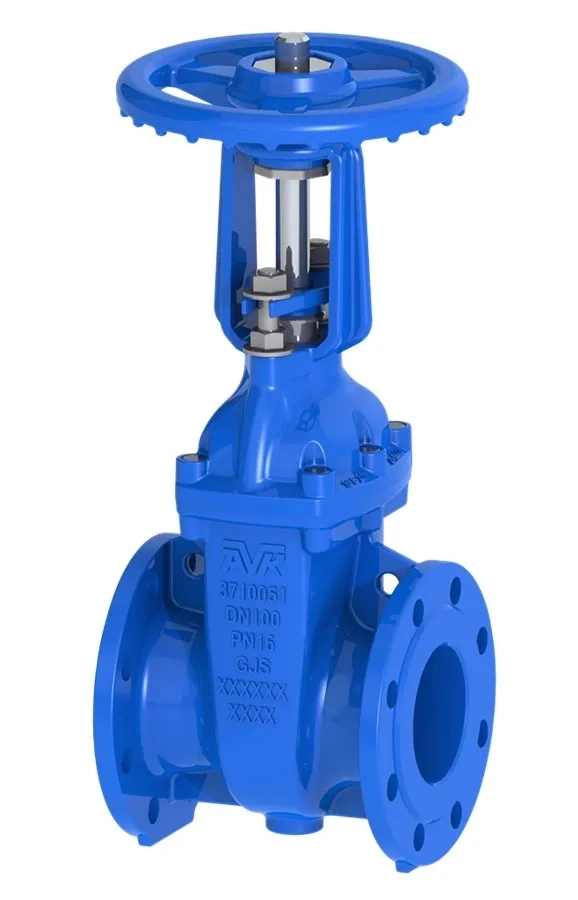

AVK Gate Valve, Metal Seated, PN16

Metal seat gate valve with outside yoke and rising stem. Operating direction clockwise to close. For drinking water, sewage and neutral liquids to max. 70°C

AVK series 37 gate valves are designed with built-in safety and quality in every detail. The metal valve seat is resistant to high temperatures in the medium and will not deform during long periods of compression. This ensures stable and reliable operation over the long life span of the valve.

Variant 37/46-002

Connection: Flanged

Material: Ductile iron

DN: DN50 - DN300

PN: PN 16

Closing direction: Clockwise to Close

Features:

Metal seat design

Gunmetal bronze face rings machined to a fine surface finish ensure a tight seal

Wedge with guides ensures uniform closure

OS&Y for clear indication of valve status at a distance

Stuffing box for re-tightening with three main O-rings and an NBR O-rings in a polyamide gland bushing

Gunmetal bronze thrust bearing plates

Handwheel

Bonnet gasket in EPDM with a circular cross-section, fixed in a recess to avoid blow-out

Full bore

Stem in 316 stainless steel

Lifting eyes for easy handling

300µm fusion bonded epoxy coating

Counterbored A4 stainless steel bonnet bolts, sealed with hot-melt and encircled by the bonnet gasket

All rubber and coating in contact with the water are drinking water approved

Refer Catalogue for more Information
