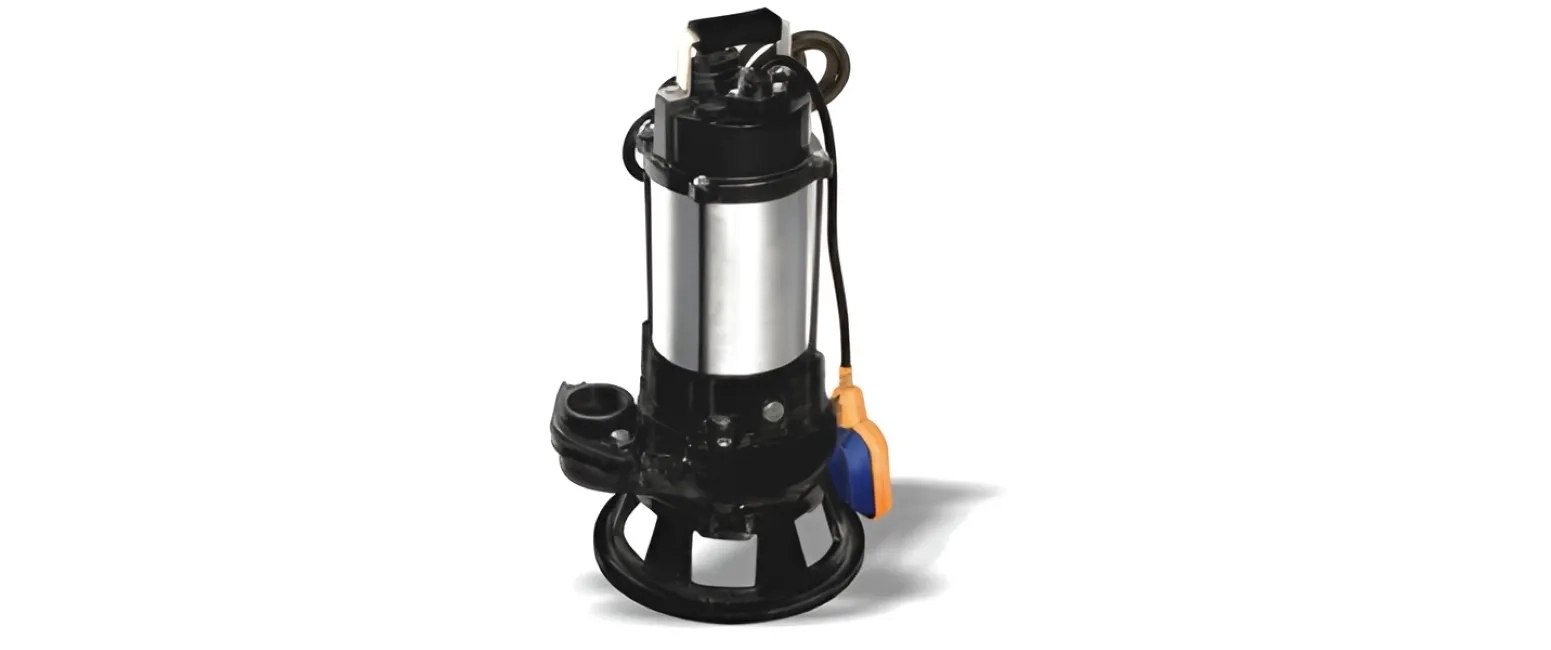

Oswal Sewage Pumps

A precision motor is achieved utilizing a laminated sheet steel production process combined with the highest standard of quality control. The drive shaft and rotor assembly is heat - treated and the stator and wiring impregnated with varnish and then heat dried in an industrial oven. This ensures a 100% quality manufactured motor with stable characteristics and a high efficiency.Standard accessories include: VCT cable with an epoxy resin sealed water - resistant cable base, AC thermal motor protector, dual mechanical seal and lip seal design.

Power Range: 1.0, 2.0 & 3.O HP in 1 Phase & 3 Phase

Speed: 2880 rpm

Version: 220-240V, 50 Hz, A,C.-1 Phase, 350-440V - 3 Phase

Discharge Range: 100 - 400 lpm.

Head Range: 3-12 mtr

Outlet Size: 50 & 75 mm

Duty: S1 (Continuous)

Protection: IP 68

Cable: VCT Epoxy resin seal cable.

Thermal Protector: Automatic reset motor protector

Insulation: Class B

Material of Construction:

Impeller Type: P type Semi Open

Refer Catalogue for More Information
