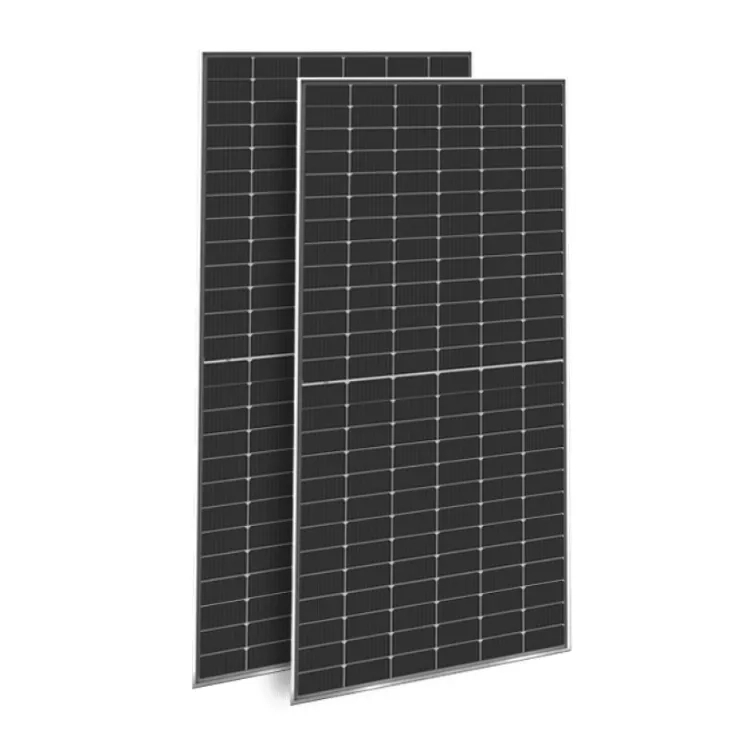

Saatvik Monoperc Bifacial (G2TB)

The Monoperc Bifacial module series combines advanced technology with high durability, making it ideal for high-performance solar applications. It is suitable for installations in a variety of settings, including residential, commercial, and industrial applications.

Module Type: Half-Cut PERC Monocrystalline, 144 cells

Dimensions: 2278 x 1134 x 35 mm

Weight: 28 kg

Front Cover: 3.2 mm tempered glass for added durability

Backsheet: Transparent for optimized bifacial performance

Frame: Silver anodized aluminum profile for corrosion resistance

Junction Box: IP68 rated with 3 diodes for enhanced safety

Cable Length: 350 mm, 4 mm²

Efficiency: High-efficiency module with a bifaciality factor of 70 ± 5%

Power Output Range: Available from 525 Wp to 550 Wp

Operating Temperature: Designed to operate between -40°C to +85°C

Maximum System Voltage: 1500 V

Temperature Coefficient of Pmax: -0.36%/°C, optimizing output under temperature variations

High Module Conversion Efficiency:

Achieves up to 21.29% efficiency using state-of-the-art cell technology, maximizing energy output and optimizing installation space.

Advanced Bifacial Technology:

Incorporates MBB (Multi-Busbar) and Half-Cut Monoperc cells with Ga-Doped wafers, enhancing both front and rear-side performance to capture additional sunlight and increase power output.

Positive Power Tolerance:

Each module guarantees a positive tolerance in power output, ensuring reliable and consistent energy production.

Superior Low-Light Performance:

Optimized for excellent performance even in low irradiance conditions, enabling enhanced energy generation throughout the day.

Excellent PID Resistance:

Engineered with superior Anti-PID performance, certified for up to 288 hours, ensuring long-term module reliability in varied environmental conditions.

Durability in Harsh Environments:

Built to withstand challenging environments, including coastal areas, farms, and regions with high ammonia exposure, guaranteeing sustained performance across diverse settings.

Durability & Warranty :

Certifications: Compliant with global standards, including IEC 61215, IEC 61730, IEC 61701, IEC 62716, and IEC 62804, validating quality and safety.

Warranty: Supported by a 12-year product warranty and a 30-year performance warranty, with guaranteed power degradation of less than 2.0% in the first year and no more than 0.55% per year thereafter.
