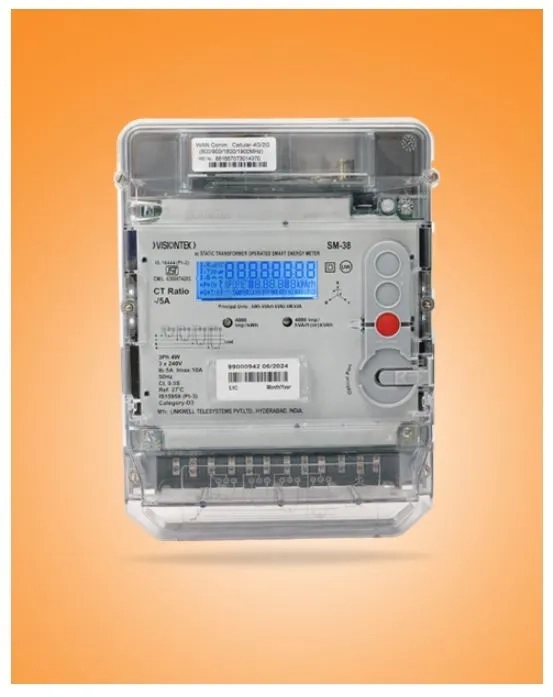

Visiontek Three-Phase Transformer Operated Smart Meter SM-38

Three-Phase LT Transformer Operated Smart Meter SM-38, Class 0.5S accuracy meters designed for revenue metering application for high value commercial & industrial (LT) consumers with net-metering and dual energy registers options and for energy audit purposes at distribution transformer side with DI/DO for health monitoring.

VISIONTEK SM-38 Three Phase ac Static Transformer Operated Smart Energy Meter from Linkwell is designed for revenue metering application for high value commercial & industrial (LT) consumers and for energy audit purposes at distribution transformer side.

Smart Meters have versatile features that enable the utilities to configure the meter remotely such as downloading the TOD tariff into the meter, configure to Bi-directional metering (Net Metering), firmware upgrade, etc.

VISIONTEK SM-38 Smart Meters have a field replaceable communication module that offers two-way communication for meter data transfer. The communication module is swappable between different communication technologies as specified in IS 16444 Part 2 such as 6LoWPAN or Cellular (GSM/GPRS/2G/4G LTE).

Features:

Class 0.5s accuracy and compliance with IS/IEC standards

LCD for display of measured parameters with legends & communication network indications

LED output for Calibration/Testing and Meter activity

Programmable Time of Use metering, block load profile, daily load profile

Optical Communication port for local meter reading

Universal NIC (Network Interface Card) for interoperability, field replaceable, plug and play remote communication

Remote meter reading through GSM/GPRS modem/ NBIoT Module/LPRF module with 6LoWPAN network protocol

Push/Pull data mechanism for meter data transfer

last gasp/first breath/other event alerts

Firmware download over the air feature

Anti-tamper features, detection of meter top cover-open and communication module open instances

Digital inputs for health monitoring of DT
