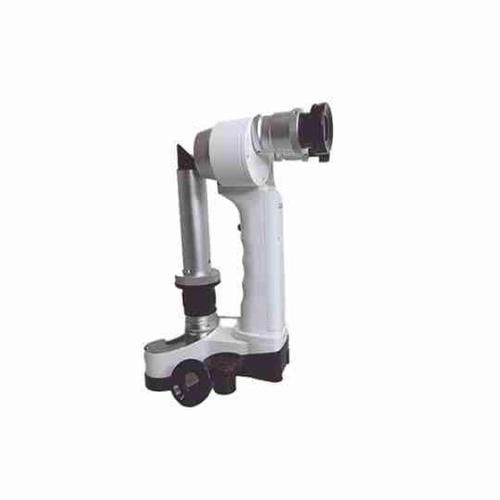

Matronix Hand Held Slit Lamp R-291

The Matronix Hand Held Slit Lamp R-291 is a compact and efficient diagnostic tool made for anterior segment examinations on the go. With its lightweight structure and dual magnification options, this device is ideal for eye care professionals conducting field visits, home consultations, or quick in-clinic checks.

Fitted with 5X and 8X eyepieces and a high-quality objective lens, the slit lamp delivers crisp and reliable visuals for clear inspection. The ±2D dioptre adjustment and adjustable pupil distance from 45 mm to 65 mm allow personalized viewing, ensuring comfort and precision for both examiner and patient.

Its illumination system is built for flexibility—offering a slit width range of 0 to 5 mm and various heights and spot diameters to meet different clinical requirements. A horizontal slit rotation of +20° enhances examination angles, while specialized filters including heat absorption, grey, red-free, and cobalt blue optimize imaging for a range of diagnostic needs.

Features :

Product Type : Portable handheld slit lamp

Step Configuration : Fixed magnification

Magnification Options : 10x,16x

Illumination Power : Battery powered

Fixation Light : available

Slit Width Range : 0–5 mm

Slit Height Control : Preset steps

Slit Angle Adjustment : Horizontal ±20°

Slit Inclination : —

Portability : Highly portable

Weight : 750 g (net)

Working Time : 3–4 hours battery

Clinical Positioning : Emergency & outreach use

Best Use Case : Bedside / field examination

Eyepiece : 5X and 8X

Objective lens : IX

Total Magnification : 5X and 8X

Diaopter adjustment : ±2D

Pupil Distance : 45mm-65mm

Working distance : 65mm

Silit Width : 0~5mm Continously Adjustment

Slit Height : 0.3mm, 2mm, 2mm, 5mm

Spot Diameter : 0.3mm, 2mm, 2mm, 4mm

Slit Rotar Angle : Horizontal +20 Degree

Fliter : Heat absorption, Grey, red free, Cobal Free

Working Hours : 3 to 4 hrs

Voltage : AC 220V10%50Hz1Hz

Frequency : AC 110V10%60Hz1Hz

Net Weight : 750G

Gross Weight : 2.5KGS

Package : White and black Carring Case

Packing Size : 410mm*195mm 230mm
