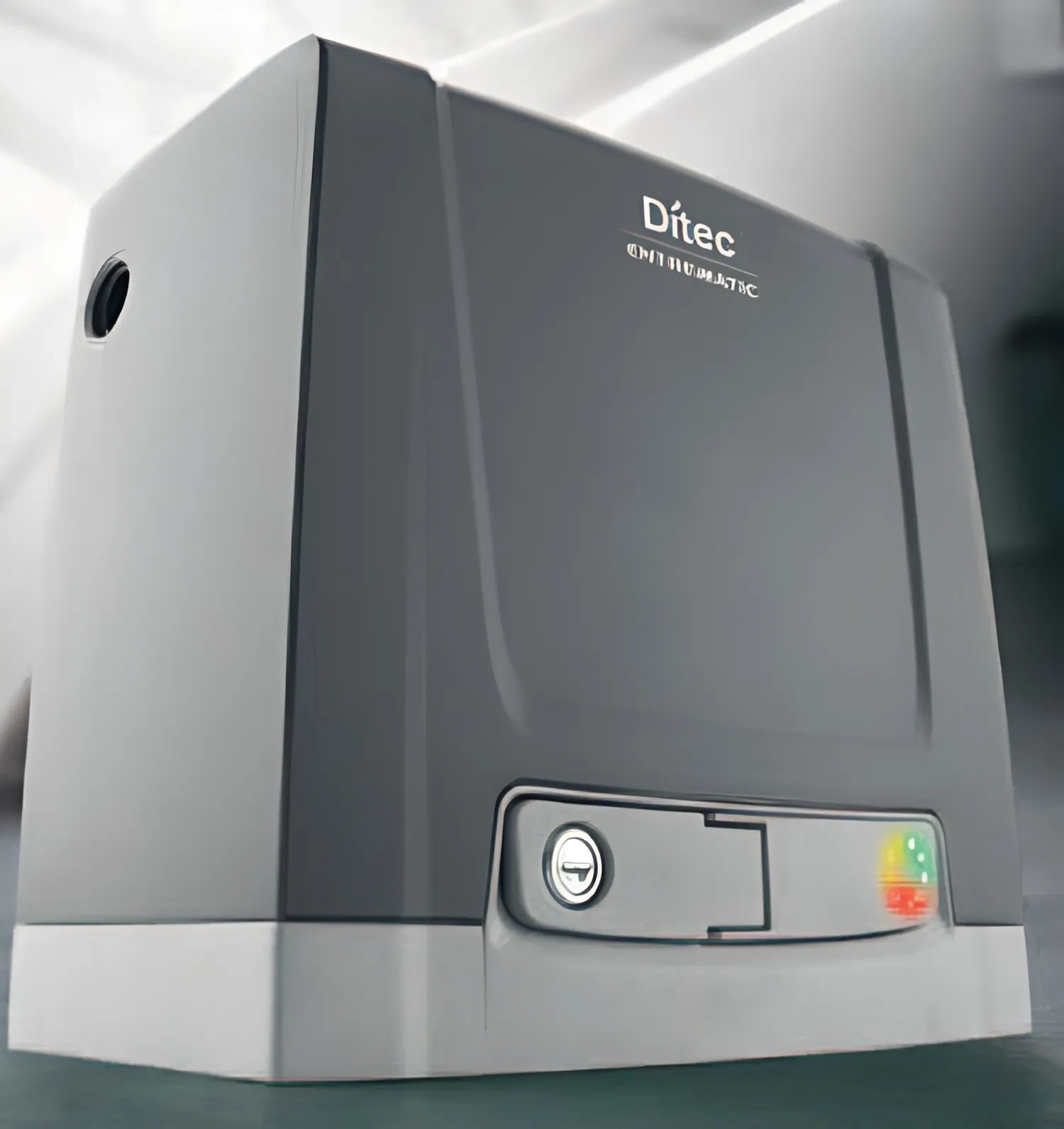

Ditec Set- Neos400 Sliding Gate Operator Upto 400 Kgs
Stroke control : Virtual encoder
Gate leaf weight : 400 kg
Maximum opening : 12 m
Service index : 4 - intensive
Intermittent operation : S2 = 30 min
S3 = 50%
Power absorption : 230 V AC 50/60 Hz
Motor power supply : 24 V DC
Power input : 1.2 A
Thrust : 400 N
Opening and closing speed : 0.1 - 0.25 m/s
Release system for manual opening : key - operated
Operating temperature : -20°C / +55°C (-35°C / + 55°C with NIO enabled)
Protection level : IP 24
Product dimensions (mm) : 335x210x307
