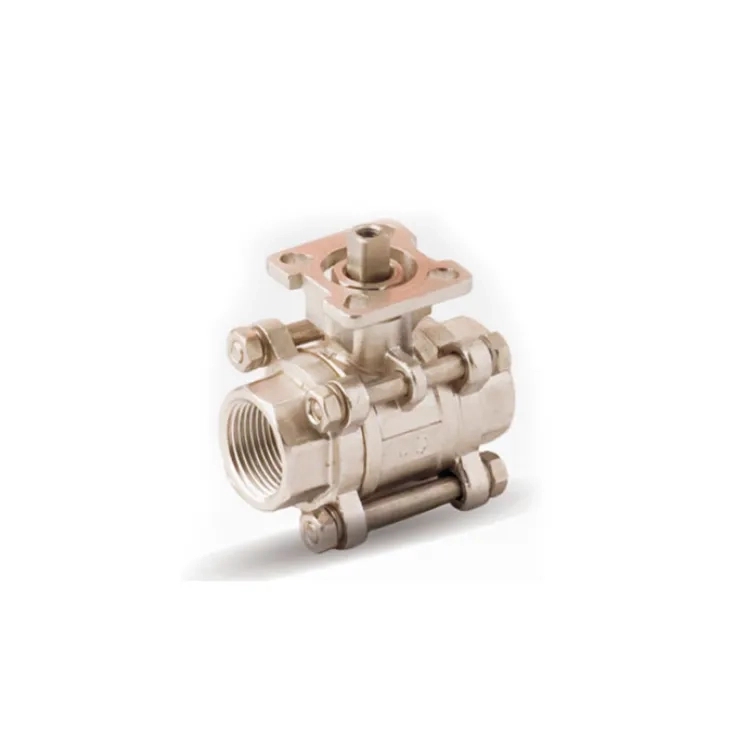

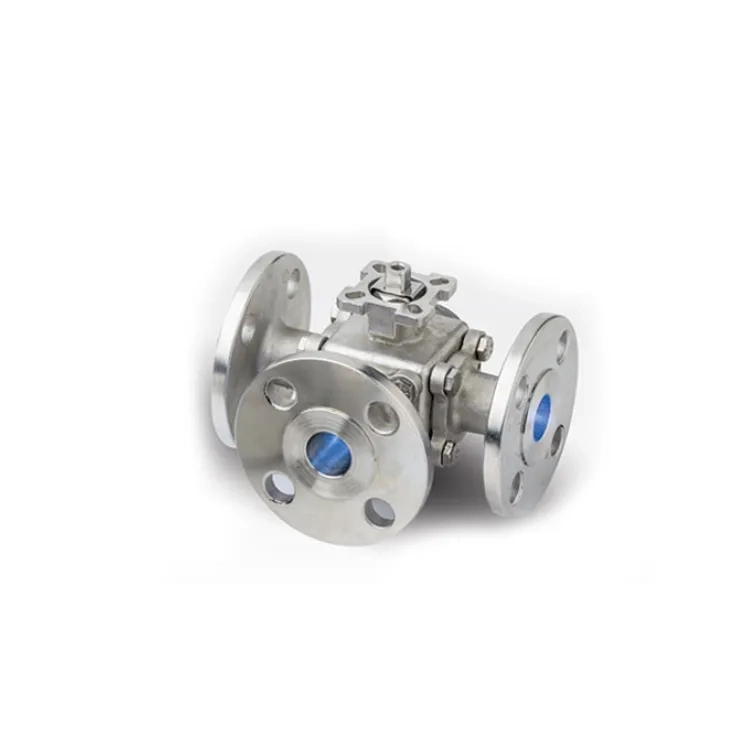

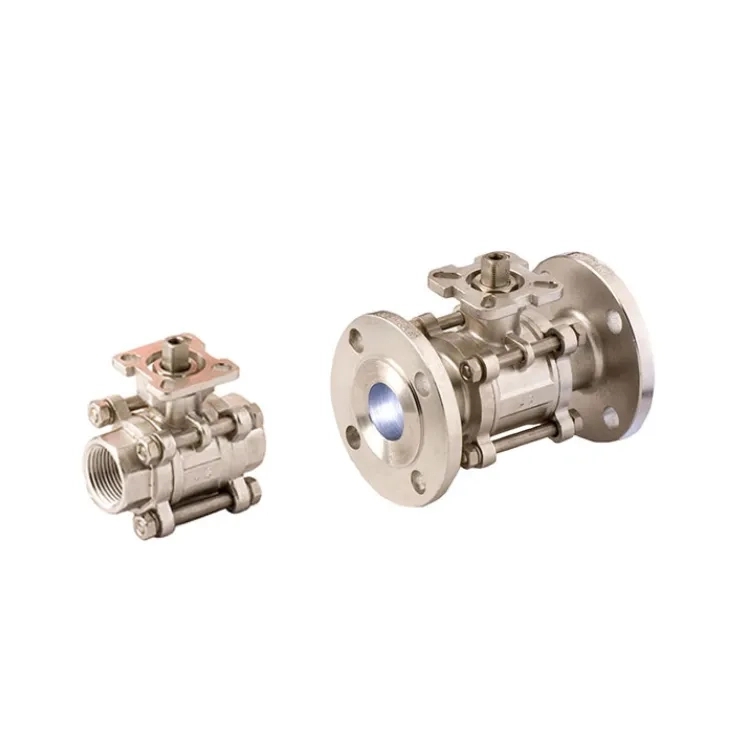

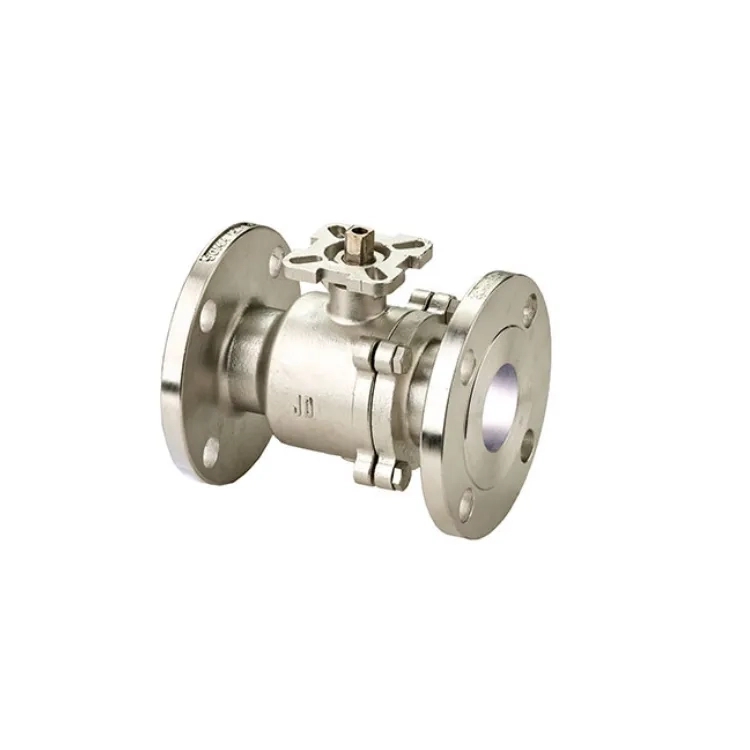

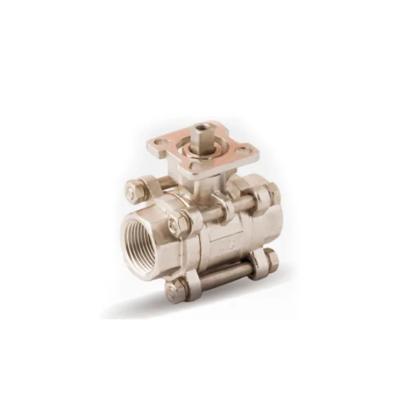

Jd Controls Mounting Pad Ball Valves

Ball valve accepts an actuator or gear box can be bolt directly on the mounting pad (as per ISO 5211) of the valve body. No. extra brackets/couplers are required. The bottom of the actuator is rest on the mounting pad of the valve. There are no external moving parts. The coupler/adapter is less subject to corrosion. An external bracket does not exist to create surfaces that may be untrue.

International Standard : Featuring an ISO 5211 Mounting Pad for direct mounting of Actuators and Gear Box on valve.

Strength of mount between : No brackets that can bend after installation valve/actuator

Safety : No pinch points

Compactness : Smaller/Shorter package takes up less space in pipe galley. Low profile

Actuator/Valve Stem : Shorter distance between valve/actuator allows alignment closer tolerance to minimize torque.

Modular Simplicity : No confusion as to how bracket bolts to equipments or how to install adapter.

Refer Catalogue for More Information
