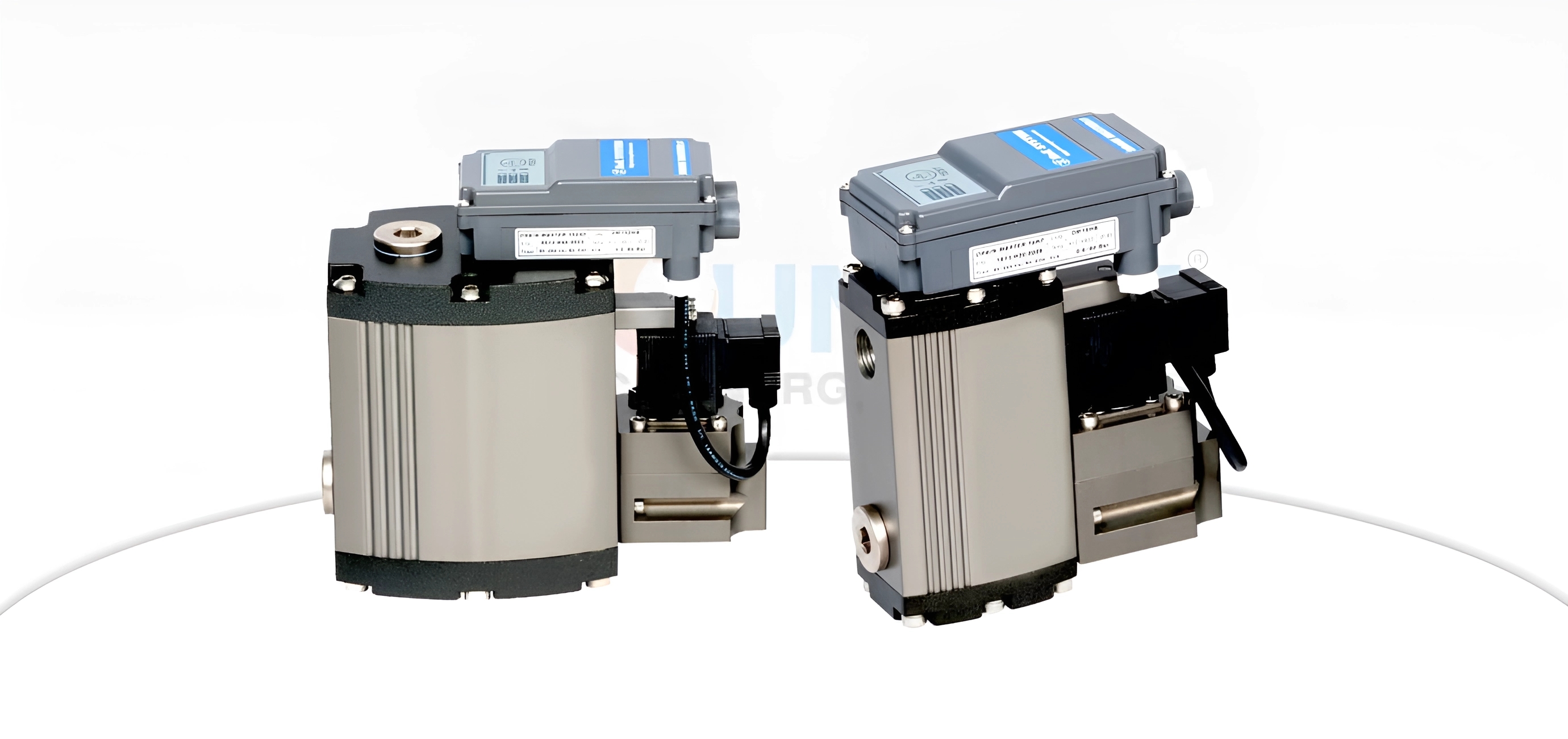

High Pressure Drain Valve With Zero Air Loss Auto

High-Pressure Drain Valve With Zero Air Loss Auto Technologically developed Zero Air Loss Solenoid Valve Type is primarily used for controlling the rate of flow in both fluid and air powered tools, motors and systems. Here, condensate collects in the container housing and valve remains closed and leak proof. As the container is filled to the upper or high-level sensor point on the solenoid valve lifts the plunger because of magnetic flux, which is generated by the activated coil.

Technnical Specifications:

Application Temperature:-25 to 50℃

Power: 110, 220Vac (±10%) 50~60Hz

Weight: 0.4kg Switching Temperature: On/+5℃ ~ Off/+15℃

Threaded Connection: G1/2”

Power Input: Pac < 125W

Material (Heating Cartridge): Stainless Steel

Cable Cross-section: 3 x 0.75mm²

Connecting Cable: PVC

220Vac/125W: Order Ref.: A DM 00-1

110Vac/125W Order Ref.: A DM 00-2

Operating Pressure (max): 60 bar

Features:

Air leakage is so little that the economic effect is excellent, and recovery of investment expenses is fast

Outlet diameter is large (Inside diameter 12mm) so there is no choking

All operations are automated so no settings required

Model varies from small to high-capacity according to the capacity of using a compressor

Self-cleaning mode automatically takes over in the event of a blockage which purges the valve

No maintenance is required

Refer catalogue for more information
