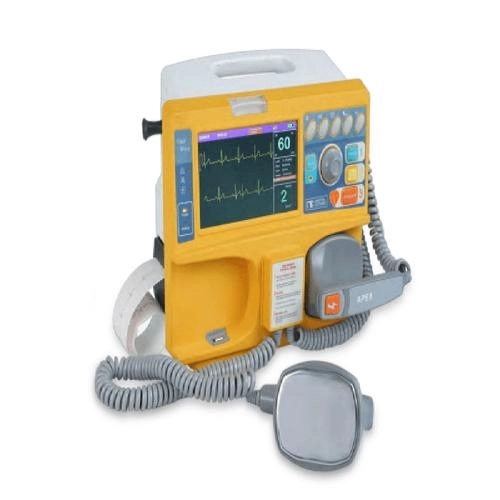

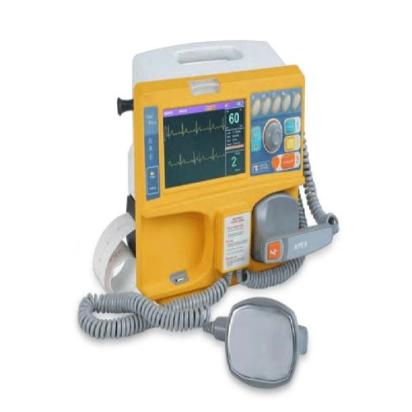

SI Surgical Defibrillator - Vital Wave

Features :

7" colour TFT display

Easy energy selection upto 270 joules

Less than 8 seconds for full charge 270 joules

More than 50 shocks on full charge battery

Event trend and storage upto 24 HRS

ECG acquisition via paddles & cable

Upgradable to spo2 & NIBP

Technical Specifications :-

Measuring Parameters :

Channel : 2 Channel

Electrode : 3/5 Leads

ECG Acquisition : Patient Cable and Paddles

Display : 2 Waveforms with HR and Joules selected

Lead : Lead I, II, III, aVR, aVL, aVF, V

Gain Selection : 5/10/15/20 mm/mv

Sweep Speed : 12.5, 25 or 50 mm/sec

Heart rate range : 30-240 bpm

Heart Rate Accuracy + 2 bpm

Frequency Response 0.05 to 40 Hz

CMRR : >100 dB

Input Impedance : >100 M Ohms

Recorder :

Type : High Resolution thermal array recorder

Printing Speed : 25 mm/sec

Printer Paper Size : 57 mm x 20 Mtr.

Details on print : HR,ECG w/f along with energy delivery, Date, Time, Patient Details (ID, name, age, sex), Joules selected, Sweep speed and Gain

Display :

Type : Color TFT display

Size : 7" Diagonally

Resolution : 800 x 480 Pixels

Electrical :

Power Input : 110-240 V AC, 50 Hz

Battery Rating : 14.8 V/4400 mAh, Li-Polymer

Charging Time : 8 Hours

Operating Time : 40-50 shocks (270 joules) or more than 3 Hours monitoring without printing

General :

Weight : 5.4 Kg

Dimensions : 403 (L) X 152 (H) X 324 (W) mm

Working temperature and humidity : 0-40 deg. cel. & up to 90% non condensing
