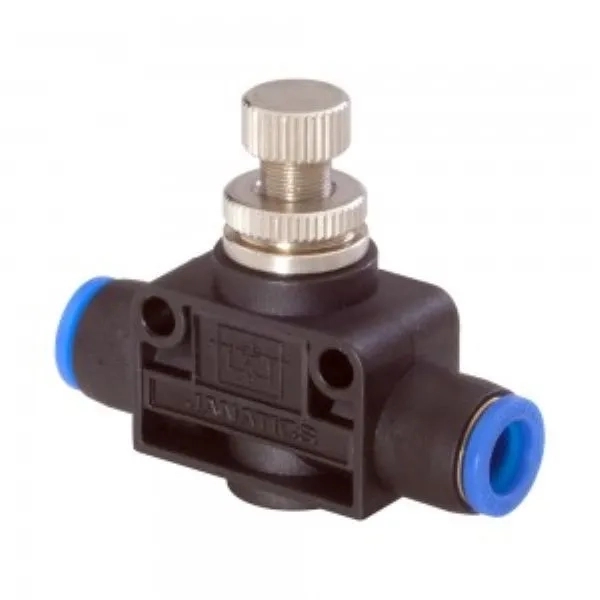

Janatics Flow Control Valve - Inline Type

GR2 series (Sizes : Ø4, 6, 8, 10 & 12mm)

Fine regulation of air flow

Elegant design and finish

Available sizes : Ø4, 6, 8, 10 & 12mm

Function & Application:

Function: These valves allow controlled flow of air in one direction and free flow in the other direction.

Application: These valves are used to control the speed of the pneumatic cylinder

Type: Reversing type

Model: GR011

Medium: Compressed air - Dry / Lubricated

Max. operating pressure: 10 bar

No. of needle rotations: 8

Ambient temperature: -10° to +60° C

Medium temperature: +5° to +50° C

Materials of construction: Brass, Acetal, Nitrile

Applicable tubes: Nylon, Polyurethane

Refer Catalogue For More Information
