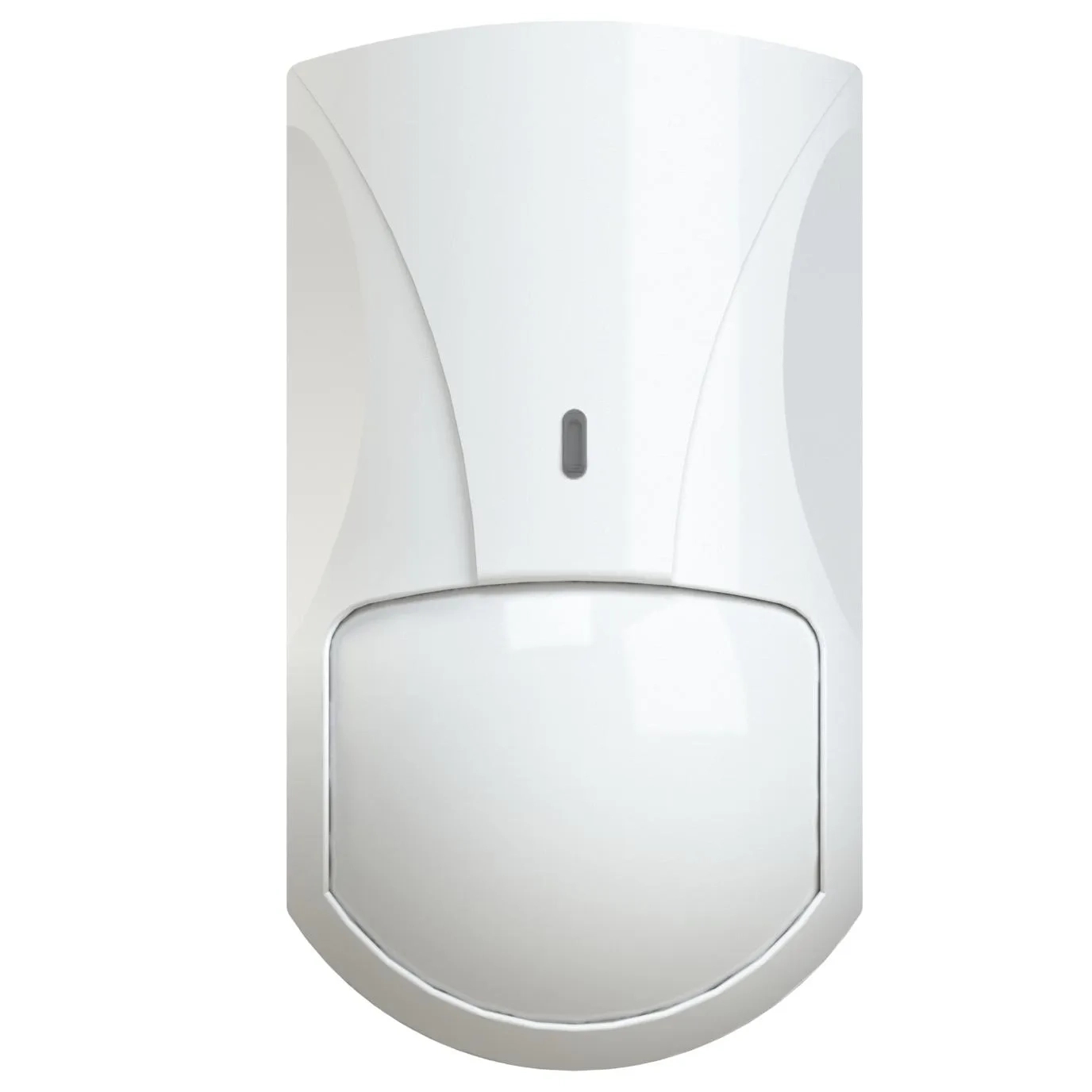

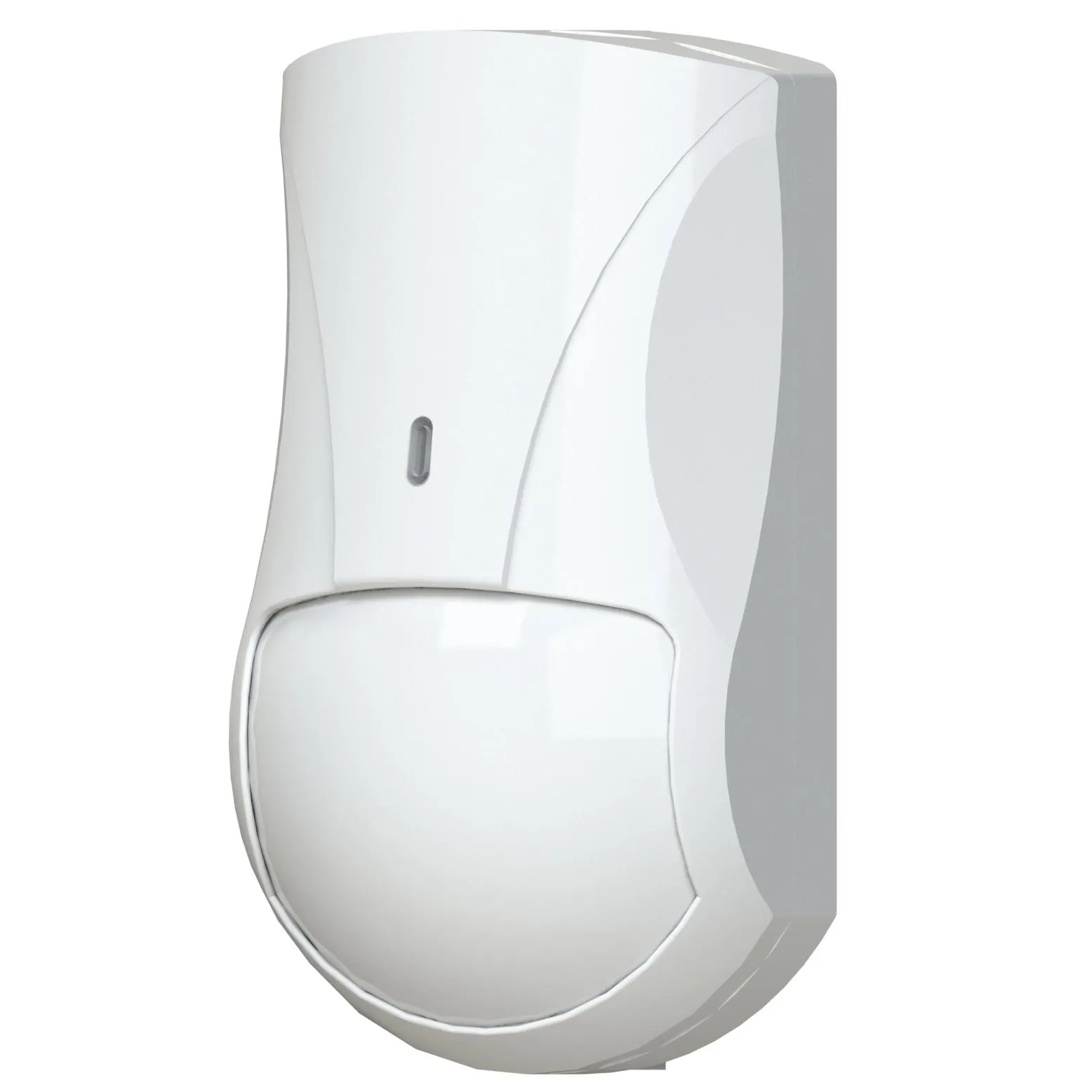

Rielta Foton-15A - Passive Infrared Sensor

Passive infrared detector Foton-15A.

Features:

Long detection range

Detector is powered via the loop

Tamper output

Swivel bracket included

Alarm output: Short circuit mode (SC) – Alarm signal is generated by increase of current consumption. Open circuit mode (OC) - Alarm signal is generated by decrease of current consumption

Contents of the kit:

Passive infrared detector Foton-15A - 1 pc.

Bracket.

Operational documentation

Code: 00000009292

Pet immunity: No

Voltage: from 9 to 72 V

Current consumption: from 2 to 15 mА

Temperature range: from -30 °C to +50 °C

Protection class: IP41

Dimensions: 126х70х55 mm

Installation height: 2,3 meters

Maximum detection distance: 20 meters

Case opening control: Yes

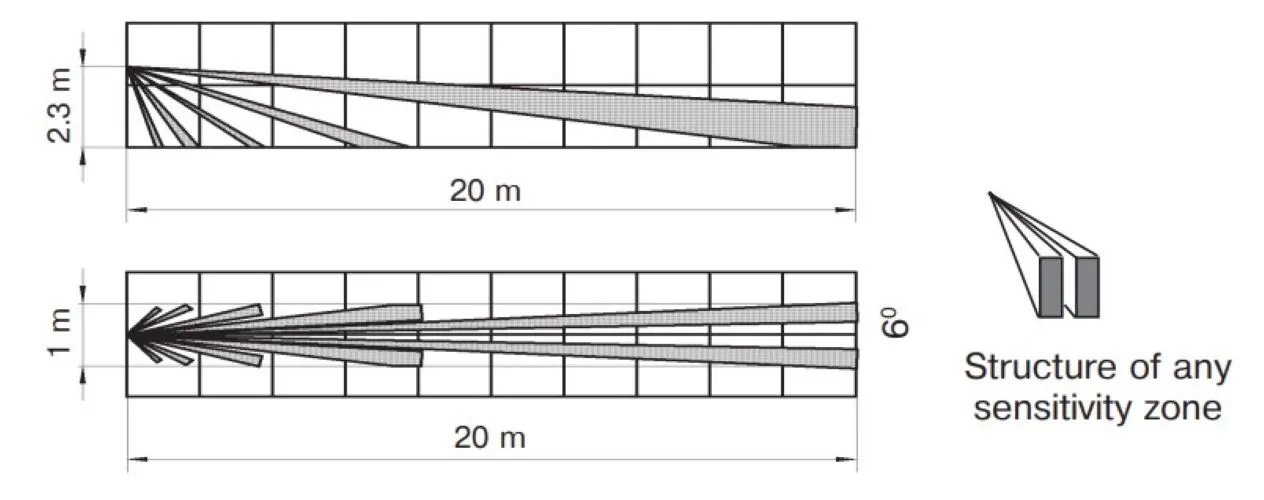

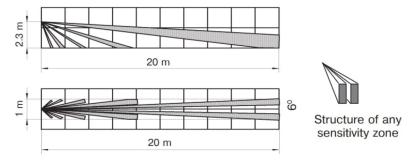

Detection zone: Linear
