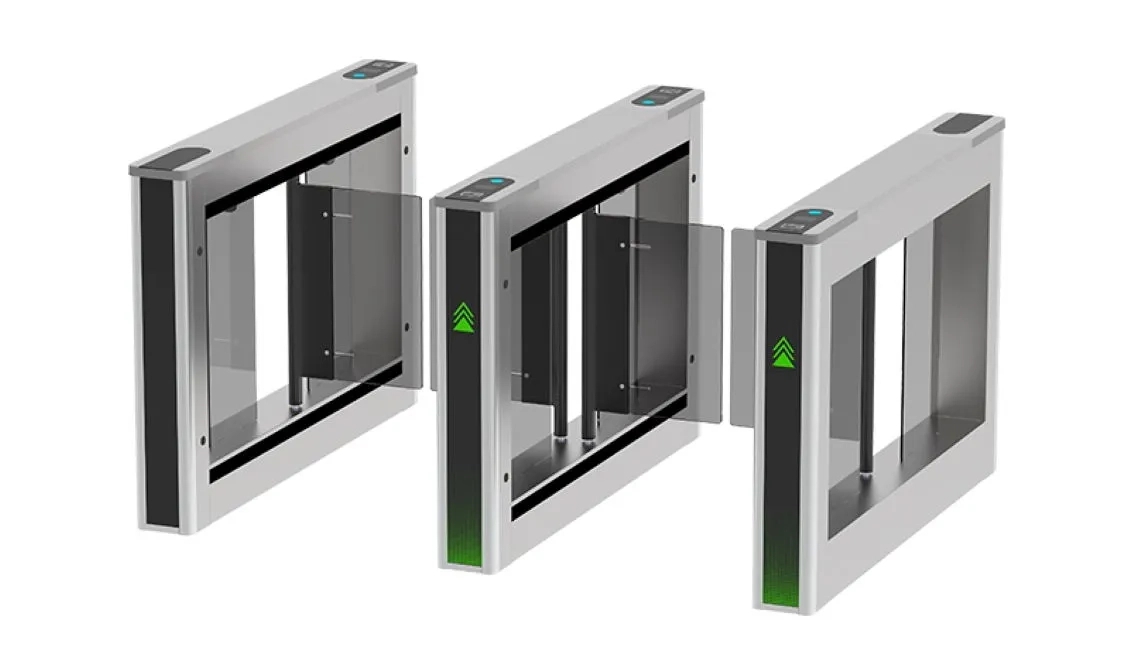

Zk Teco Saturn-S2000 Series - Swing Barrier Turnstile

Unveiling the ZKTeco Saturn-S2000, an innovative swing barrier turnstile designed for an unparalleled passage experience. The Saturn-S2000 offers two models (S2000 and S2200). Its chassis is mainly made from stainless steel material(SUS304), providing an IP54 protection rating that ensures it can withstand water and dust. Also, Saturn-S2000 is equipped with a clutch to enhance security.

Parameters:

Model Name: Saturn-S2000,Saturn-S2200

Audio Indicator: Internal speaker

Barrier Material: Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required.

Barrier Movement: Swing

Chassis Colour: Gray (Standard)

Chassis Material: Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column)

Clutch: Equipped

Controller: Compatible with C3 / InBio Series or 3rd-party controller

Credential Options: Under mount RFID reader: (support model: Pro ID Series, KR Series),Under mount fingerprint reader: FR1200 / FR1500S

Dimension with Packing (L*W*H): Saturn-S2000: 1580 * 340 * 1270 (mm) (2pcs)

IR Sensors: 12 pairs (standard) ;18 pairs (Optional)

Ingress Protection Rating: IP54 (water & dust proof)

Motor: DC brushless motor

Movement Speed: Average 1s per movement (Adjustable open/close timing)

Packing Material: Wooden

Safety Features: Voltage free contact input for fire alarm fail state

Security Features: Anti-tailgating, anti-pinch

Security Level: medium

Supported Software: ZKBio CVSecurity

Visual Indicator:

Top LED indicator: Blue=Door closed/stand by,Green=Door opening,Red=Door closing/alarm

Refer Catalogue for More Information.
