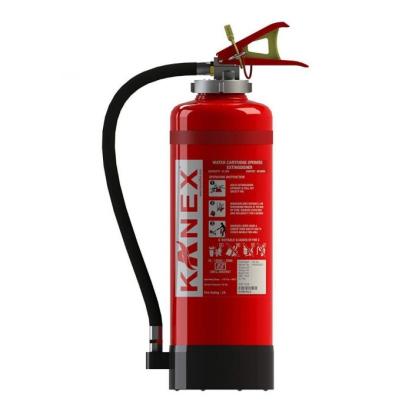

Kanex 9 Ltr Water Fire Extinguisher - Stored Pressure

Key Features:

Co2 gas cylinder confirms to IS: 4947.

Brass chrome plated valve

Plastic Lining done internally and externally pure polyester powder coating

Best available Fire ratings in its class.

Latest BIS approved – (IS 15683:2006) and ISI marked.

More flexible EPDM hose with less prone to cracks.

Tamper seal to detect any mishandling.

Anti-corrosive Phosphate treatment of Cylinders.

Large loop stainless Pull pin.

Lever lock for better handling.

Bar Code labeling for better traceability.

Easy to maintain, recharge & service.

MODEL: KFWSRQ-9

Capacity: 9 Ltr

Design: Hose & Nozzle

Fire Rating: 3A

Height (Approx.): 585 mm

Diameter (Approx.): 180±10 mm

Average Discharge Time: 35 Sec.

Average Range of throw: 6 m

Average Discharge: 95%

Operating Temperature: +5 °C to +60 °C

Service/Max. service/Test Pressure: 14 / 16 / 35 bar

Expelling Agent: Co2 gas

Co2 gas cartridge: 60 gm

Full Weight (Approx.): 14.8 kg

Empty Weight (Approx.): 5.8 kg

Shipping Weight (Approx.): 15.3 kg

Packing Standard: 1 in 1- 24.75"X8"X8”

Mounting Bracket: Wall bracket

Approvals: BIS

Warranty: 5 Years Warranty

Refer Catalogue For More Information
