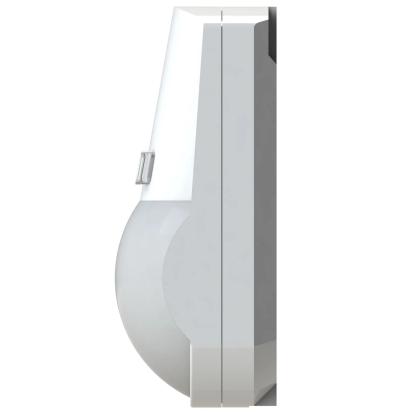

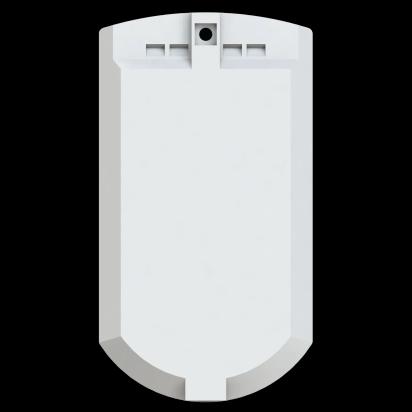

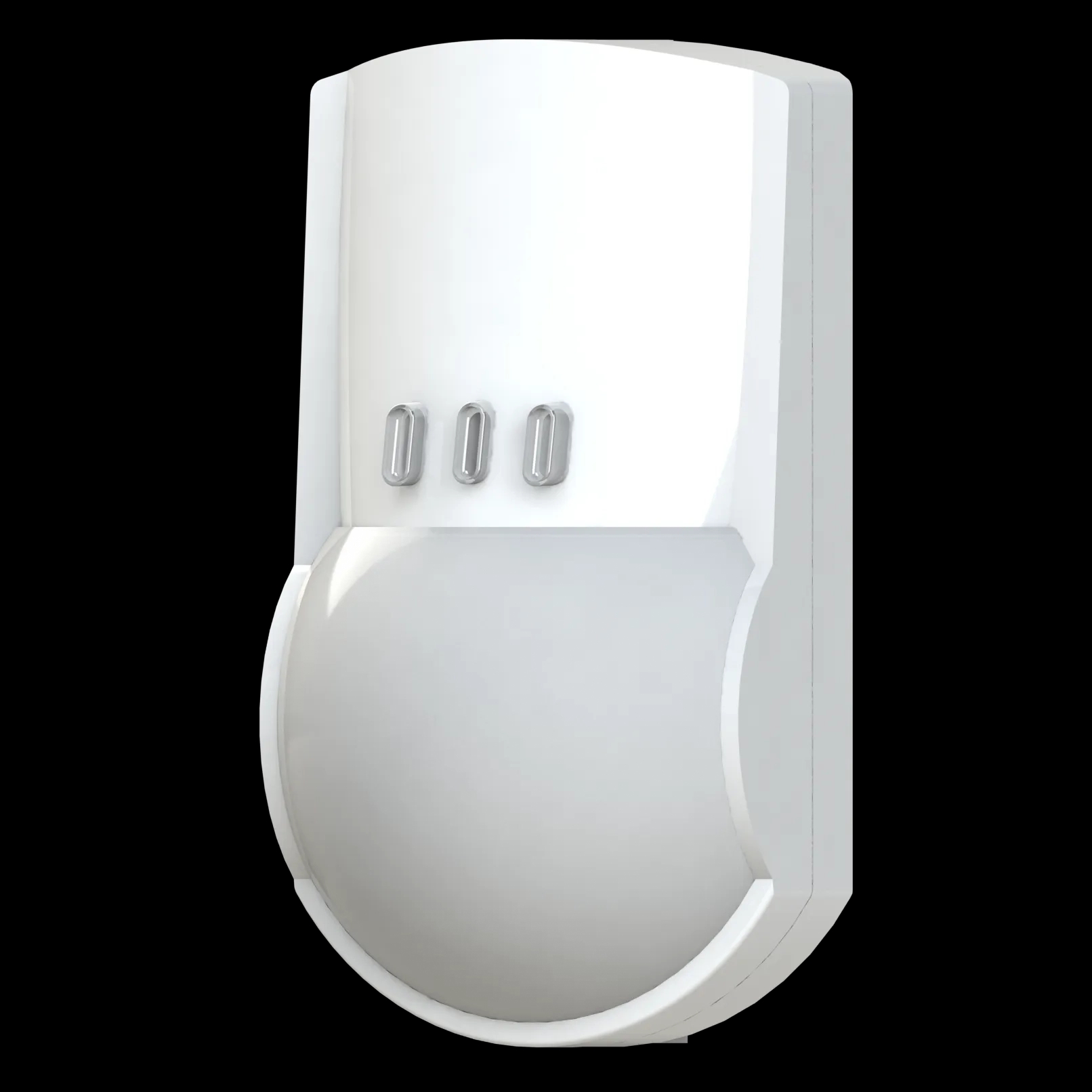

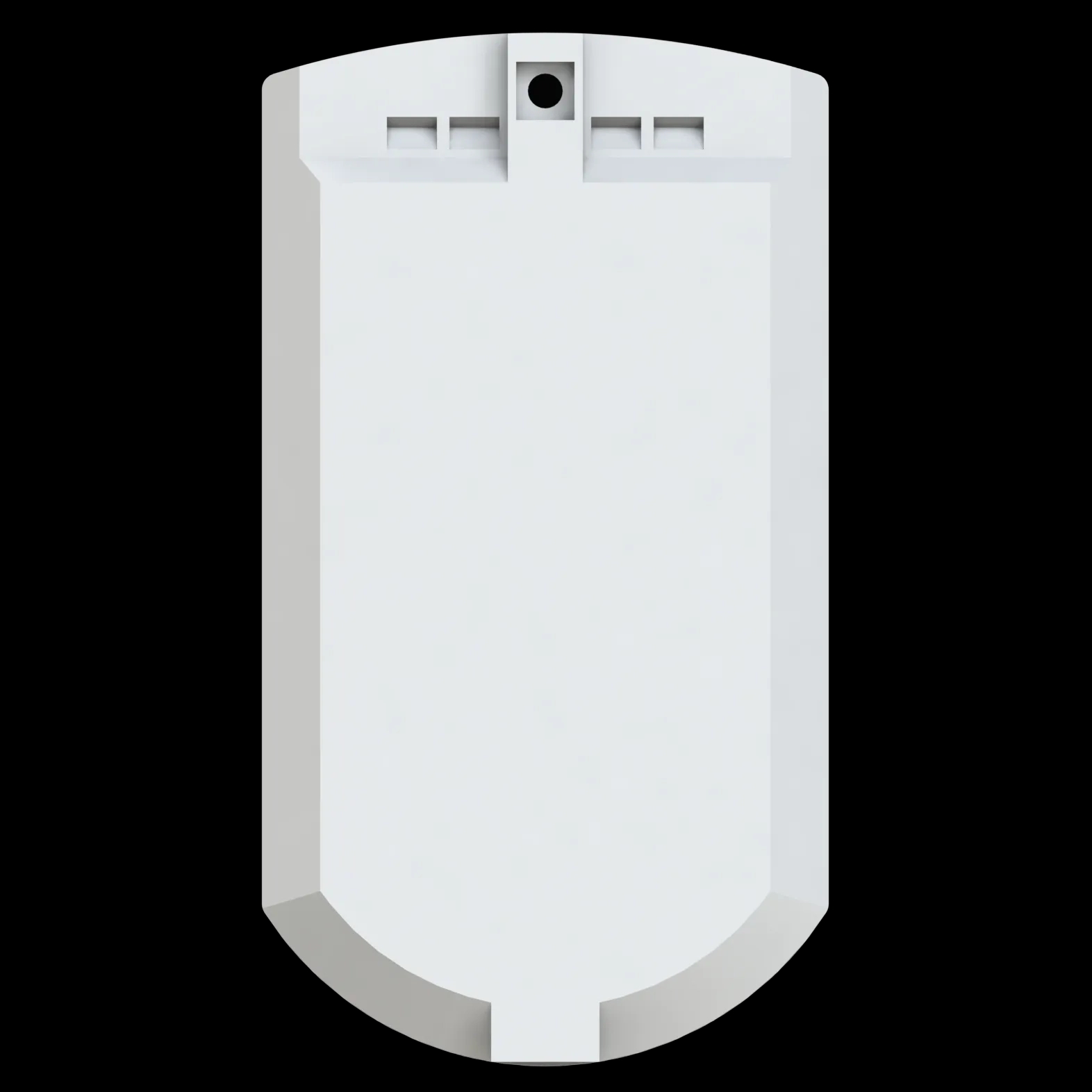

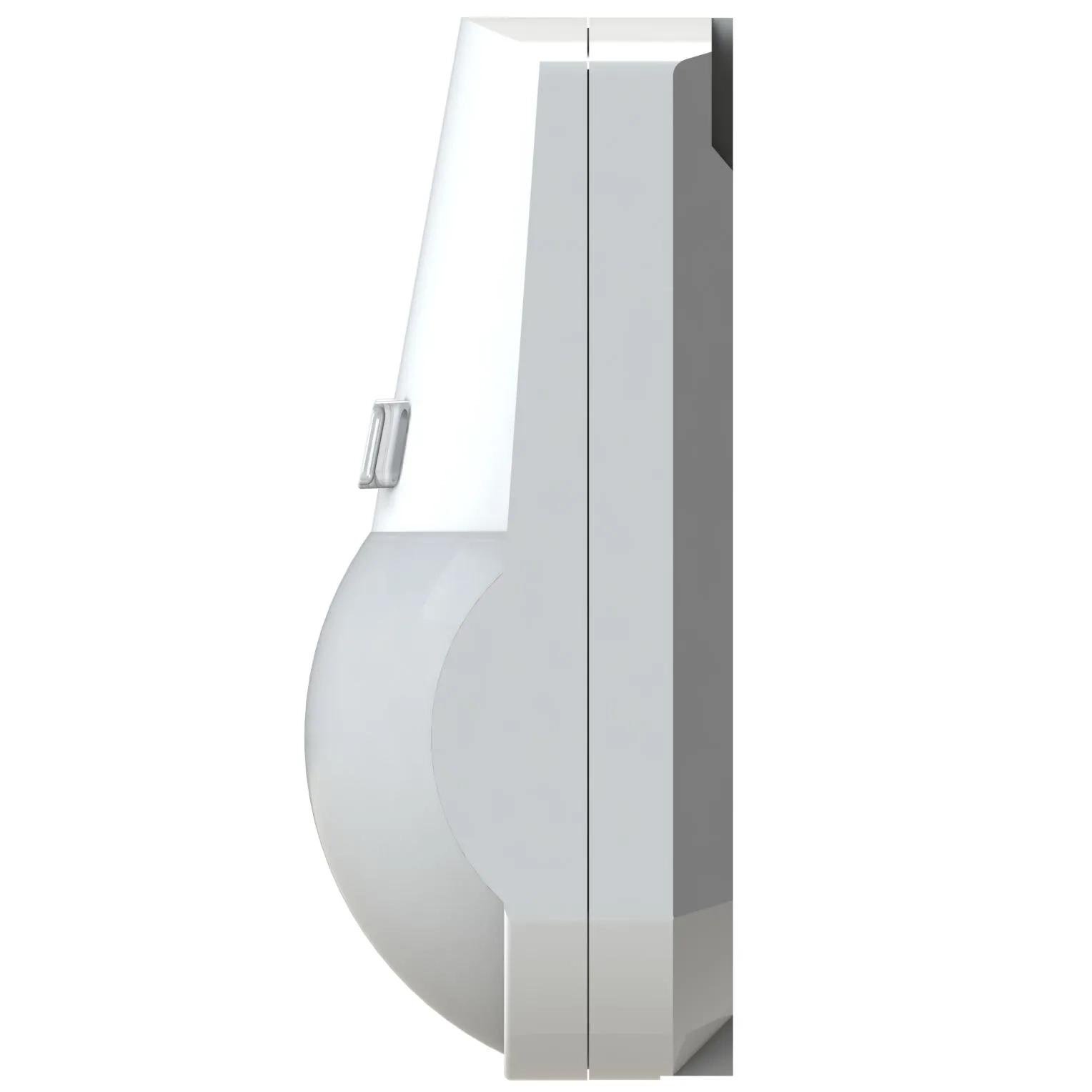

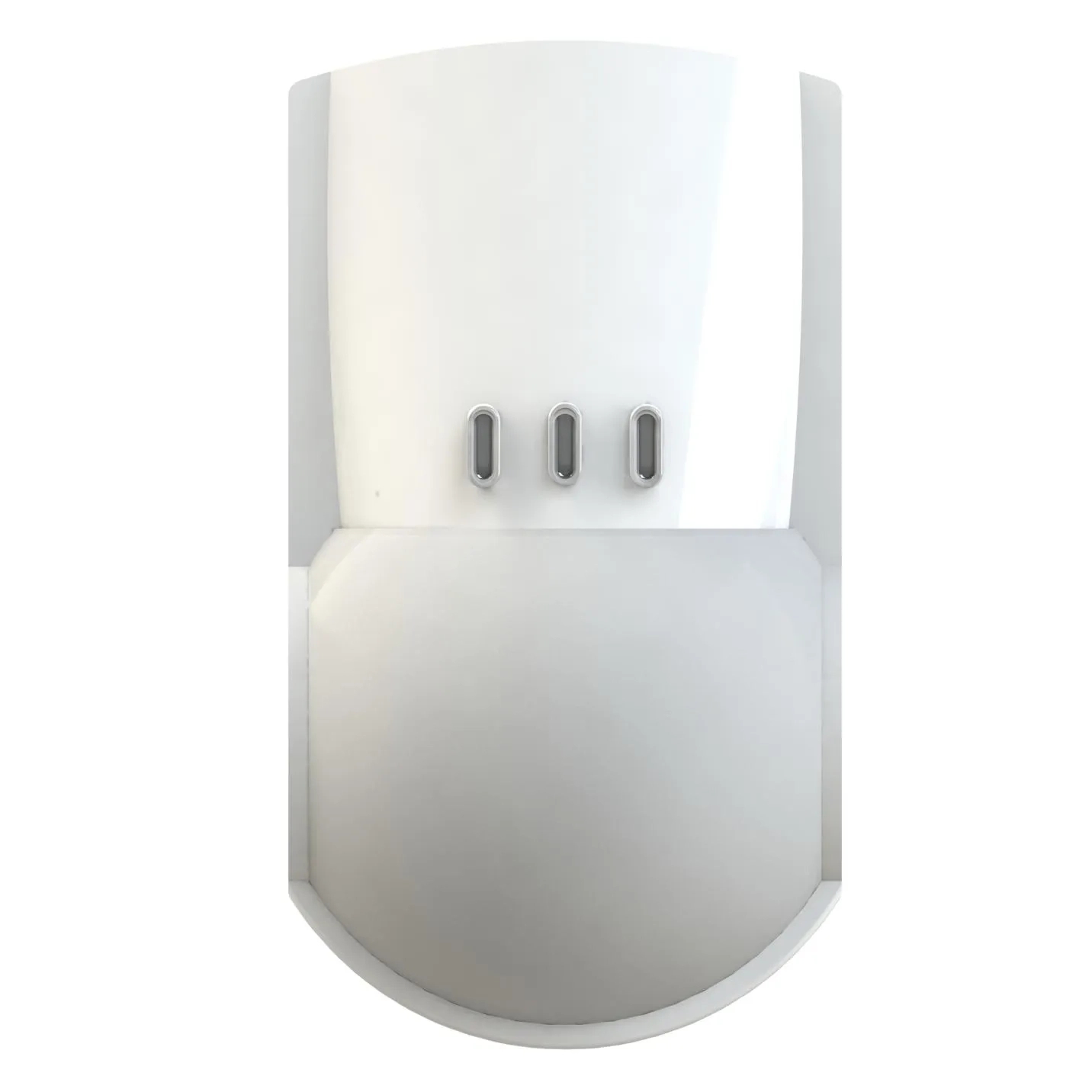

Rielta Foton-16А - Passive Infrared Sensor

Passive infrared detector with anti-masking Foton-16A.

Features:

Long detection range

Detects PIR lens masking

Digital temperature compensation

Alarm memory

Tamper output

Swivel bracket included

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector with anti-masking Foton-16A - 1 pc.

Bracket.

Operational documentation

Code: man00002493

Pet immunity: No

Voltage: from 9 to 15 V

Current consumption: 35 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 126х70х55 mm

Installation height: from 2,3 to 3 meters

Maximum detection distance: 20 meters

Case opening control: Yes

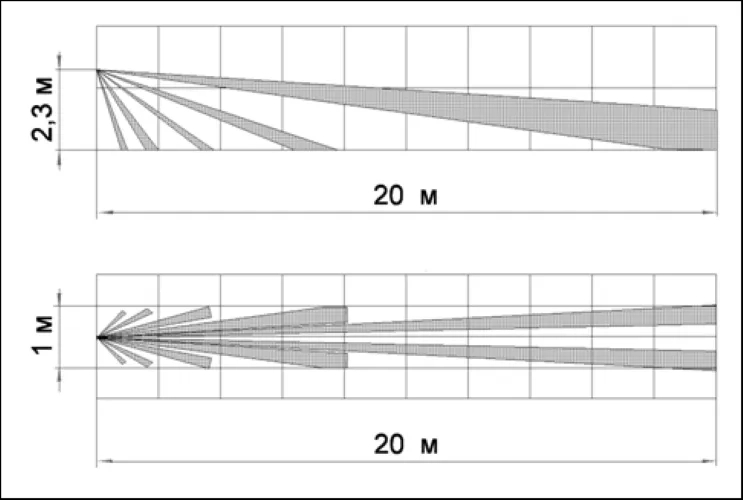

Detection zone: Linear

Refer Catalogue For More Information
