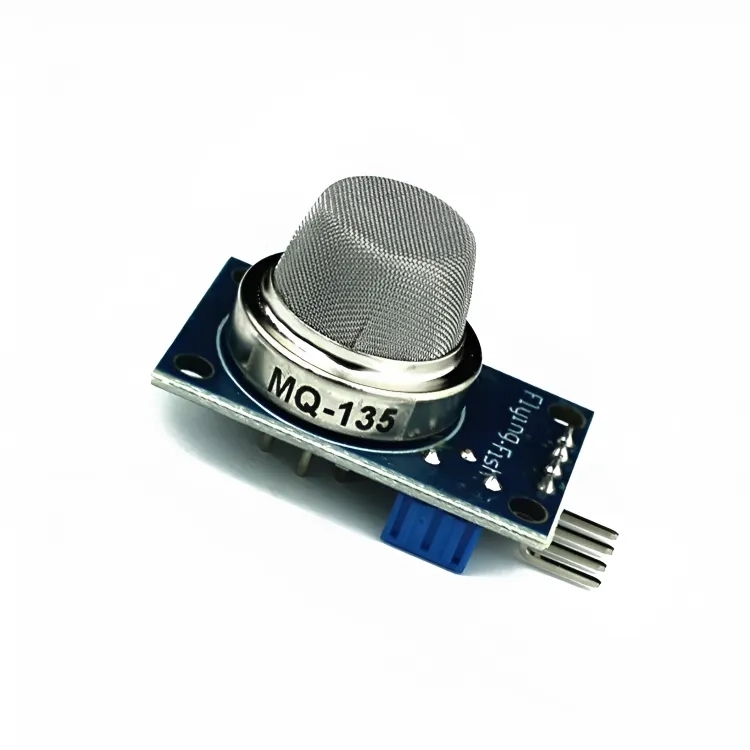

Quartz Components MQ135 Air Quality Gas Sensor Module

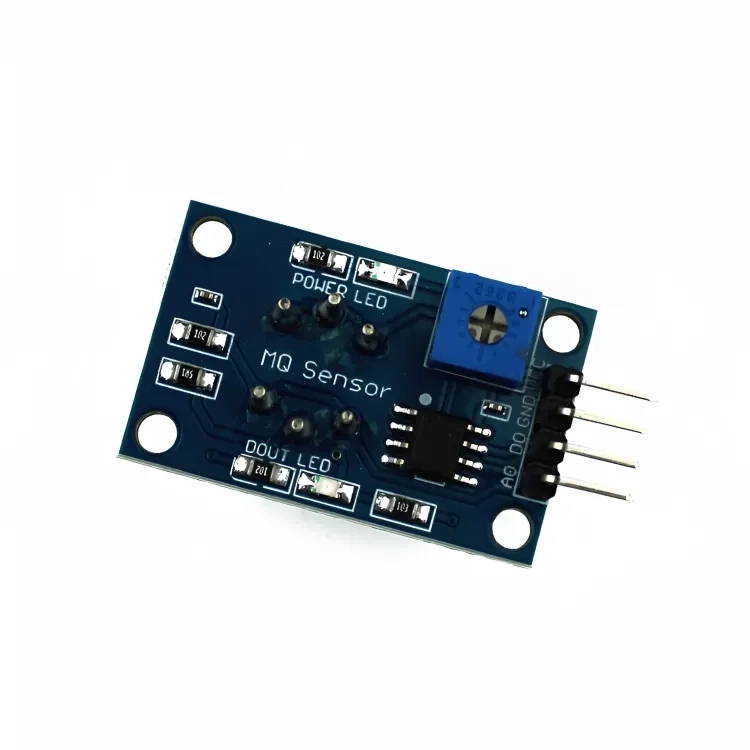

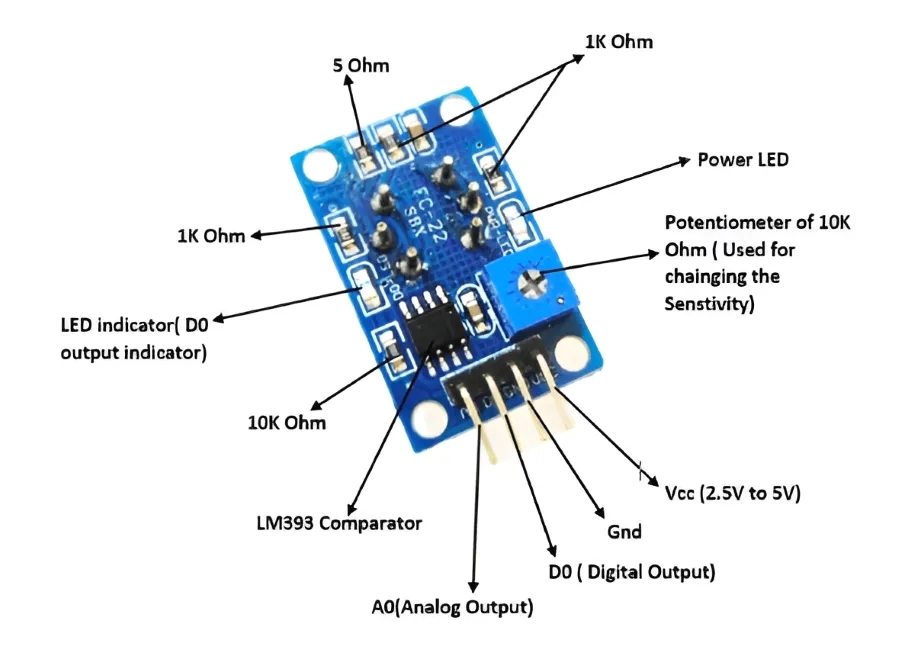

The MQ-135 Gas sensor can detect gases like Ammonia (NH3), sulfur (S), Benzene (C6H6), CO2, and other harmful gases and smoke. Similar to other MQ series gas sensor, this sensor also has a digital and analog output pin. When the level of these gases go beyond a threshold limit in the air the digital pin goes high. This threshold value can be set by using the on-board potentiometer. The analog output pin, outputs an analog voltage which can be used to approximate the level of these gases in the atmosphere. The MQ135 air quality sensor module operates at 5V and consumes around 150mA. It requires some pre-heating before it could actually give accurate results.

SKU: MOD-QC0027

Technical Specifications of MQ135 Gas Sensor :

Operating Voltage : 2.5V to 5.0V

Power consumption : 150mA

Detect/Measure : NH3, Nox, CO2, Alcohol, Benzene, Smoke

Typical operating Voltage : 5V

Digital Output : 0V to 5V (TTL Logic ) @ 5V Vcc

Analog Output: 0-5V @ 5V Vcc

Further Resources :

Datasheet of MQ135

MQ-135 Arduino Library

Interfacing MQ135 with Arduino
