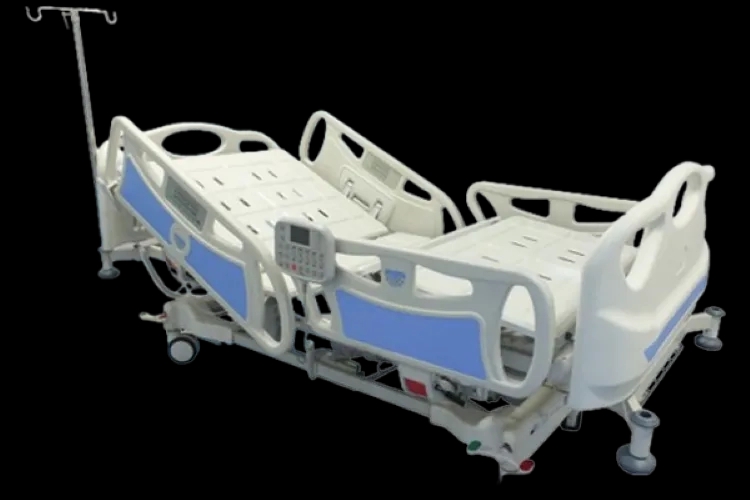

SI Surgical Hospital Beds - Alex Tilt

ICU Electric Bed 10 Function:

Advance linear actuator system [05 pcs motor, 01 pc control box, 01 pcs handset & 01 pcs Nurse control system]

Overall approx. size - 82"L x 39"W x 18" - 29"H

Mattress platform size – 76’’L x 35"W

Positions obtained by hand remote & nurse control system with display

Bed mounted on 5" imported castors with central locking system.

S.S. telescopic I.V. rod provision for 4 locations.

SS heavy duty IV pole

Integrated urine bag holder

Manual CPR liver for backrest.

Four corner safety molded buffer 100mm diameter.

Separate wired hand set control for patient and attendant.

Finish: pre-treated nine tank hot phosphate & epoxy powder coated.

Electrically operated lateral tilt system (both side)

Four pieces individual imported swing type side railings with degree protector, abs molded.

Imported abs molded head and foot panel

Framework made-up of M.S. tubes thickness 1.6mm

4 section top sheet made-up of perforated ABS molded

Base cover with Central locking system

Weight measuring system by LCD display

Nurse control system

Under bed light

Bed extension is 200mm towards the ankle

One touch CPR

Battery backup up to 1 hour
