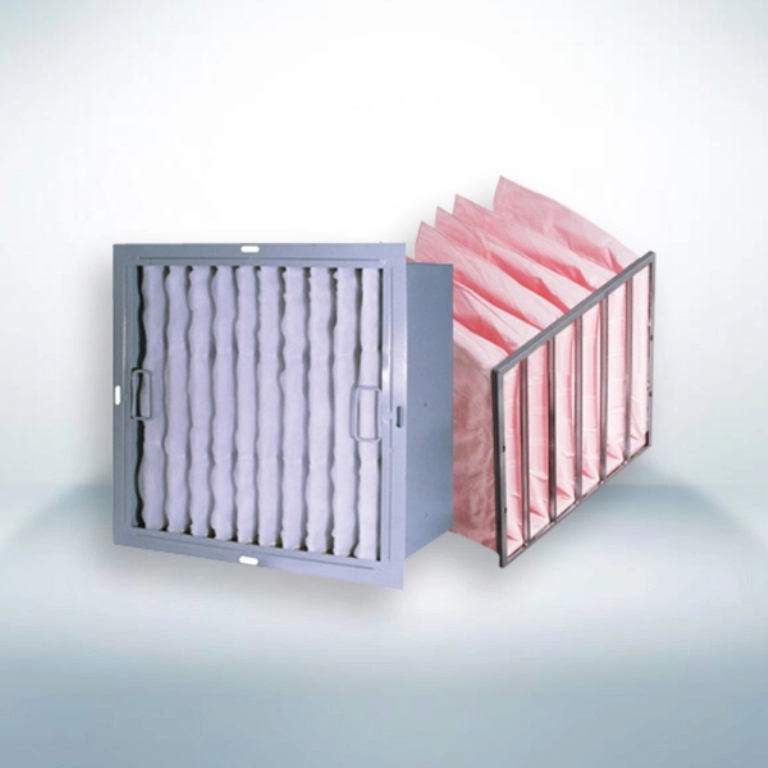

Sunfil Fine Filter

Fine filters, also called Microvee filters, filter particles down to 5 or 3 microns with 95% efficiency. Available in pleated and soft bag forms, they are ideal for industrial and class applications. These filters can be installed in AHUs or mounted in banks. They use non-woven synthetic media with synthetic fibers bonded by PU resin. The media, sandwiched between two HDPE mesh layers, ensures effective filtration and durability.

Filter Grade : Fine Filter 95% Efficiency @ 5 Microns F5 Fine Filter 95% Efficiency @ 3 Microns F7

Filter Size in mm : 610 x 610 x 300, 610 x 610 x 150, 510 x 510 x 150, 510 x 510 x 300

Casing Type : Flange

Air Flow Capacity in CFM : 2000, 1000, 675, 1700

Initial Pressure DROP in mm WC : 7, 12

Number of Pleats : 10, 8

Construction & Supports :

Large number of pleats enhances filtration area and efficiency

Filters are 100% leak proof

Media pack securely fixed to the periphery of the enclosure frame

PU hardener used for secure fixing
