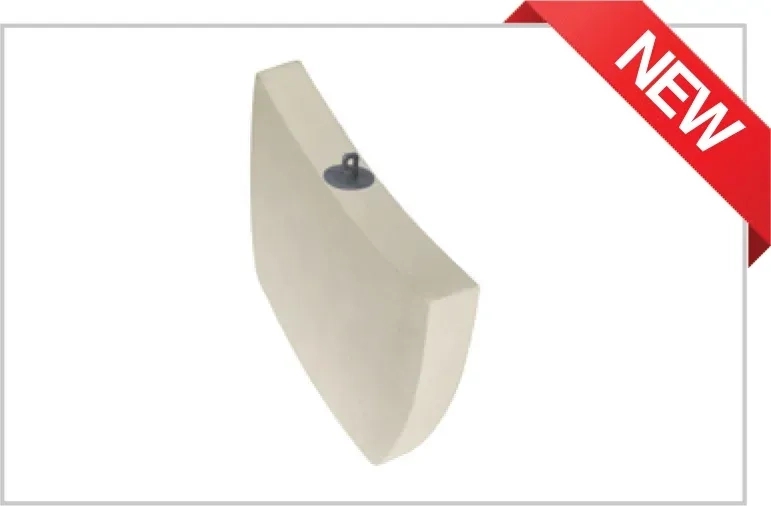

Anutone Soft Subtex Wave Nubby Shapes - Baffle Ceiling

Subtex Wave shaped in elevation

Wave Shapes Grafix is an option

Makes for incredibly interesting designs and awesome interiors

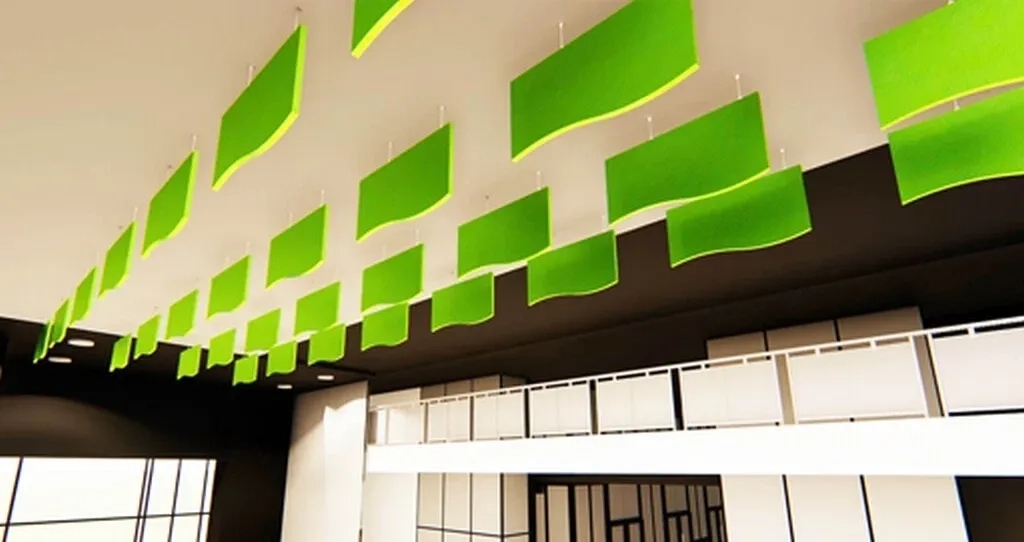

Subtex Wave Nubby Shapes Colours factory-painted lime green for the double height lobby of a luxury condominium

Type: Discrete

Finish: Textures

Core: Glassfibre

Thickness (mm): 40

Size (mm):

600x600

1200, 1000

1200 dia

Density (Kg/m3): 120~140

Weight (Kg/m2): 4.8~5.6

Fire (Class): 1 & P

NRC: 0.9

Thermal (W/mk): 0.07

Climate (0C, RH): 40, 95

Light (%): Print dependant

Green (VOC, RC%): Low, 35

Warranty (Years): 5

Maintenance: Vacuum, Dry-Wipe

Install Accessories - Ceiling: A-Chain hardware or Suspension Kit consists of Corkscrew, Levelling hook and Hangar wire by Anutone. 2 kits @ 500

1000mm centres recommended for baffle height 600

1200mm respectively.
