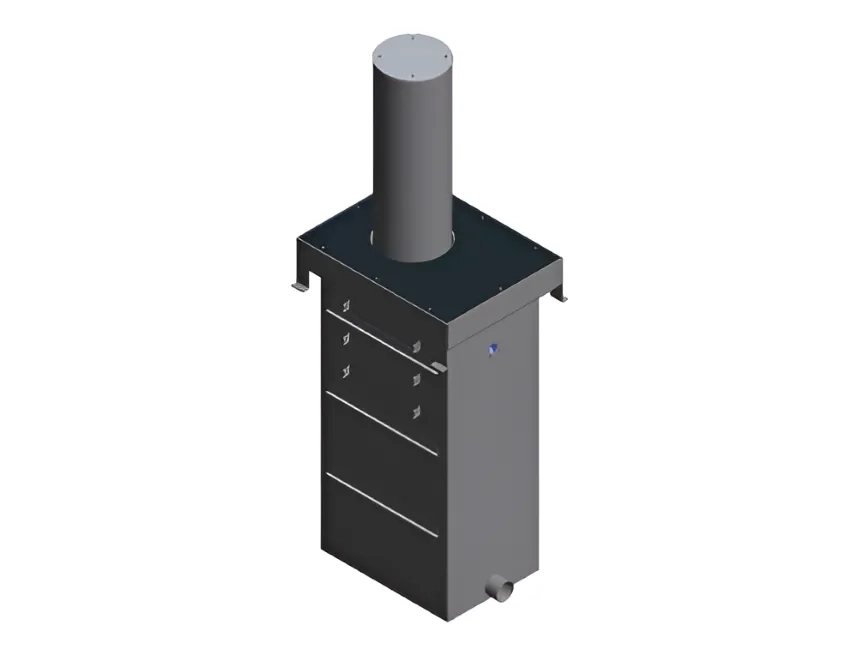

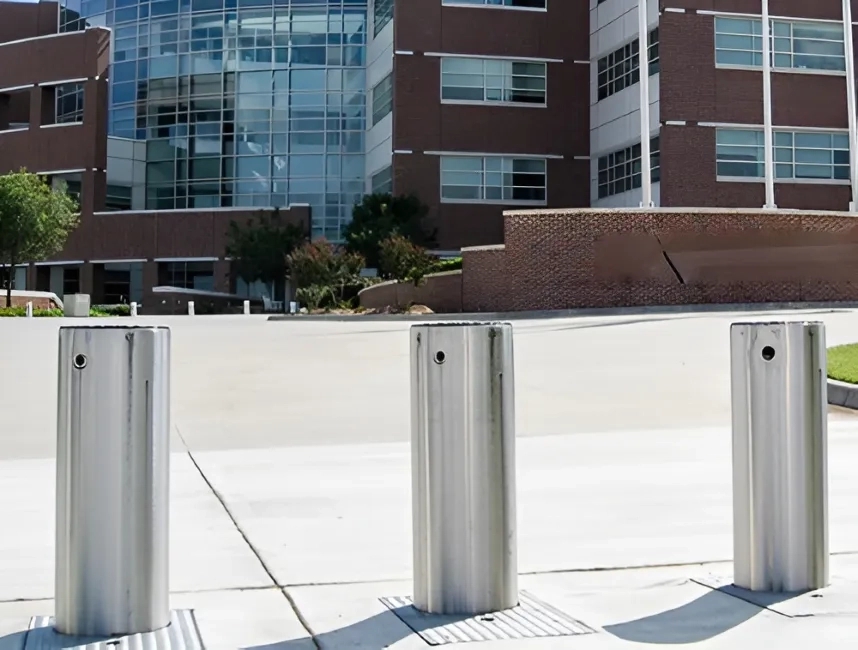

Secure K4 Crash Rated Automatic Bollards (M30) - Arjuna 400 (SAB 400)

The M30 Automatic Bollard is a high security, retractable rising bollard that preventing unauthorised vehicle access, while allowing free pedestrian movement. It is designed according to internationally accepted standards such as ASTM, DOS, PAS68, and IWA14. This bollard also offers an emergency fast operation mode with a response time of 1.5 seconds.

K4 (M30)

Technical Specification :

Crash Rating : K4 (M30)

Blocking Height : 700 mm / 1000 mm

Blocking Diameter : 220 mm / 275 mm

Installation Depth : Approx. 1500 mm

Drive Unit : Hydraulic / Pneumatic

Power : 3-phase 400VAC 50Hz

Opening/Closing Time : 3–5 Sec

Safety : Line of Photocells, Loop Detectors, Microwave Radars (SMR 40)

Electrical Cabinet Unit : In separate cabinet

Operating Temperature : -30°C to +60°C (optional +70°C)

Optional Equipment : Control console, PLC, Hydraulic Power Unit and others
