Pennar Industries Bi-drum Boiler

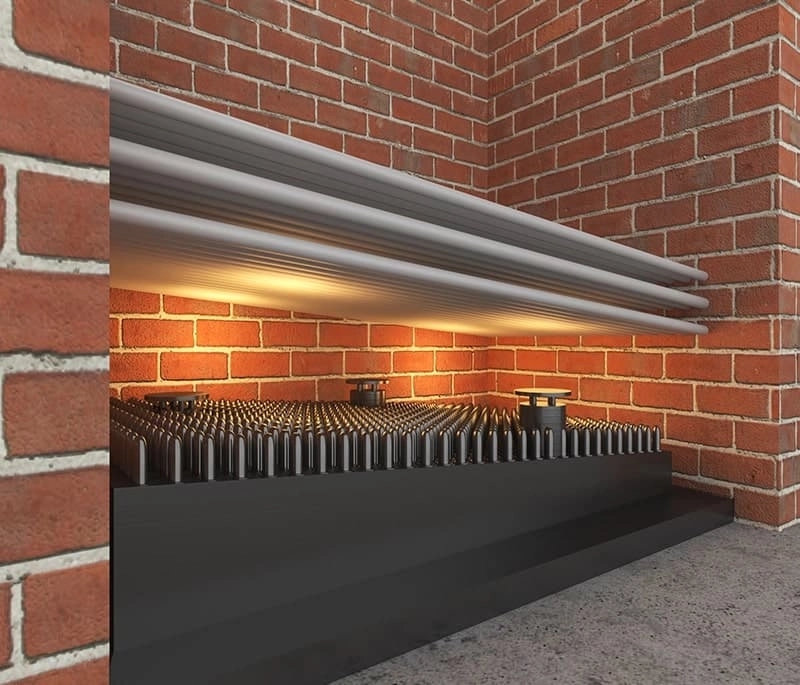

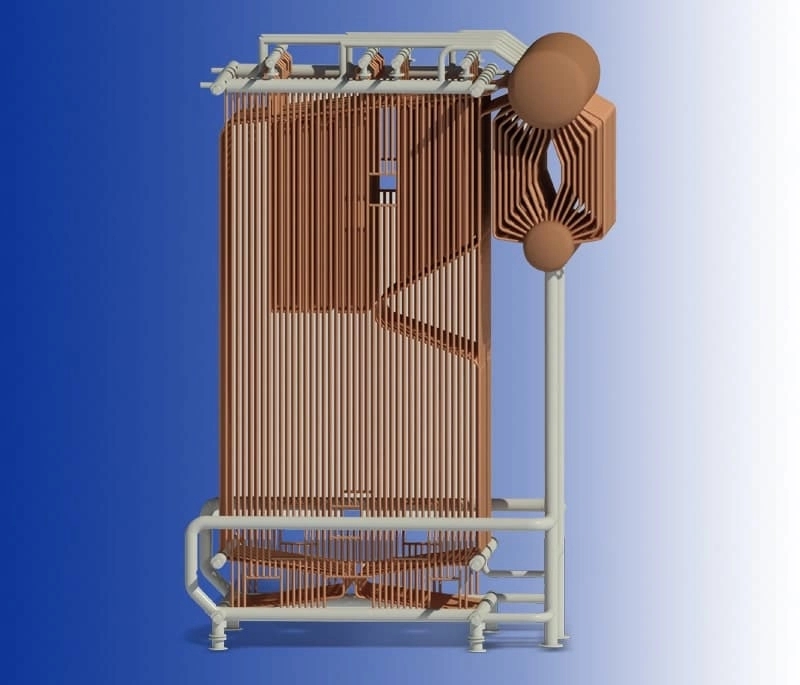

The system consists of a classical water tube boiler in Bi-Drum construction designed to burn a variety of biomass fuels like Paddy Husk, Saw Dust, GN shells etc as well as both Indian and Imported Coal in a Fluidized Bed Combustor.Other combustor options like Traveling Grate, Reciprocating Grate and Dumping Grate can also be offered based on fuel combinations. Selected Combustion System ensures complete combustion of fuels in a turbulent furnace thereby resulting in highest efficiency.

Range :

Capacity : up to 50 Tons/Hr

Pressure : up to 67 Kg/Cm2(g)

Superheat Temperature : up to 490 Deg. C

Higher Pressures and Super Heat Temperatures can be offered on a case to case basis.

The flue gases coming out of the boiler passes through downstream heat recovery systems like Economizer and Air Pre-Heater to further extract the residual heat from the flue gases before being sent to Pollution control devices like Bag Filters/ESP.

The Boiler operations can be fully automated with sophisticated PLC controls and SCADA systems.
