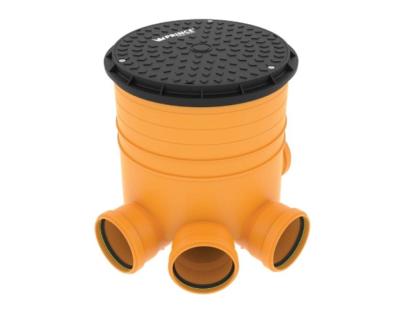

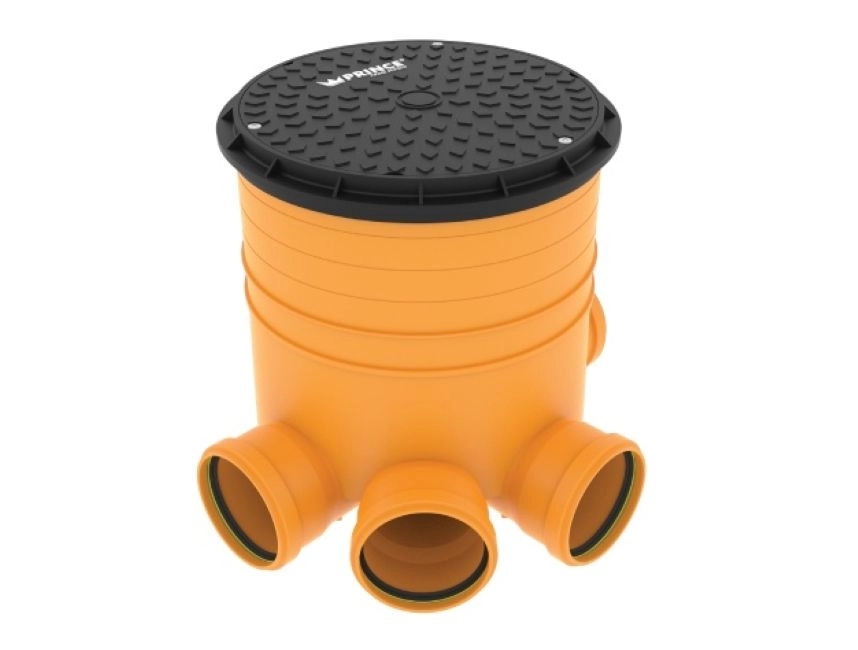

Drainfit - PP Chamber

Drainfit Inspection Chambers Made through Injection Moulding Process with the use of Polypropylene material, they have superior chemical resistance over a wide range of bases and acids which ensures good impact strength and low co-efficient of friction. Installed where multiple drainage lines are connected, they allow easy and fast inspection, maintenance and removal of debris which is generated through the flow of sewer waste.

Features :

Heavy wall thickness and weight enhances durability and load-sustenance.

World class rubber seal provides a leak-proof performance.

Slope provided from inlet to outlet for gravitational flow of sewerage.

Taper provided for preventing waste accumulation inside the chamber.

Corrosion-free stainless steel screws keep the cover and the frame of inspection chamber together and intact.

Blanking plug option is available which facilitates you to keep the outlets open or close as per the requirement.

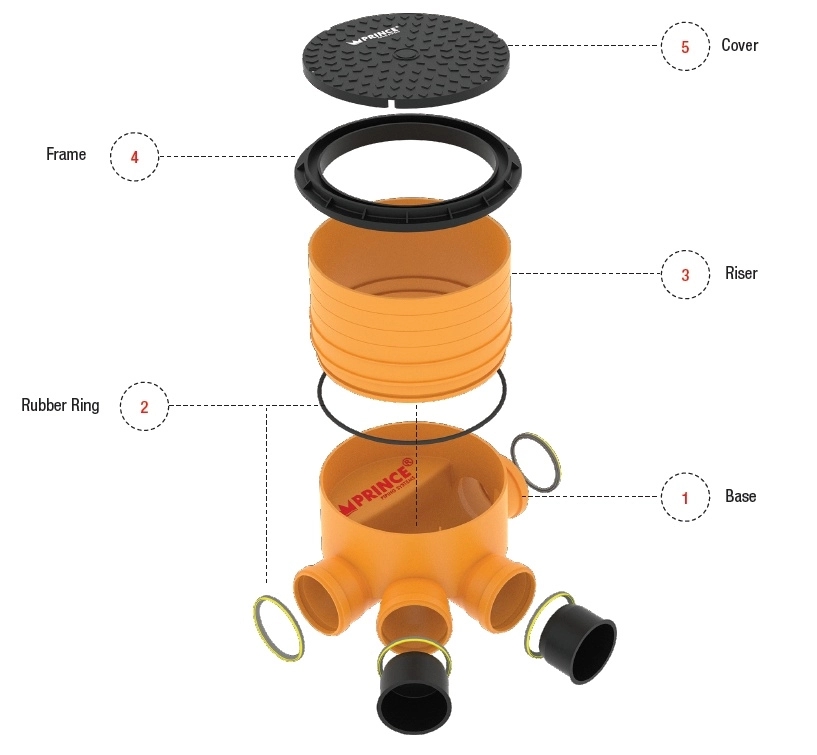

Inspection Chamber :

Blanking Plug : 110 mm

Straight Through : 315 x 110 mm

Left or Right 90° Bend : 315 x 110 mm

Left Hand 90° Junction : 315 x 110 mm

Right Hand 90° Junction : 315 x 110 mm

Left Hand 45° & 90° Junction : 315 x 110 mm

Right Hand 45° & 90° Junction (Moulded) : 315 x 110 mm

Riser (200mm Long) : 315 mm

Usages :

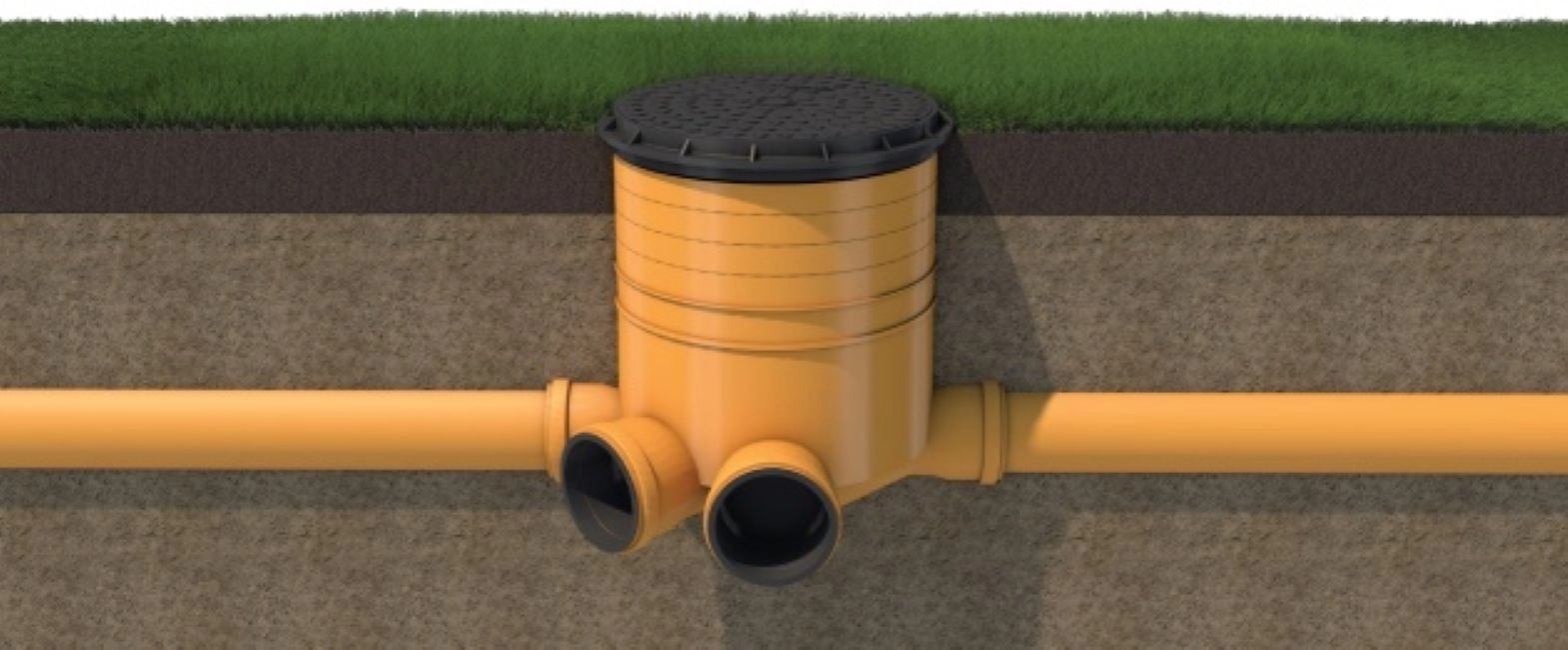

Where a branch pipe meets the main run of drainage pipe and there is change in direction.

Refer Catalogue for more information.
