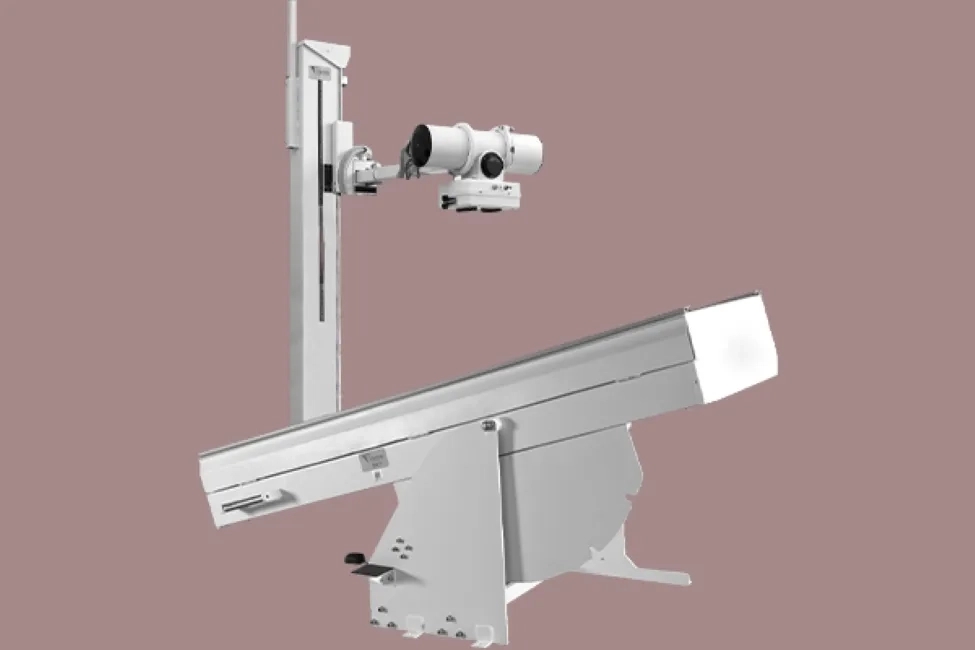

SI Surgical X-ray & Digital Radiography - 300HF

Utility :

Providing you complete solutions for every application, a wide range of optional high quality accessories are also available. All with guarantee of quality and enduring value. * Radiography and radiography/fluoroscopy floor to ceiling tube stands. * motorized, Horizontal and Manual multi-position bucky, examination tables. Ideal for routine examinations such as the chest, extremities, skull and for special investigations including barium, IVP and routine orthopedic examinations, abdomen and pelvic studies.

Technical Specifications :-

Model / Speces: 300 HF

Fuoroscopic Technic Range of mA : 0.5-6mA

Tube Unit : Rotating Anode Tube Unit with Focal spot 1.2 and 2.0 Sq.mm (Two Nos) Toshiba

Control :-

Controller : Microprocessor based

Exposure Technic : 2 Point Technic

Anatomical Programs : with ± 60 optional dissecting programs

Input Power : 3 Phase, 440 v ac ± 10%, 30kva

Automatic input voltage compensation : ± 10%

Table : Horizontal Bucky Table or Manual five position Table Or Motorized Table Or Horizontal Bucky Table with four way floating table top

Vertical Bucky : Vertical Bucky compatible for cassette sizes up to 14 x 17 inch

Generator : High Frequency

High Frequency : 100 kHz

Max. Output Power : 30 kw

Radiography Technic KVP Range : 40-125kv

Precision of kv : S±5%

mA Range : up to 300mA

Precision of mA : S±10%

Range Of exposure time : 0.0001-6 sec minimum: 1 ms increment / decrement

Precision of Time : ±10% ( 1 ms )

Range of mAs : 1-630mAs
