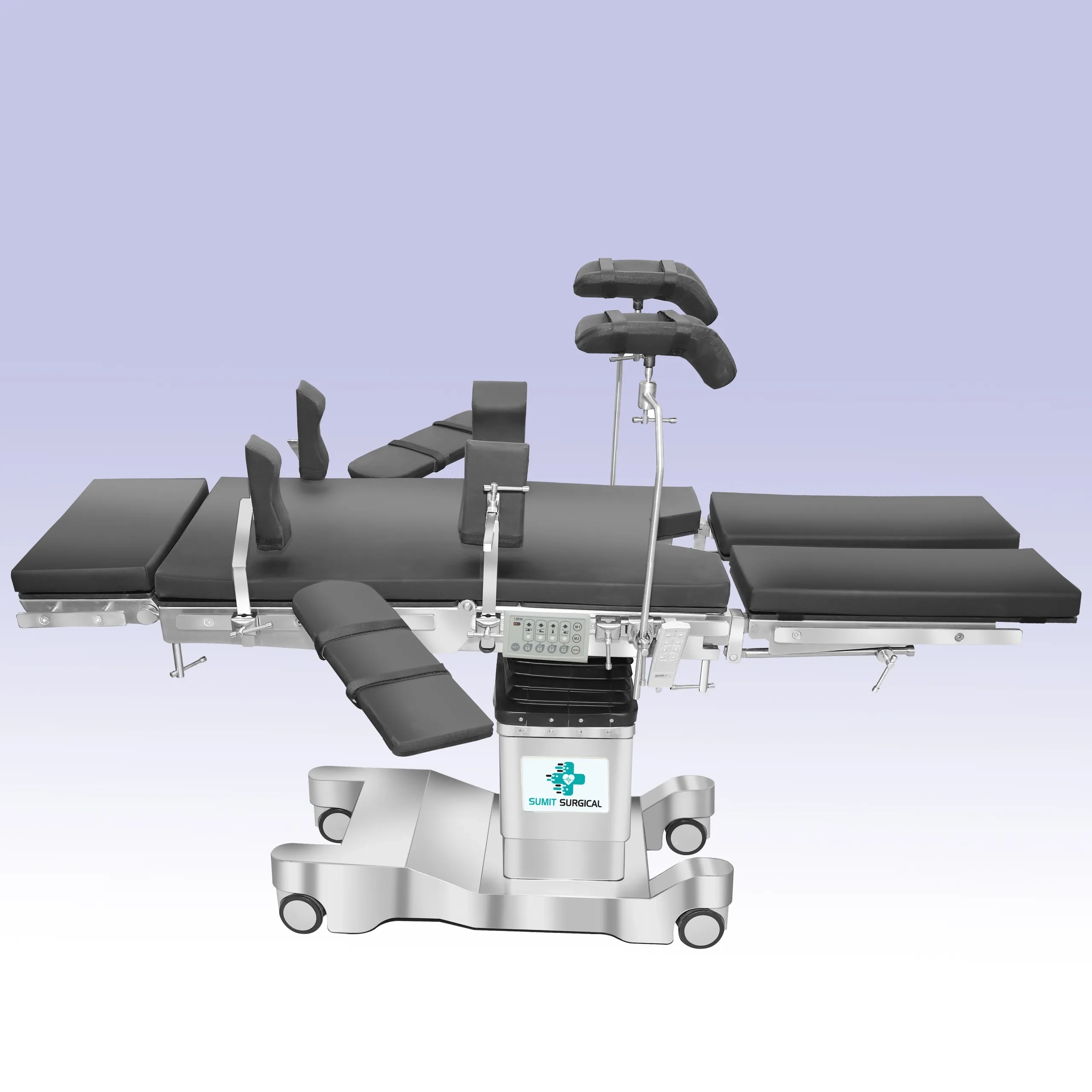

Sumit Surgical Advance Electric Table

SS-304

Surgeons Panel

Electric ( Remote Operated)

C-Arm Compatiable

Floor Locking

Zero Positioning

Top Slide (Optional)

Advance Electric Table (Model No. SSI-1500E)

Features :

Fully electrically operated table, five sections, radio-translucent tabletop with eccentric pillars and sturdy base.

Interchangeable head and leg sections (manually).

All positions operated through cable remote.

Electric floor locking.

Inbuilt kidney bridge.

Auto leveling (zero function).

We are providing two Handsets. The additional fixed control panel provided on the tabletop, which can be used for failure of the main handset.

Indication of Battery Back provided in the handset.

The handset is providing Dual Memory function which can be set and reset.

Technical Specification :

Top Dimension : L 1900 mm x W 530 mm

Height Adjustment : 730 mm -1030 mm

Trendelenburg/Reverse : 30°/25°

Lateral Tilt : 20° /20°

Kidney Elevator : 130 mm

Back Rest (up/down) : 80° / 20°

Leg Rest (up/down) : 10°/90°

Head Rest (up/down) : 45° /90°

Power Supply : 24 V DC

Battery Backup : 2-3 Hours (Optional)

Mains Voltage Capacity : AC 220 + 10%50Hz
