Rielta Foton-10M-01 - Passive Infrared Sensor

Passive infrared detector Foton-10M-01.

Features:

Speed detection from 0.1 to 3 m/sec

Wide detection angle

Compact case

Digital temperature compensation

Alarm memory

Tamper output

Swivel bracket included

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Foton-10M-01 - 1 pc.

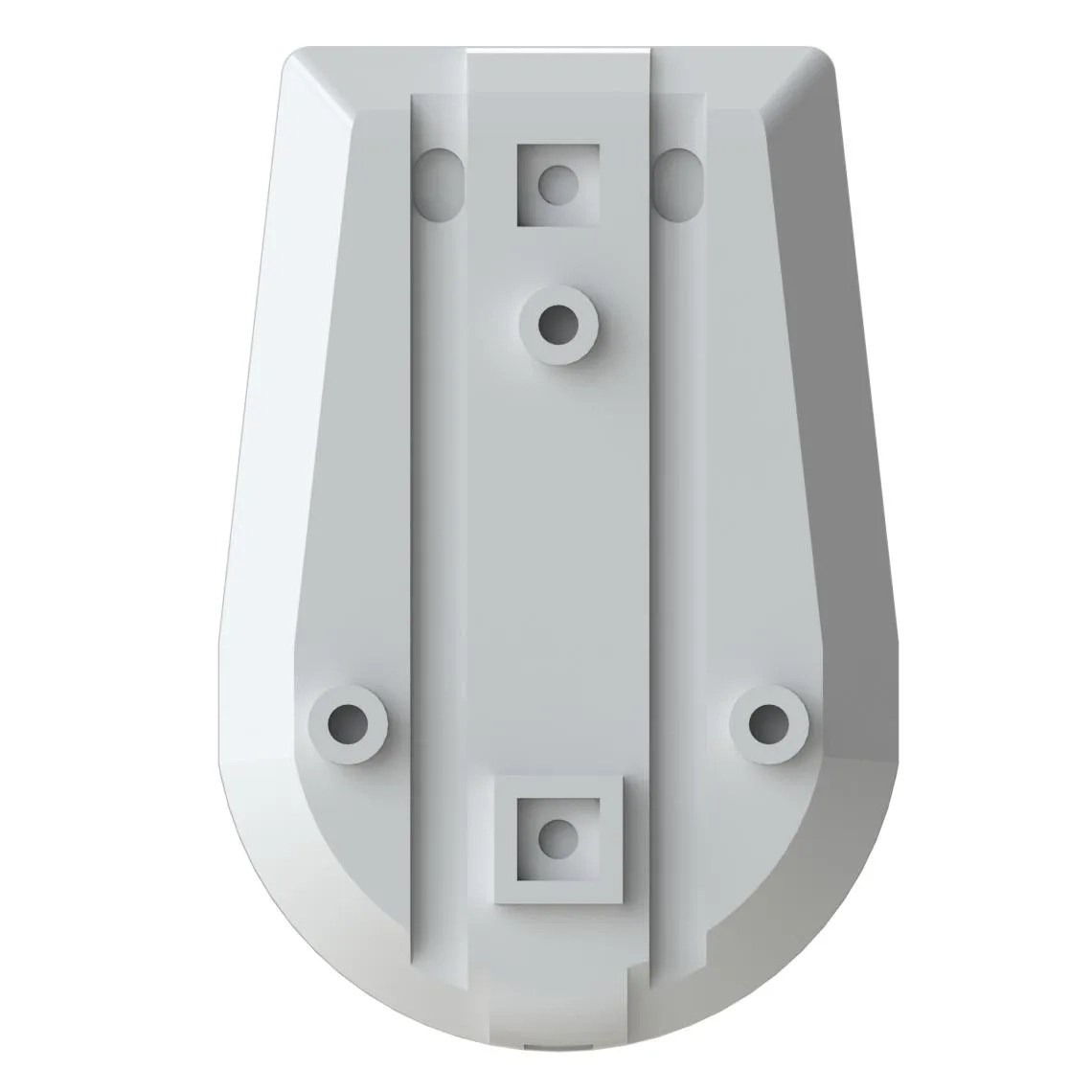

Bracket.

Operational documentation

Code: 00000009515

Pet immunity: No

Voltage: from 10 to 15 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 90х60х50 mm

Installation height: from 2 to 5 meters

Maximum detection distance: 12 meters

Case opening control: Yes

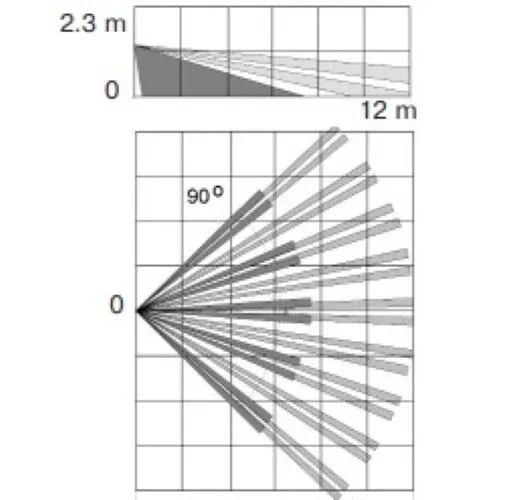

Detection zone: Volumetric

Refer Catalogue For More Information
