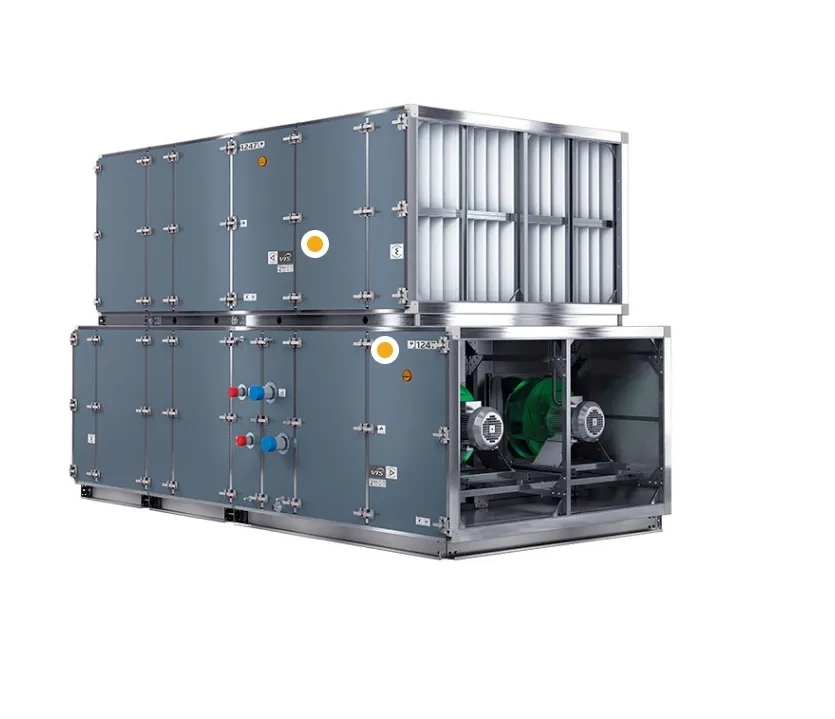

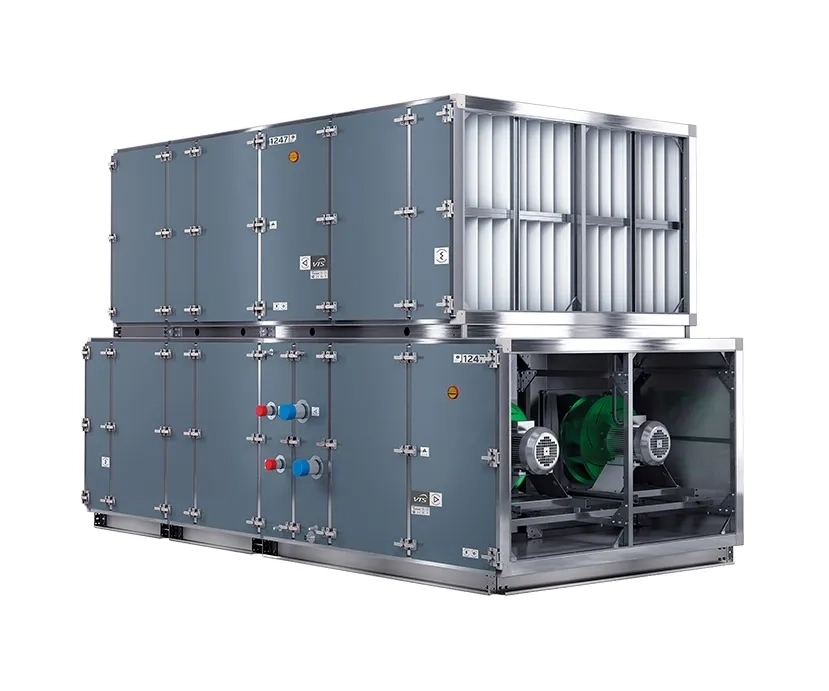

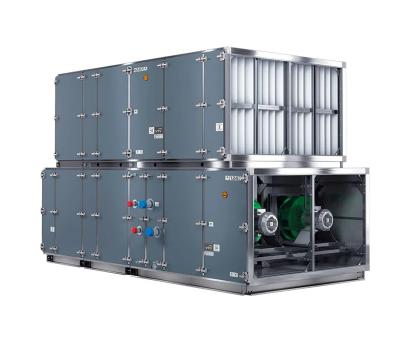

VTS VENTUS - Modular Air Handling Units

The VENTUS VVS modular air handling units are units with, wide and universal applications, characterised by the possibility of individual configuration tailored to the needs and preferences of the customer.

The units are selected using the ClimaCAD OnLine software:

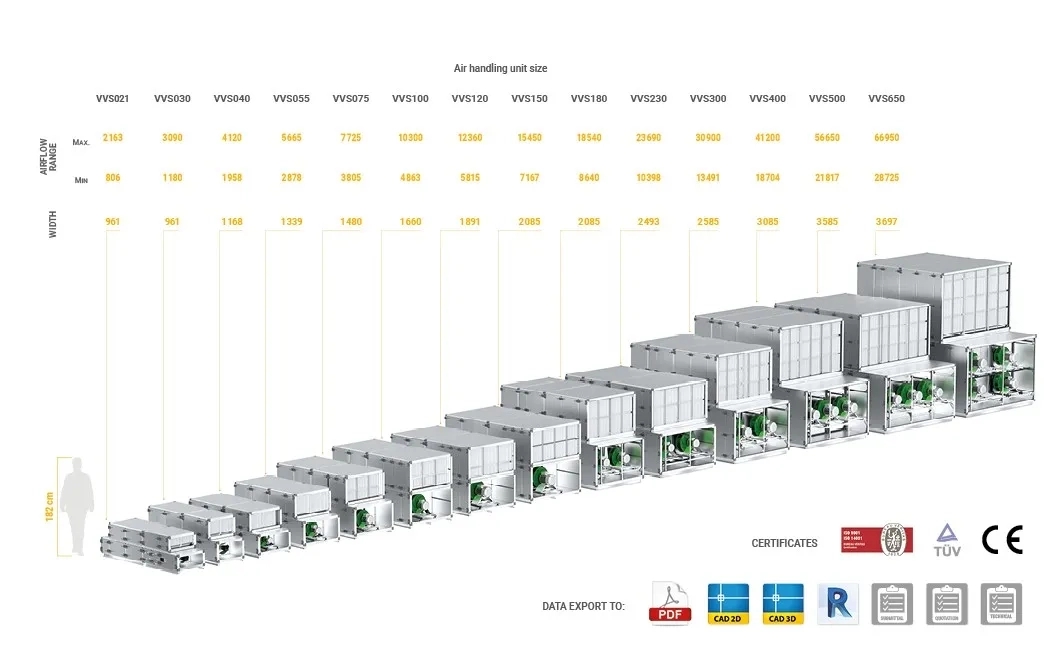

Capacity: from 1100 m3/h to 100,000 m3/h

Energy recovery: up to 87% recovery efficiency

Placing: floor-mounted units

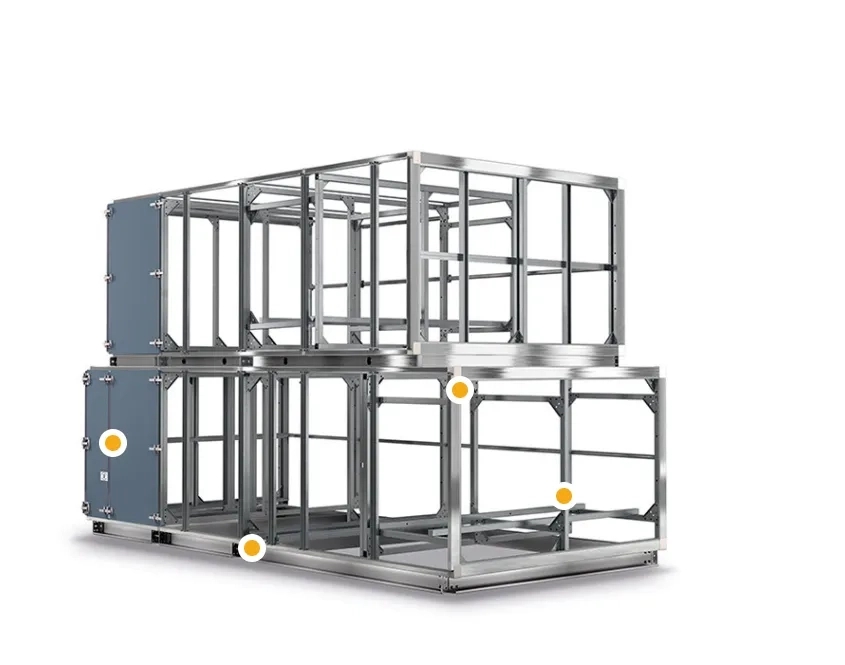

Design: The VENTUS VVS modular air handling units are made of polyurethane panels covered with sheet metal mounted on an internal skeleton made of metal profiles.

Energy efficiency:

The VENTUS VVS modular air handling units meet the highest energy-efficiency requirements.

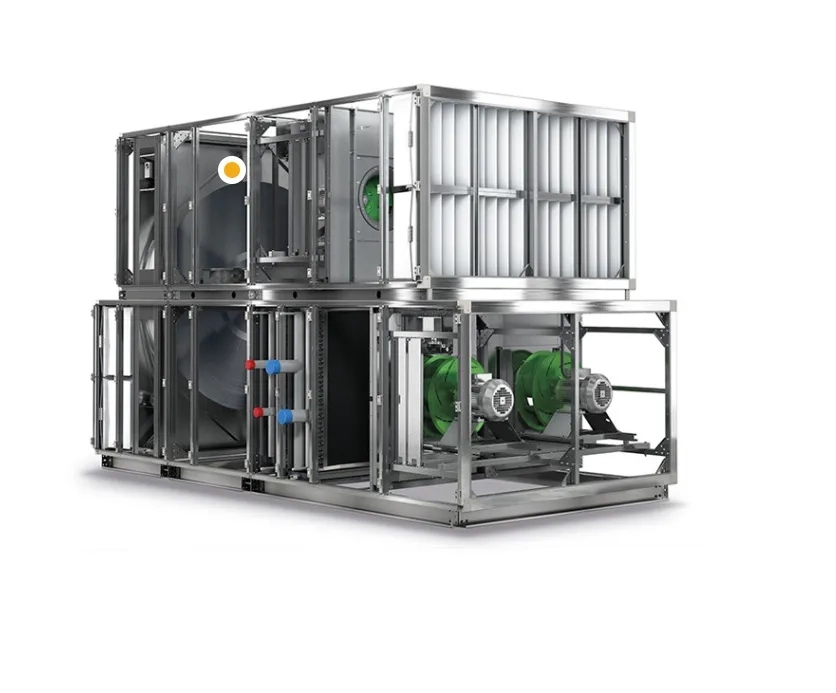

The devices can be equipped with various heat recovery options:

rotary heat wheel

counter-flow hexagonal recuperator

cross-flow plate heat recuperator

run-around coil

The maximum recovery efficiency reaches 87%

All units are available with multi-functional controls that performs advanced energy-saving functions based on measurements of air quality parameters.

Controls: Controls in the VENTUS VVS air handling units regulates all utility parameters and functions of energy optimisation based on the measurement of air quality parameters.

Visualisation or a remote HMI Advance desktop, which enables remote control of the unit, are available as standard

Selection software: ClimaCAD OnLine 4 (CCOL4) – program doboru central wentylacyjnych i klimaty certified by Eurovent.zacyjnych

ClimaCAD OnLine 4 (CCOL4) is a proprietary VTS device selection software. The software uses the latest technologies and programming platforms. The system is available from anywhere in the world, any device with a web browser and access to the Internet is sufficient.

The software includes both modules for optimal device selection in terms of parameters and costs as well as innovative generators of Revit objects or 2D and 3D dwg files. The generators ensure immediate availability of .rfa and .dwg files for any device configuration. The system offers the ability to automatically generate descriptive and parametric technical specifications of selected devices. Full device parameters are available in .pdf, .html as well as .rfa files.

Unlimited number of configurations

Friendly user interface

Easy and simple selection

Integration with CRM, ERP, WMA systems

Refer Catalogue for more information
