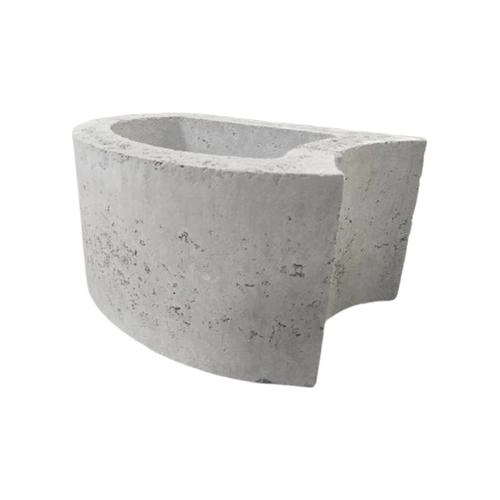

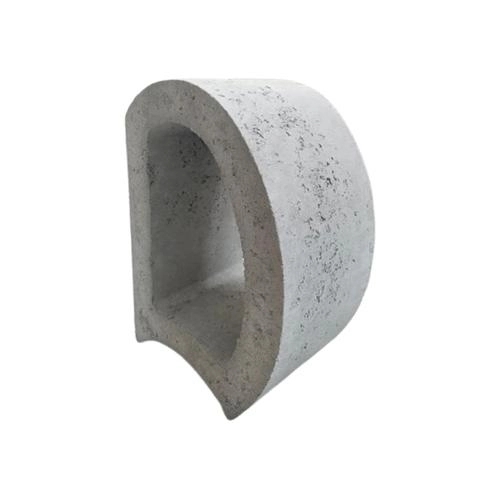

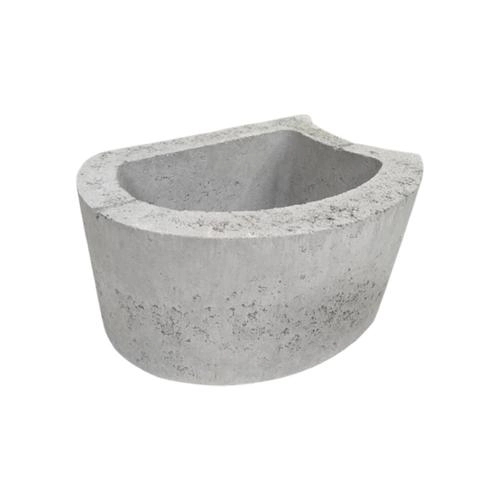

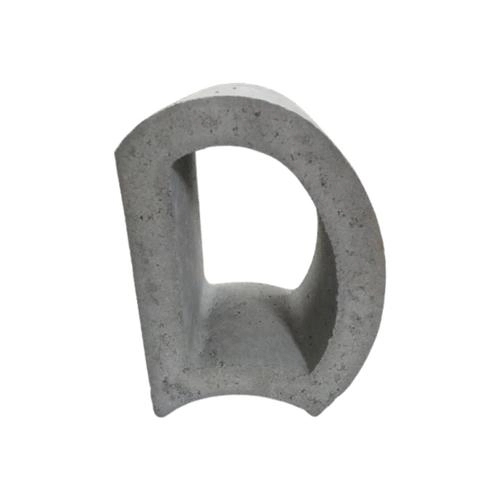

Drsti Precast Retaining Wall Block

A Retaining Wall Block (also known as a precast retaining wall unit, concrete gravity block, or modular retaining wall element) is a factory-made RCC structure designed with Patented Technology to retain soil, embankments, or level differences while maintaining an elegant architectural appearance. Each block is cast using high grade concrete. These precast retaining blocks eliminate the need for shuttering, curing, and site casting, offering an efficient alternative to traditional cast-in-situ retaining walls.

Drsti’s Retaining Wall Panels are ideal for highways, basements, industrial parks, villa developments, and landscape retaining systems. They are preferred by architects, EPC contractors, developers, and infrastructure agencies who need ready-to-install, maintenance-free precast retaining wall solutions. The product also suits modular earth retaining structures (MERS) and slope protection walls where strength and appearance are equally critical.

Drsti Precast, India’s top provider of innovative precast solutions, proudly headquartered in Coimbatore, Tamil Nadu, specializes in the manufacturing and supply of a wide range of precast concrete retaining wall systems, delivering trusted solutions for infrastructure, landscaping, and industrial developments. With advanced technology, precision moulds, and rigorous quality control, we produce high-strength RCC retaining wall blocks that combine durability, dimensional accuracy, and aesthetic appeal. Our products including L-type retaining walls and Lego wall blocks are engineered for faster installation, consistent performance, and long-term reliability.

Choose Drsti Precast for innovative, reliable, and visually refined precast concrete retaining wall systems. Drsti Precast delivers excellence across every segment.

Technical Specification:

Product Code: RWB001

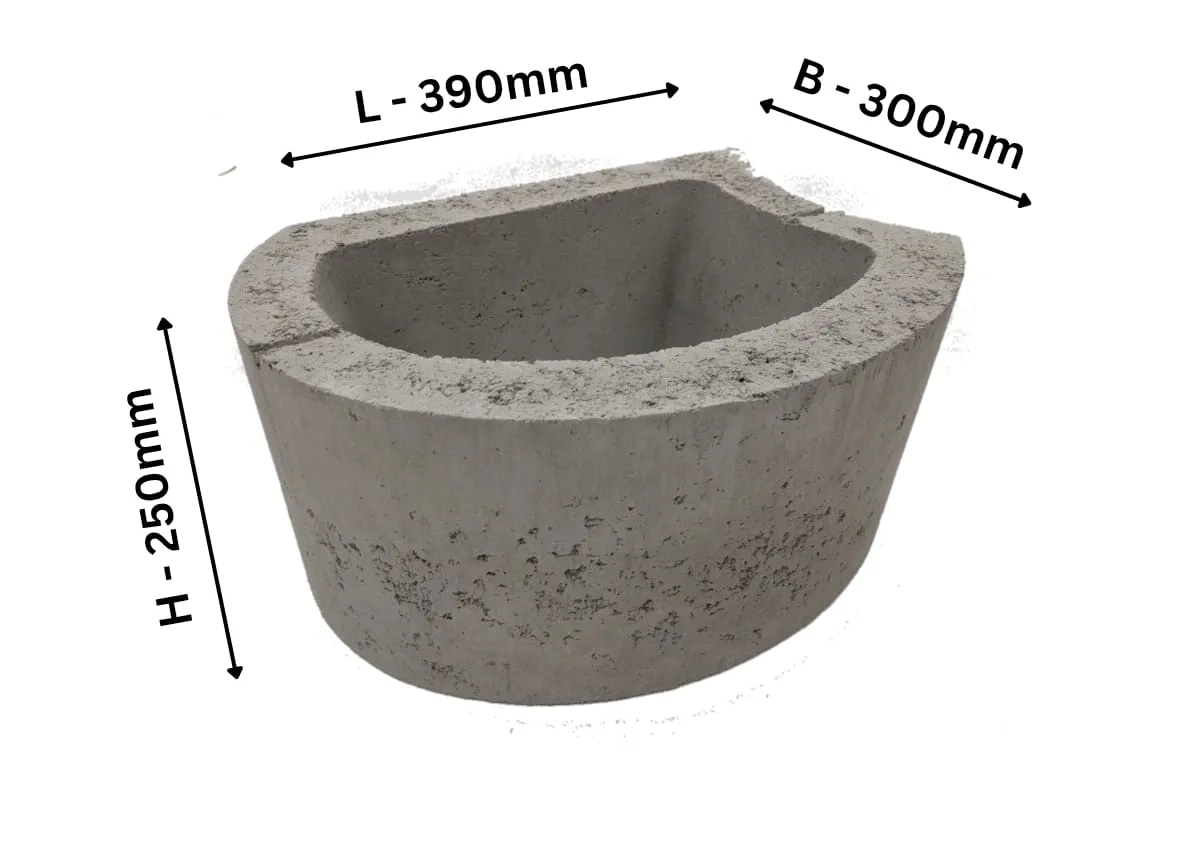

Length L (mm): 390

Depth B (mm): 300

Height H (mm): 250

Wall Thickness (mm): 50 - 60

Avg Wall Weight (with fill) (Kg/m²): 600 - 650

Block Mass (approx.): 36–38 kg

Infill Volume per Block: 0.0142 m³

Blocks per m² (nominal): 10–11

Note: All dimensions can vary based on site-specific design and engineering requirements.
