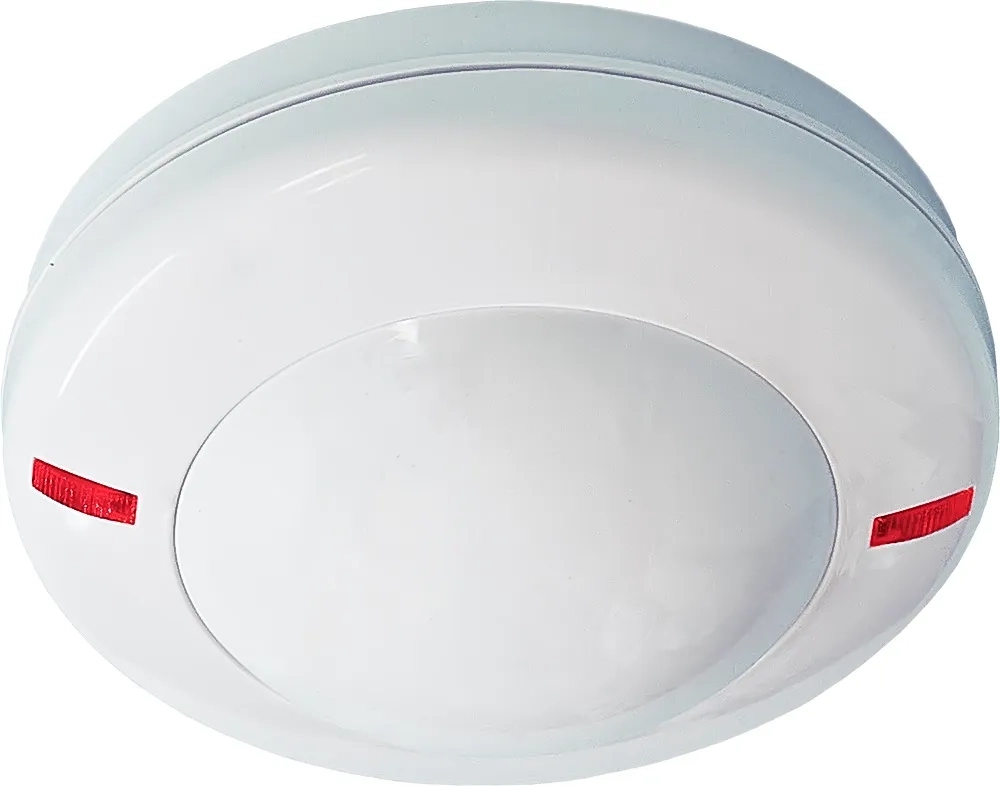

Rielta Foton-21 - Passive Infrared Sensor

Passive infrared detector Foton-21.

Features:

Ceiling mounting

Wide detection angle

Two dual element pyrodetectors, unique lens, special algorithm of signal processing, detection of the intruder moving inside monitored area within any direction

Self-testing mode

Digital temperature compensation

Alarm memory

Tamper output

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive Infrared detector Foton-21 - 1 pc.

Fasteners.

Operational documentation

Code: 00000009353

Pet immunity: No

Voltage: from 9 to 15 V

Current consumption: 17 mА

Temperature range: from -40 °C to +55 °C

Protection class: IP41

Dimensions: Ø105×45 mm

Installation height: to 5 meters

Case opening control: Yes

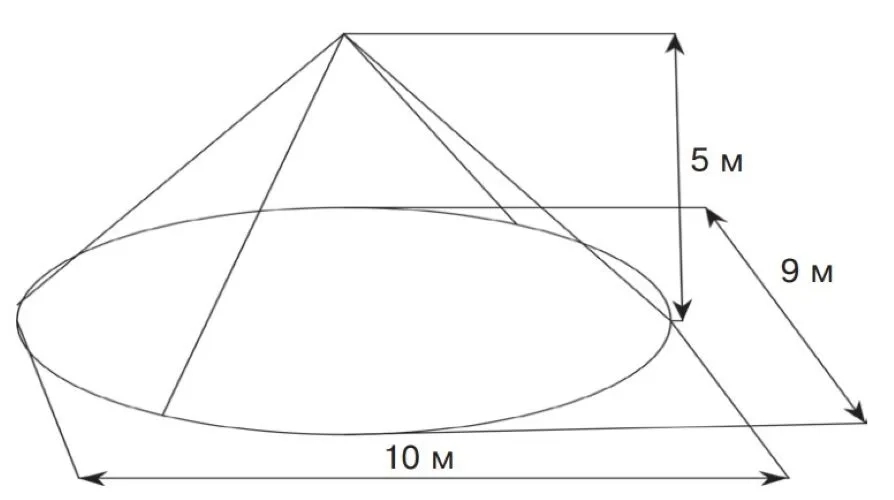

Detection zone: Volumetric

Angle of view of the detection zone in the horizontal plane: 360°

Angle of view of the detection zone in the vertical plane: 90°

Detection area size: 10 meters
