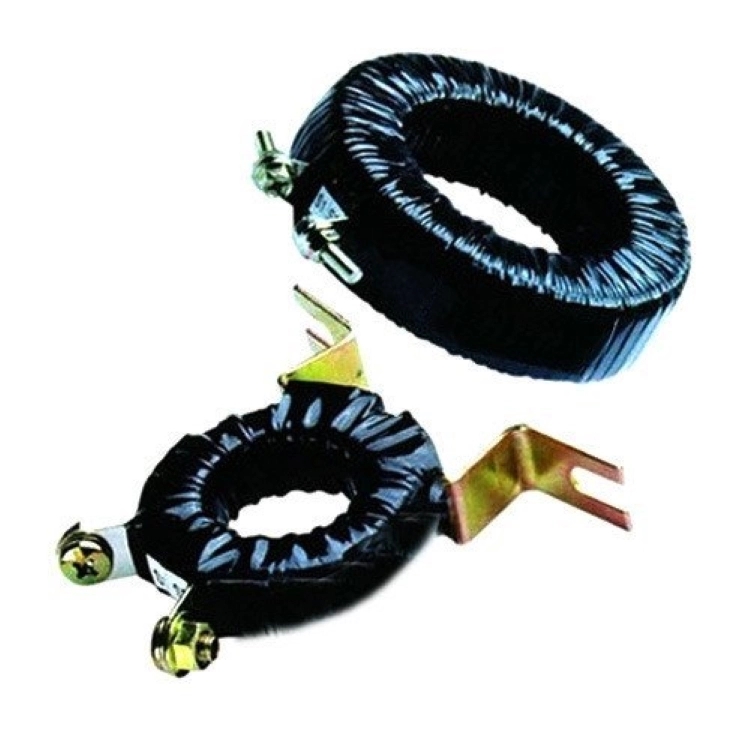

Macroplast LV Current Transformer Tape Wound

Current Transformers are used to step down the current from a high value (say 200 A) to a lower value (1 or 5 A) suitable for measuring instruments like ammeter, energy meters and protective relays

Advantages :

Provides electrical isolation

between high voltage power circuit and measuring instruments

Reduces insulation cost of measuring instruments

Ensures the safety of operators

Reduces utility losses

Protects the device during fault conditions

Technical Specifications :

System Voltage : Upto132 KV

Primary Current : Upto3000A

Secondary Current : 1 A or 5 A

Type : Oil Immersed / Dry Type

Rated Frequency : 50 Hz

Accuracy Class (Metering) : 0.2s 0.2, 0.5s, 0.5, 1

Accuracy Class (Protection) : 3P, 5P, 10P

Rated Burden : 2.5 VA to 50 VA

Applicable Standard : IS 16227, 2705 IEC 61869, 60044

Fittings and Accessories :

Porcelain Bushings

Primary and Secondary Terminals

Terminal Connectors

Oil Level Indicator

Nitrogen Filling Valve

Pressure Release Device

SS Bellows (optional)

Junction Box (optional)
