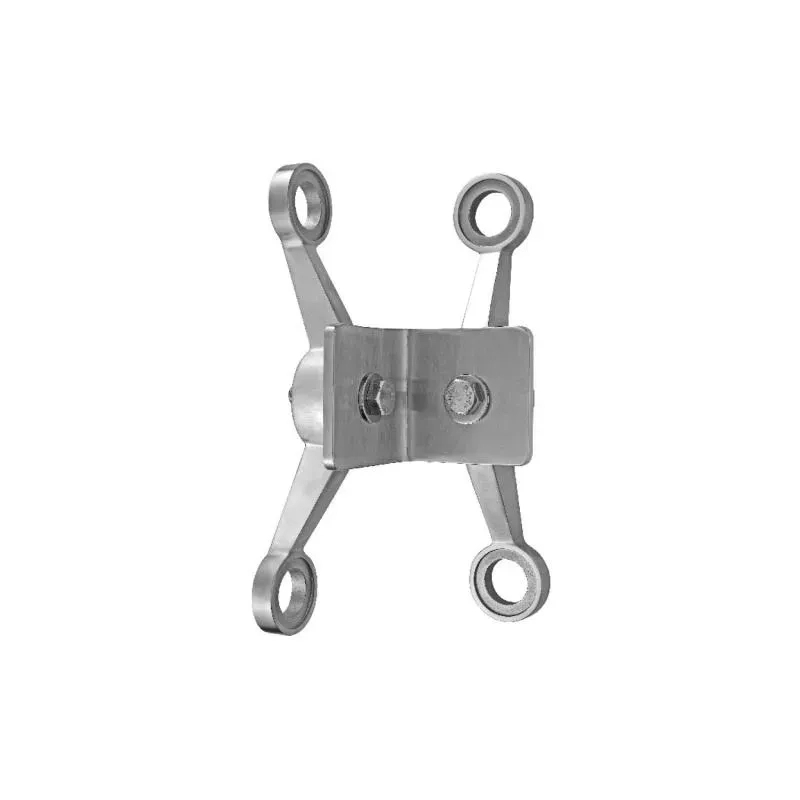

Ozone 4 Way Spider 90° Without Fin | Finish: Polished Stainless Steel

A specialized four-arm spider fitting designed to connect four glass panels at right angles (90°), providing exceptional structural integrity for glass walls and enclosures.

SKU : OSP-B-224-90 STD PSS

Features :

4 Way Arm Spider fitting (90 Deg)

To hold Glass with Wall/Frame

Compatible Glass Thickness : 10-17mm

Used with type of Routel (Flat Head / Center Sunk Type)

Flexible arm types and mounting options allow use in custom architectural layouts

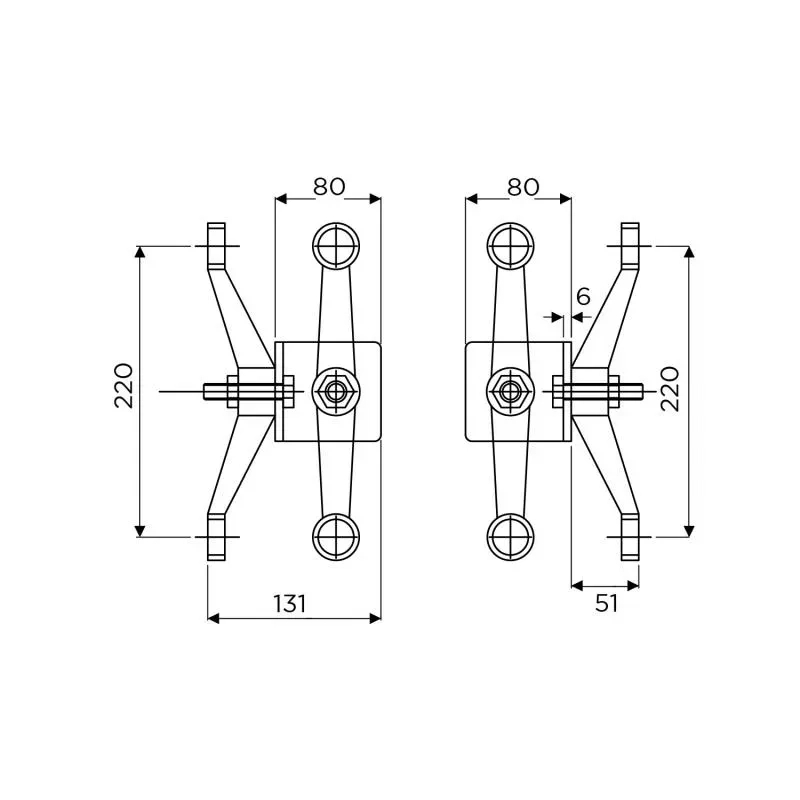

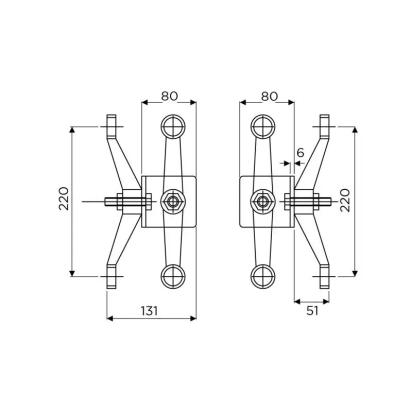

CTC : 220mm

Ease of Installation & Maintenance

Technical Specifications :

Material : SS-316

Finish : PSS & SSS

USP :

Spider fittings without fin support are crucial in applications where aesthetics and unobstructed transparency are a priority.

Applications :

Frameless
