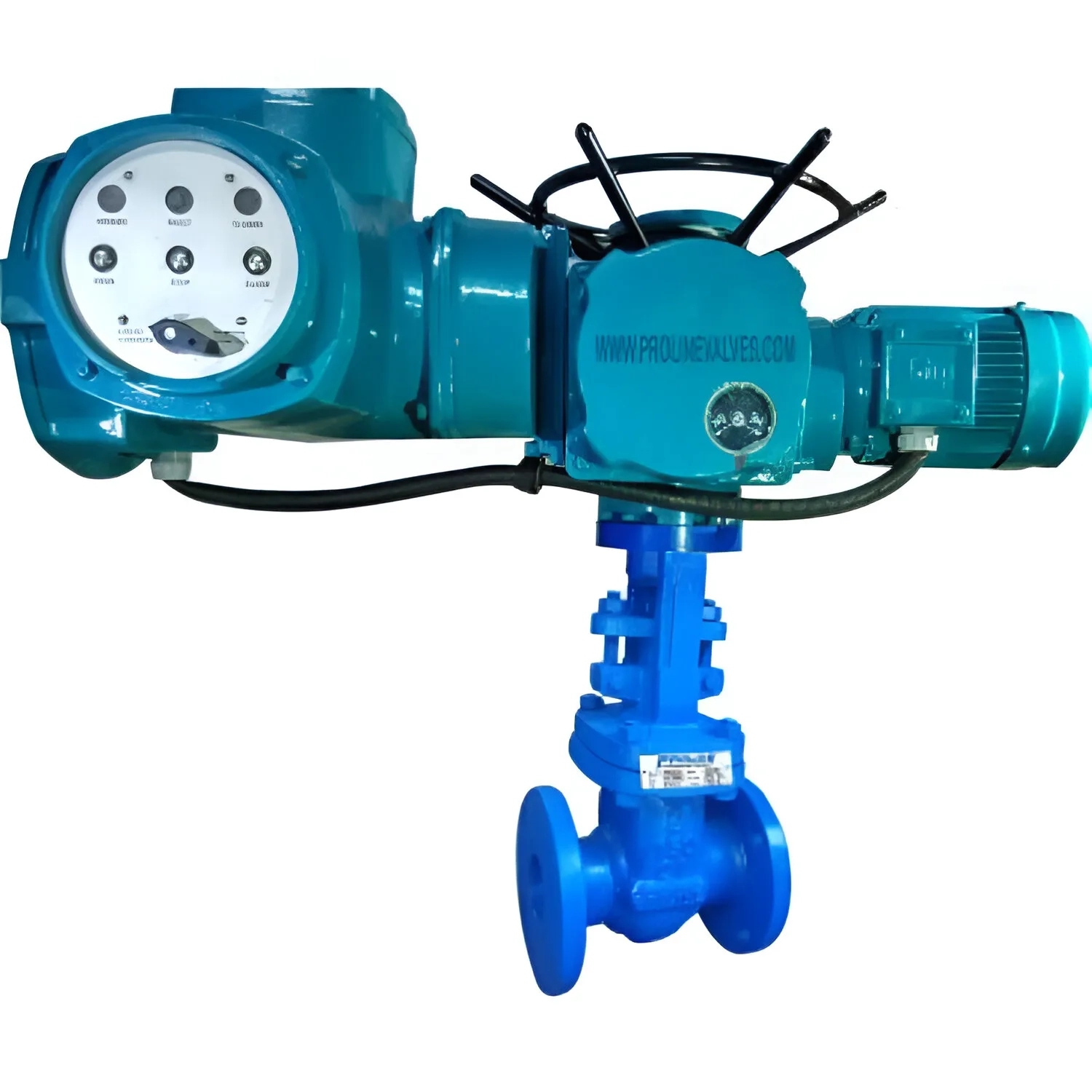

Proline Motorized Gate Valve

Motorized Main Steam line Stop Valve with motorized Bypass Arrangement. Multi-turn Electrical Actuator with Integral Starter Unit Controller Operated From Remote Control Operation. This Automated Electro Gate Valve is been Used for Various Automation Fields for Remote Controlling through PLC Operation, Electrical Gate Valves have long Life in working Cycle.

Features:IP65, IP67, or IP68 NEMA 6 rated for weatherproof outdoor environments, watertightness, corrosion resistance, submersion rating, and flame proof

Manual override, local controlling integral starter optional, 4-20mA input signal, 4-20mA feedback output signal, position indicator, servo controller wide optional are available

Size: 25 mm to 900 mm – 2″-36”

Pressure Rating: ASA – 150, 300, 600, 800, 900, 1500, 2500 Class

Body: Cast Steel IC-WCB, Forged Steel, SS304, SS316, SS316L

Gate: C.S., SS304, SS316 internal, full stelliting wedge

End Connection: Flanged / SWE / BWE / Screwed (BSP/NPT)

Design & Inspection: API-600, API-6D, ASME B16.34, BS-1873, BS-1868, API-602, BS-5352

Operation Type: Hand wheel type, gear operated, and electrical actuator

Refer Catalogue for more information.
