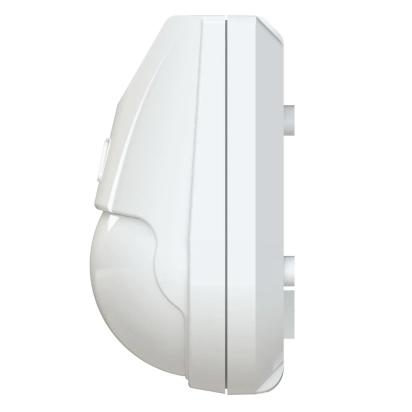

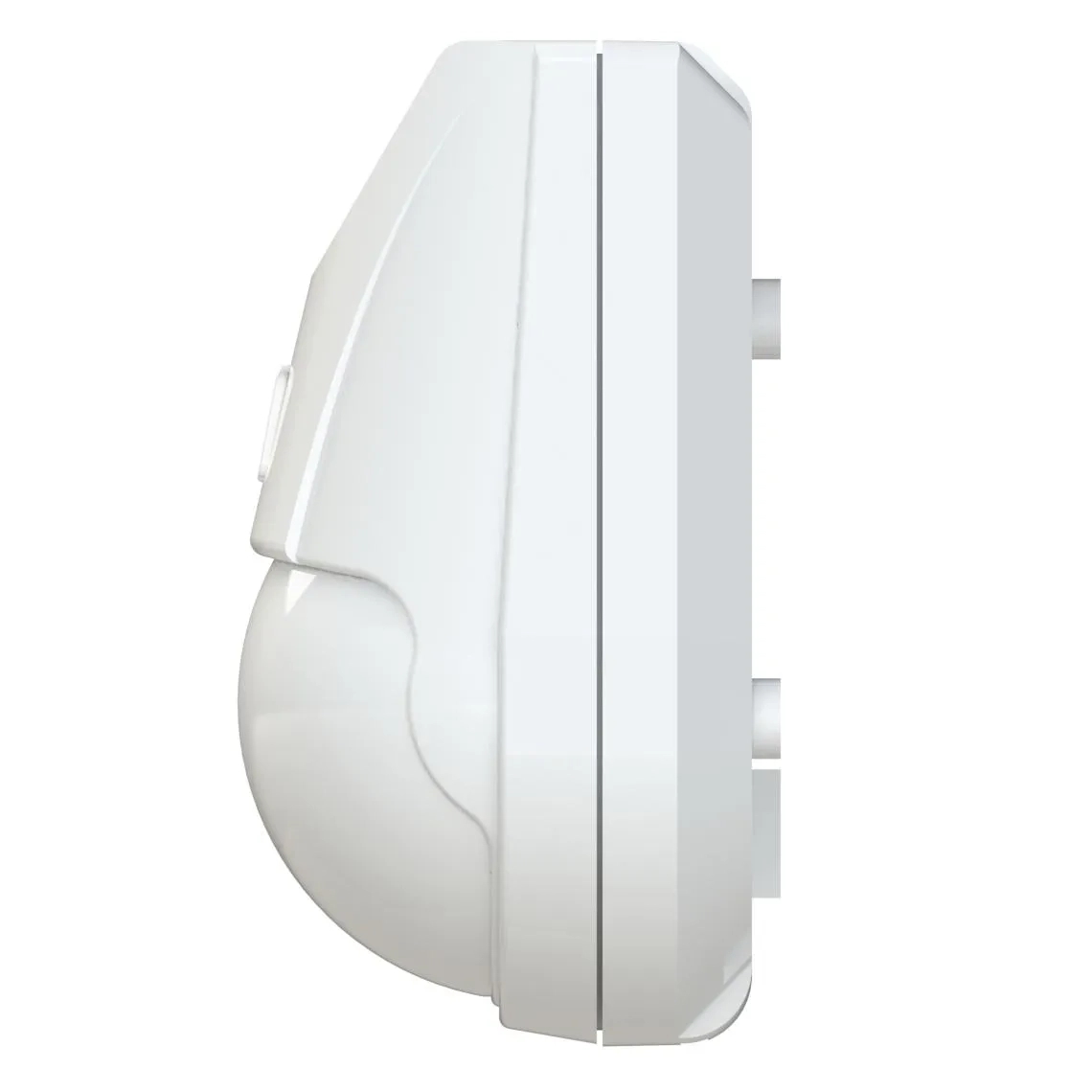

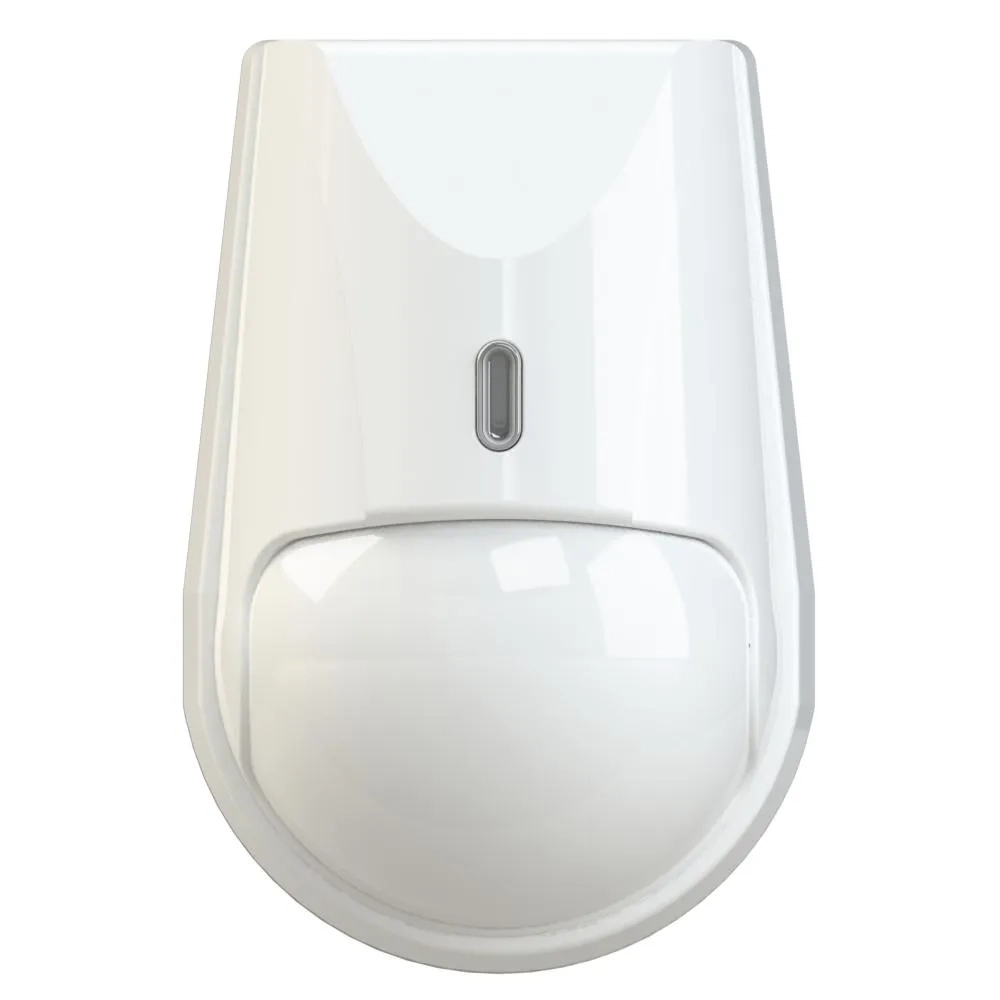

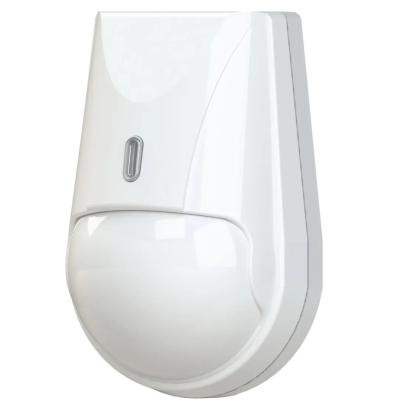

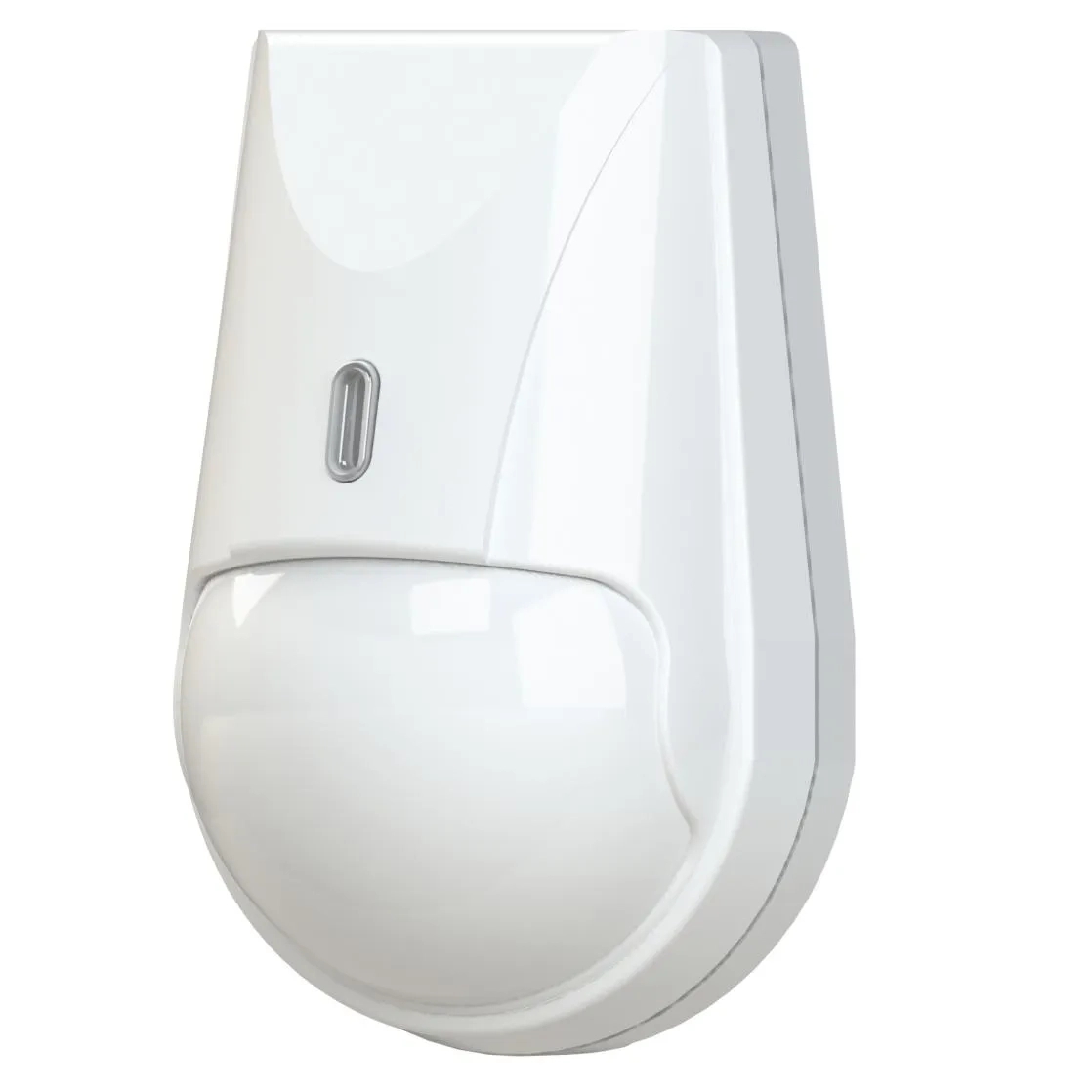

Rielta Foton-10BM - Passive Infrared Sensor

Passive infrared detector Foton-10BM.

Features:

Vertical curtain

Compact case

Digital temperature compensation

Alarm memory

Tamper output

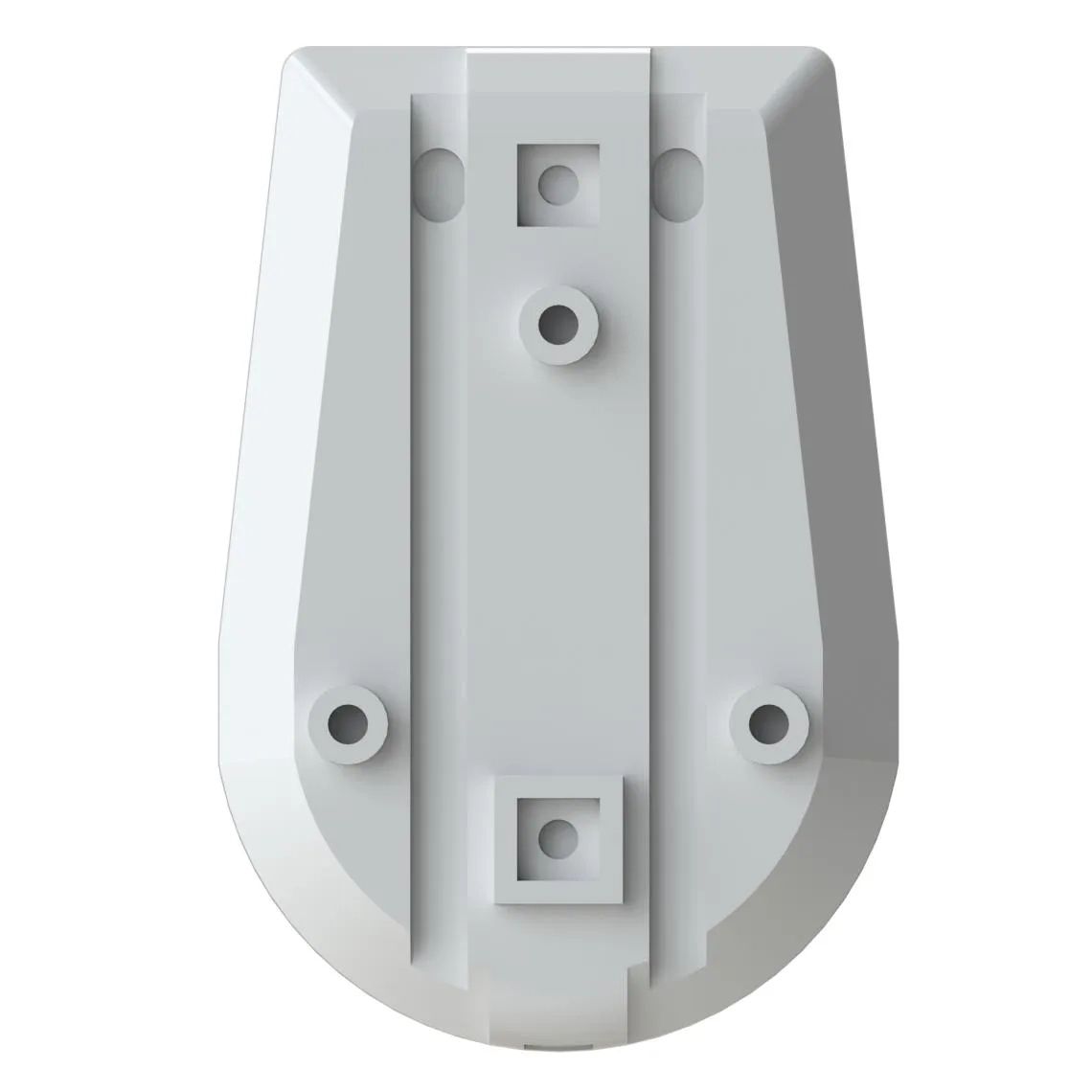

Swivel bracket included

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Foton-10BM - 1 pc.

Bracket.

Operational documentation

Code: 00000009636

Pet immunity: No

Voltage: from 9 to 15 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 90х60х50 mm

Installation height: from 2 to 5 meters

Maximum detection distance: 10 meters

Case opening control: Yes

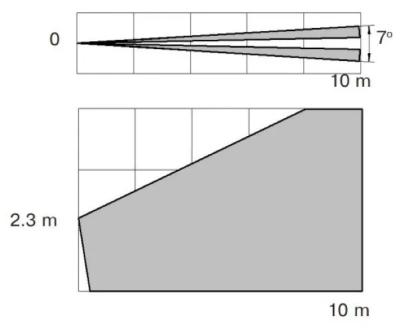

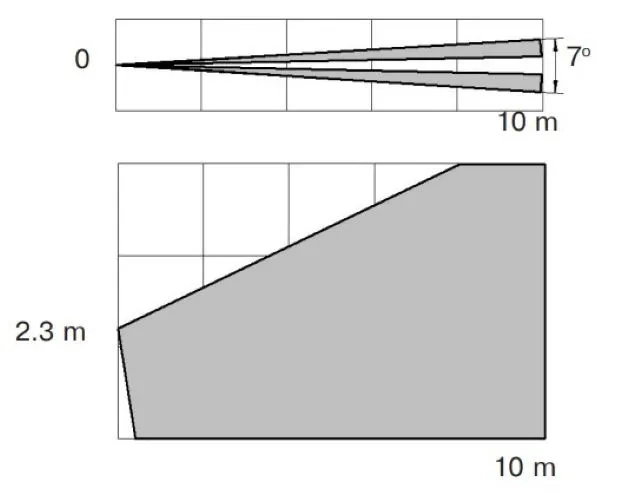

Detection zone: Superficial

Refer Catalogue For More Information
