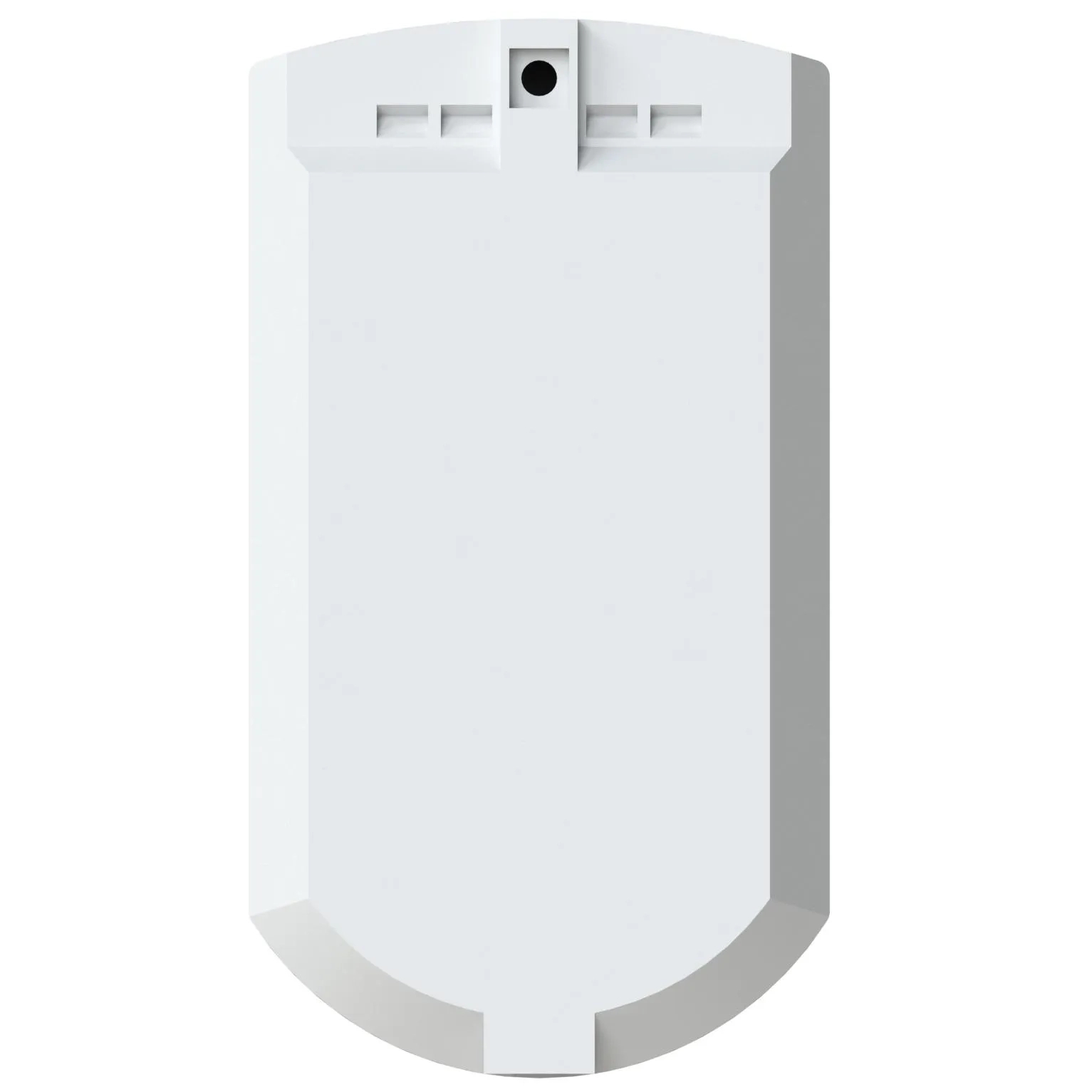

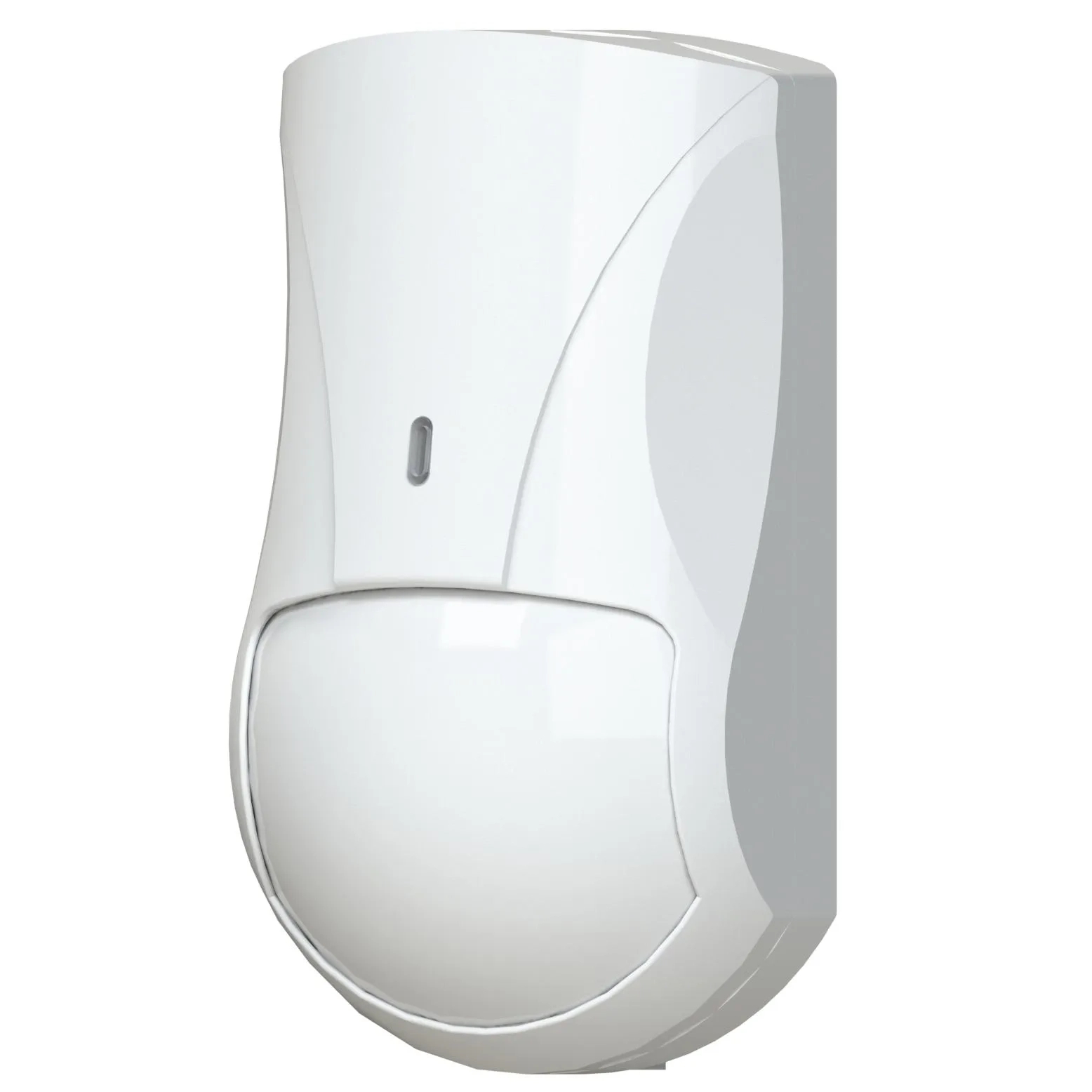

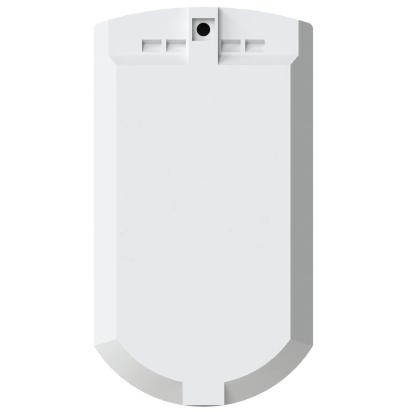

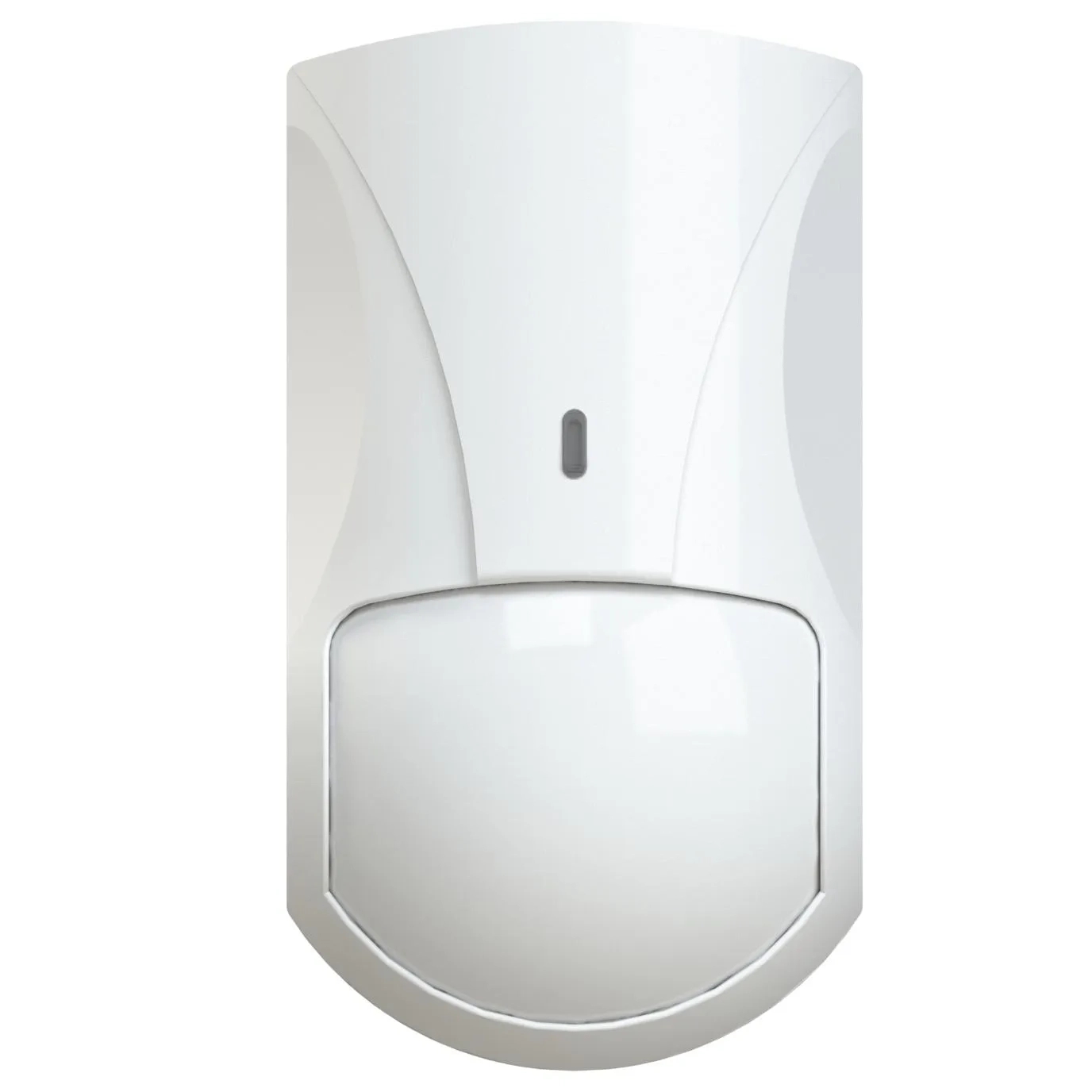

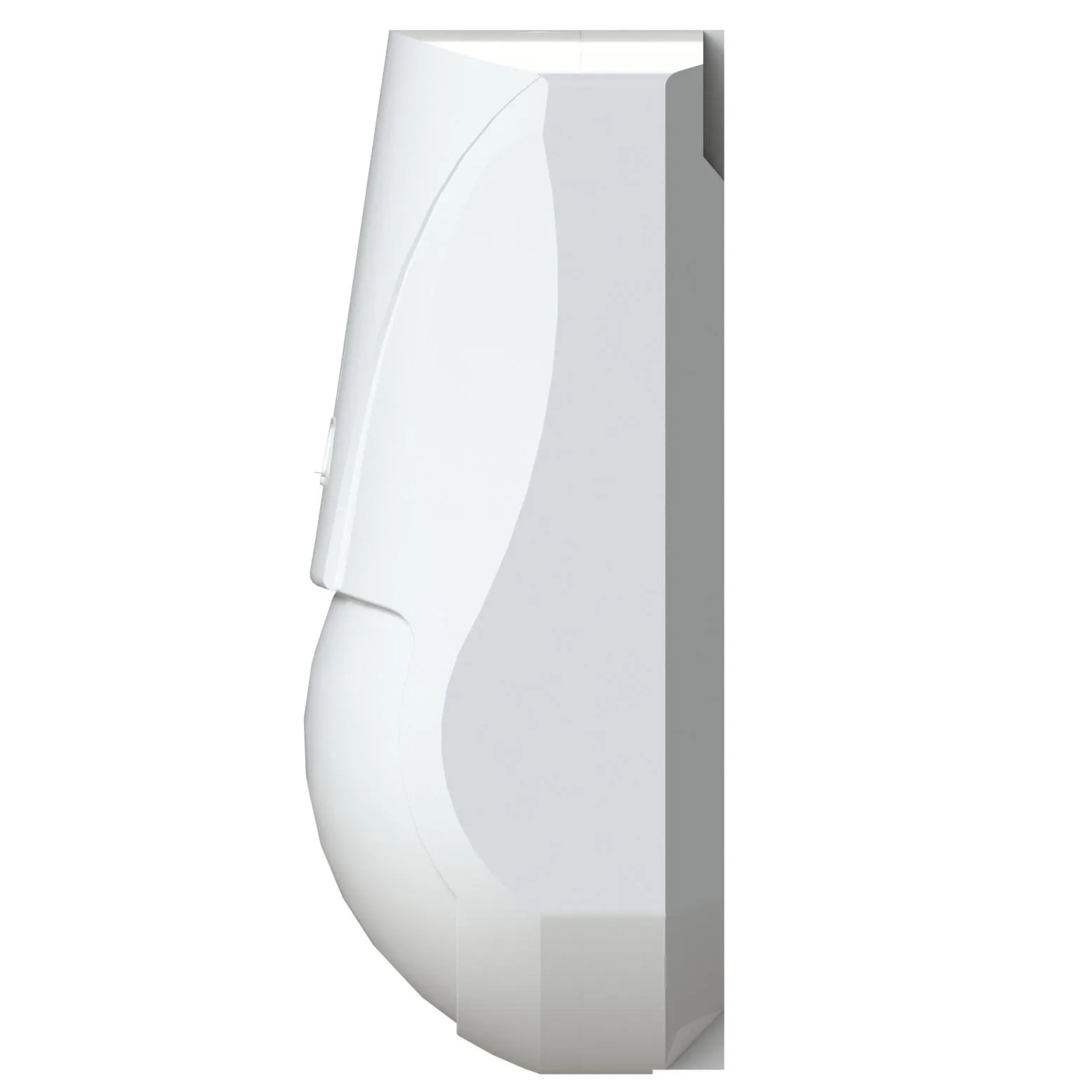

Rielta Foton-10 - Passive Infrared Sensor

Passive infrared detector Foton-10.

Features:

Wide detection angle

Digital temperature compensation

Alarm memory

Tamper output

Swivel bracket included

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Foton-10 - 1 pc.

Bracket.

Operational documentation

Code: man00000673

Pet immunity: No

Voltage: from 9 to 15 V

Current consumption: 15 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 126х70х55 mm

Installation height: to 3 meters

Maximum detection distance: 12 meters

Case opening control: Yes

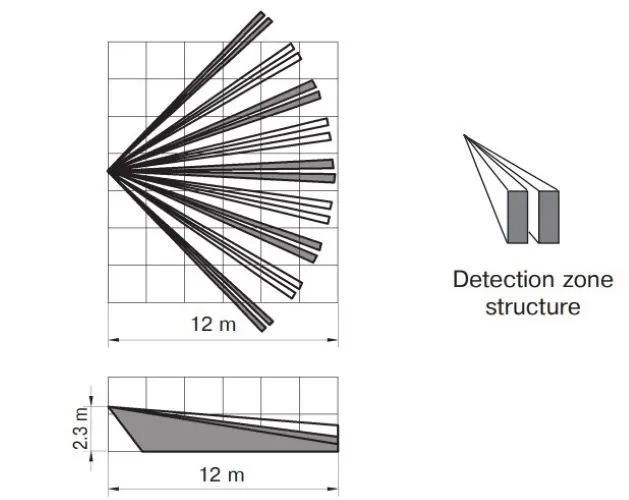

Detection zone: Volumetric

Refer Catalogue For More Information
