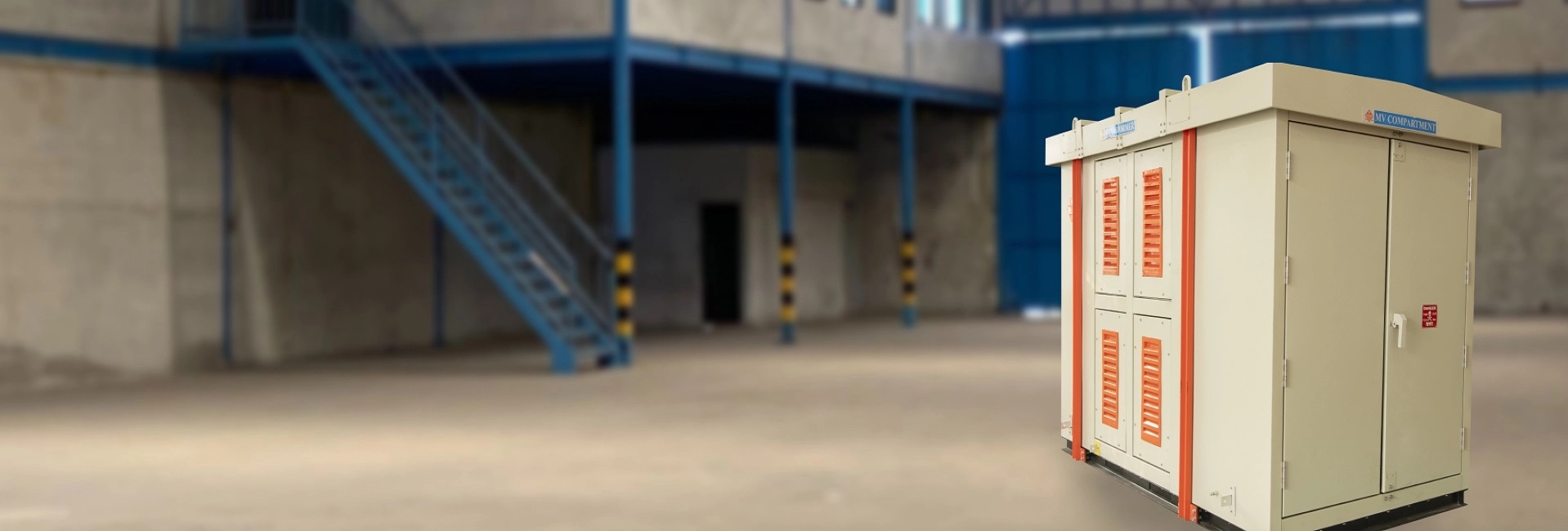

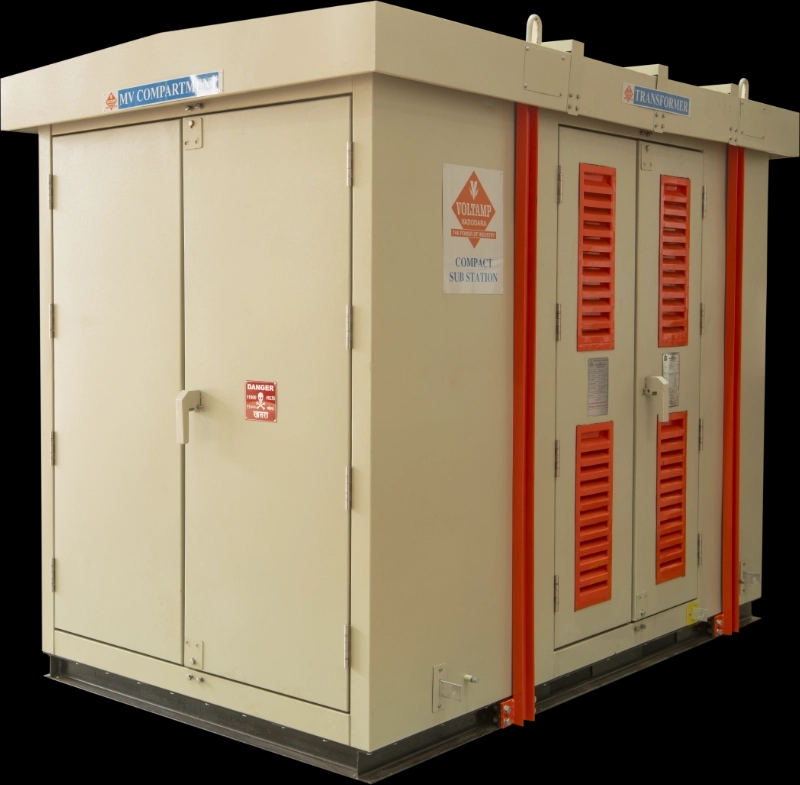

Voltamp Compact Sub Station CSS

Electrical substation, one of the integral parts of the electrical distribution system, has undergone many changes in terms of technology, components and forms. Today, we need substations which are compact as well as power efficient. To meet this need, Voltamp Transformers Limited offers compact substations which are also known as Pre-fabricated substations, Package Substations (PSS) or Unitized substations (USS).

This sub-station is manufactured from galvanized or epoxy based powder coated sheet cut to size for various applications. It can be used in any environment and also provide solutions for the medium voltage-low voltage (MV / LV) distribution centre needs of electricity distribution administrations.

In accordance with IEC 62271-202 IP 23D or IP34 for Transformer Compartment

Internal Arc Tested for Class IAC-AB at 21kA/1 sec

Factory built and ready for network connection

Superior Aesthetics

Ease of Transportation

Ready for installation & commissioning

Suitable for adverse atmospheric conditions

Wide range of factory designed options

Minimal moving parts and maintenance

All compartments are provided with illumination

Buildings

Housing Colonies

Shopping Malls

Industry

Constructions Sites

Mobile Sub-Stations

Wind Energy

Utilities

Gas Station

Rooftop or Basement Installation

This sub-station is manufactured from galvanized or epoxy based powder coated sheet for various applications.
