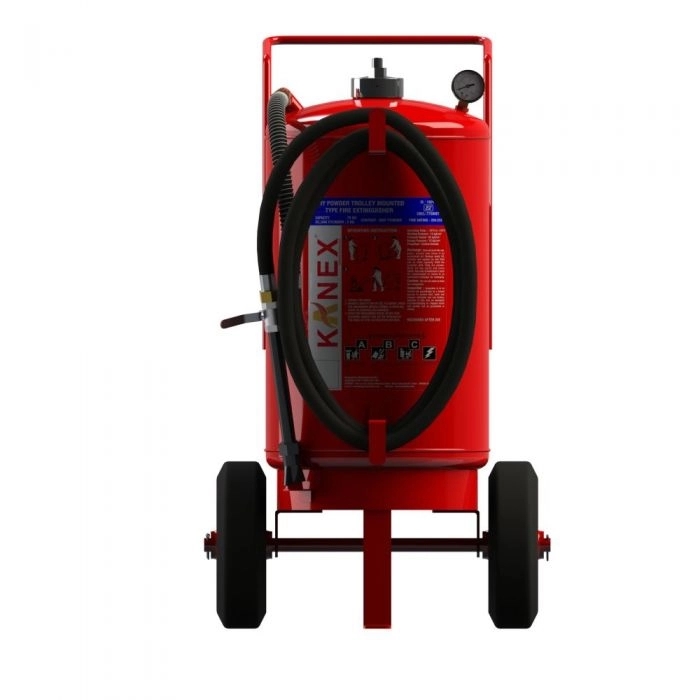

Kanex 25 Kg Abc Fire Extinguisher (Map 90 Based Mobile)

l Conformity to IS 16018:2012

l BIS Approved and ISI marked

l Hydraulically tested as per standard and passed through anti-corrosive treatment

I High quality Pure Polyester (PP) powder coating (UV Resistant)

l Brass caps, drain plugs, ball valve conforms to IS:319

l Aluminum alloy nozzle conforms to IS:617

l Controllable discharge

l Easy to maintain, recharge & service

l PVC braided discharge hose

l MAP Mono Ammonium Phosphate 90% dry chemical powder confronts to IS 14609 capable of fighting against class A, B, C & Electrically started fires.

MODEL: KFDRQ-25-90%

Capacity: 25 kg

Design: Hose & Nozzle

Fire Rating: 20A:233B

Height (Approx.): 980 mm

Diameter (Approx.): 300±10 mm

Average Discharge Time: 32 Sec

Average Range of throw: 6 m

Average Discharge: 90%

Operating Temperature: -30 °C to +55 °C

Service/Max. service/Test Pressure: 15 / 18 / 35 bar

Expelling Agent: Co2

Full Weight (Approx.): 84 kg

Empty Weight (Approx.): 59 kg

Approvals: BIS

Warranty: 5 Years Warranty

Refer Catalogue For More Information
