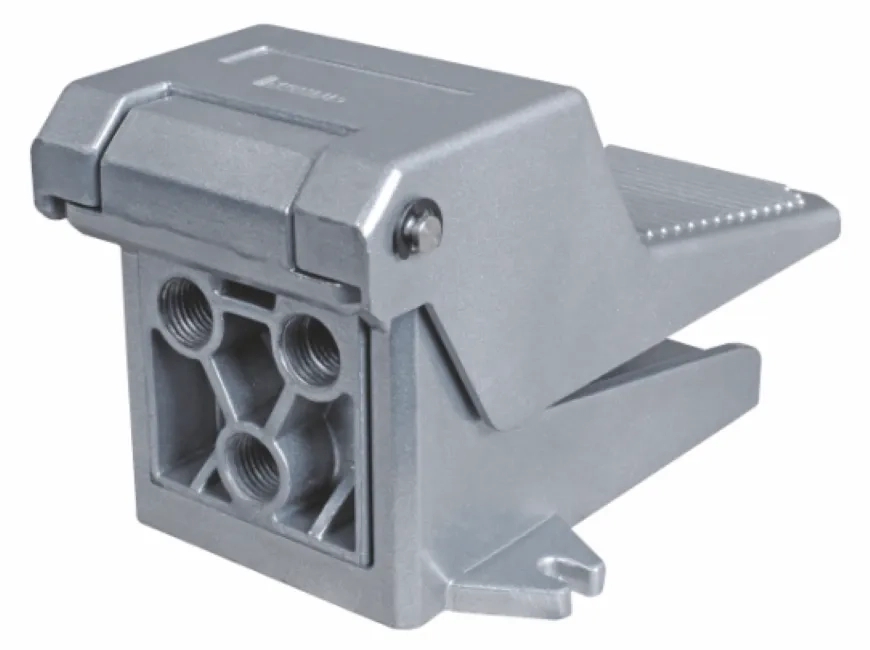

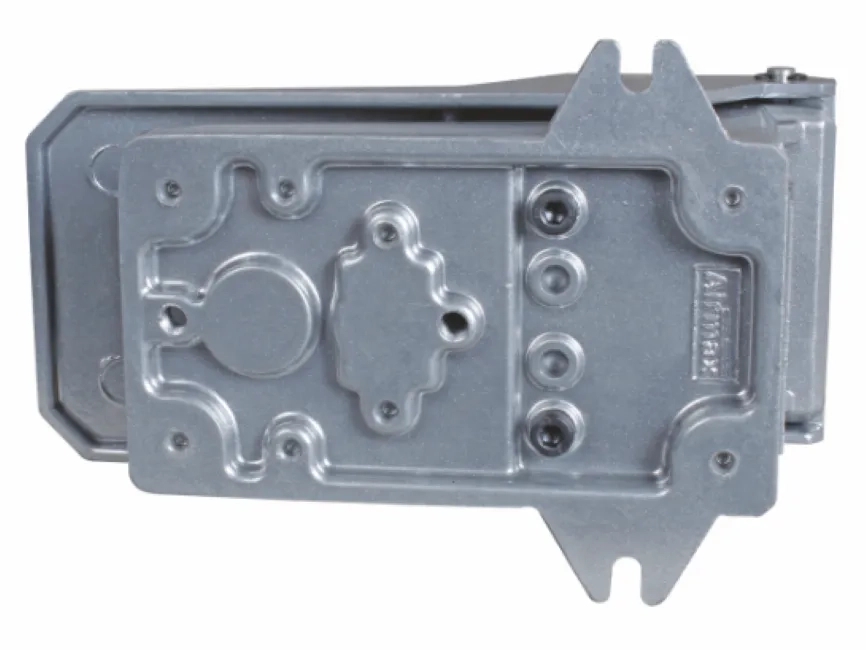

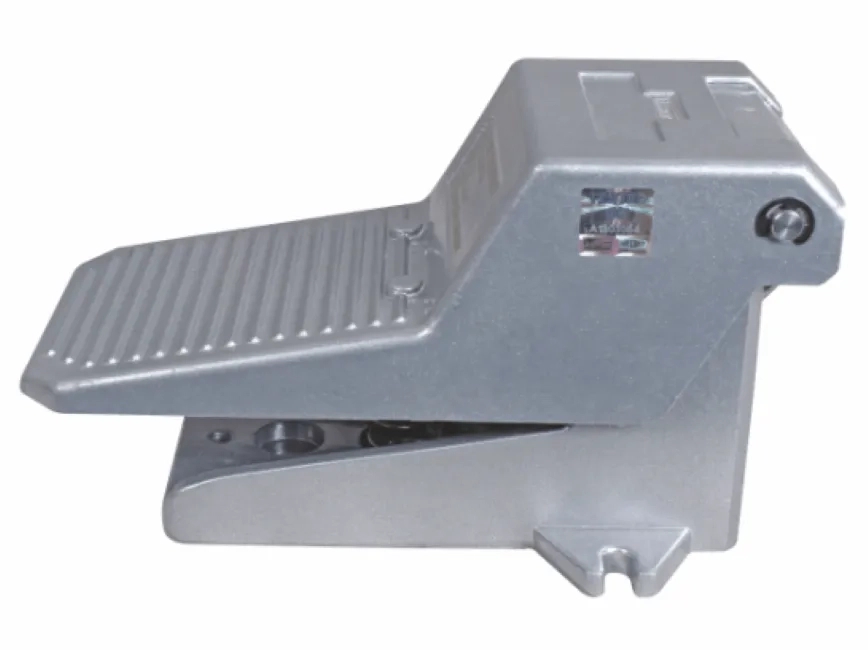

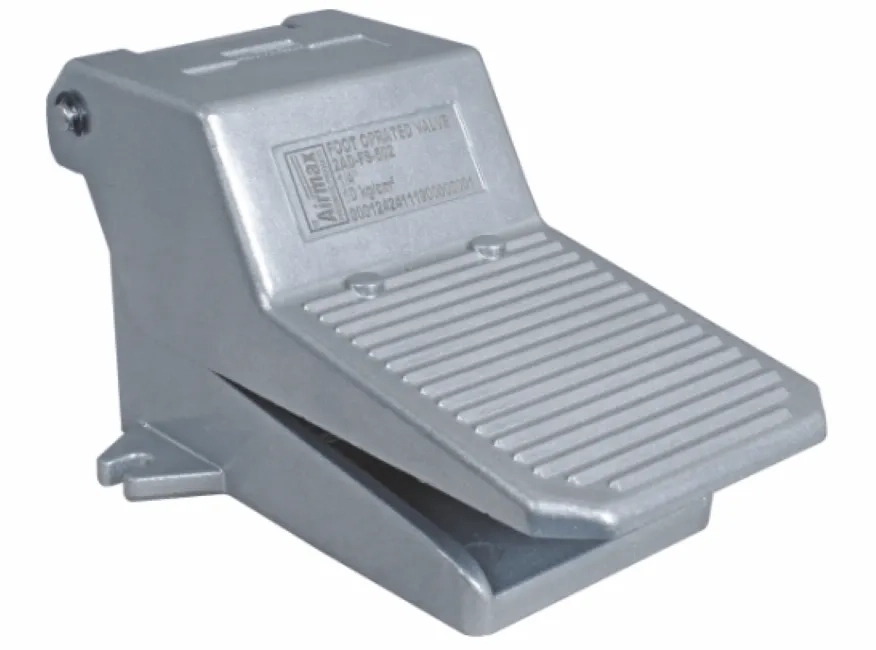

Airmax 5/2 Foot Operated Valves (Detent / Spring Return)

The product description is for 5/2 Foot Operated Valves (Detent/Spring Return) manufactured by Airmax Pnumatic. They are used to control the flow of compressed air in pneumatic systems. They are available in two models: 2AD-FV-502 (5/2 Detent) and 2AD-FS-502 (5/2 Spring Return). They have a size of 1/4″, a body made of aluminum pressure die cast, and seals made of hi-nitrile. They can withstand a pressure of up to 10 kg/cm² and a temperature of up to 55 °C (Max). They have a leakage of bubble tight and use compressed air (filtered and lubricated) as the media. Airmax also manufactures, supplies, and exports these valves in India and worldwide. Additionally, the AD-20 Series is a premium product line that offers even higher quality and performance. Looking for compact solutions? The 3/2 foot operated valve offers efficient control with fewer ports, perfect for straightforward applications.

Model : 2AD-FV-502 (5/2 Detent)

2AD-FS-502 (5/2 Spring Return)

Size : 1/4"

Body : Aluminium Pressure Die Cast

Seals : Hi - Nitrile

Pressure : Upto 10 Kg/cm²

Temperature : Upto 55 °C (Max.)

Leakage : Bubble Tight

Media : Compressed Air (Use Filtered & Lubricated)

Technical Specifications :

Design : Poppet Type

Recommended for Lubrication : ISO VG32 (Servo System 32)

Flow : 550 LPM

Media : Compressed Air ( Filtered & Lubricated )

Features :

Compact Design

Durable

Light Weight

Standard Grade MOC

Smart International Design Look

Epoxy Treated Surface

Replaceable & Repairable Parts
