Ozone New Clear Line

The Clear Line Systems are designed to eliminate the requirement for vertical support to the railing. This system, also known as the Shoe System Railing, supports the glass from the bottom when inserted into it. Different systems are designed based on the application area of the railing, glass type, height and thickness. Again, these systems are tested for various wind loads as per international specifications and requirements. The railing can be both full rail profile or segmented with a cover. The aluminium system can easily be powder coated and anodized in various finishes.

Features: Glass panels provide clear and uninterrupted views.

Glass type, height, and thickness can be customized.

Wind load tested according to structural requirements

Color : Black Matt

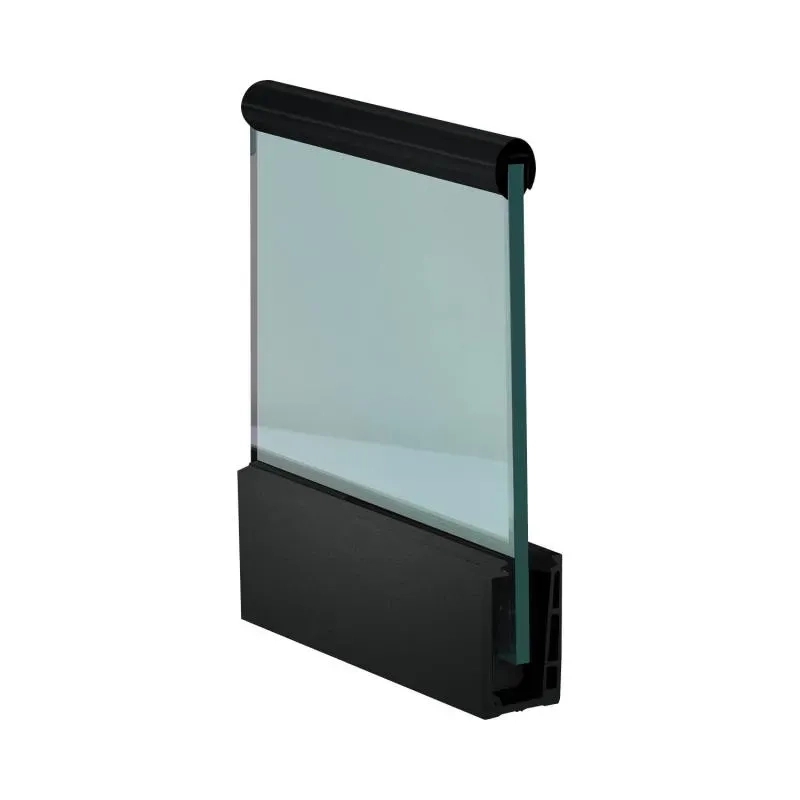

OZRCL-75x50 BM

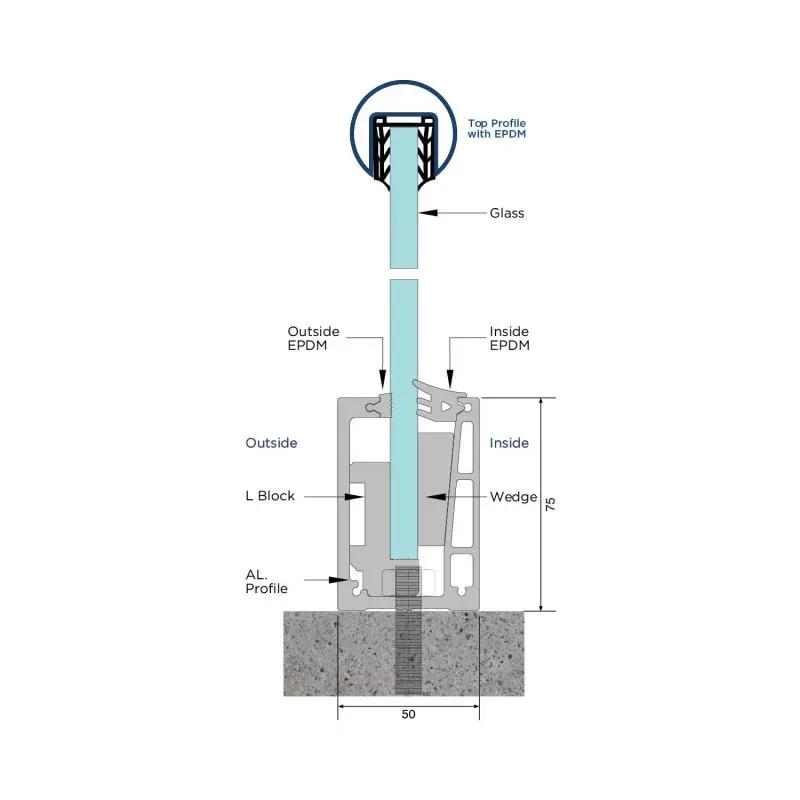

75mm (H)x50mm(W) Aluminium 'U' Channel

Features:

Glass panels provide clear and uninterrupted views.

Glass type, height, and thickness can be customized.

Wind load tested according to structural requirements.

Full or segmented railing design options available.

Technical Specifications:

Glass Thickness: 10 & 12mm

Material: Aluminium 6063 grade

Standard Length: 3mtr

USP:

Made from best exterior aluminum grade 6063.

Inserts are made of high grade nylon which is temperature and weather resistance .

Micro wave cured weather resistance epdm gasket .

High quality powder coating options available.

Applications:

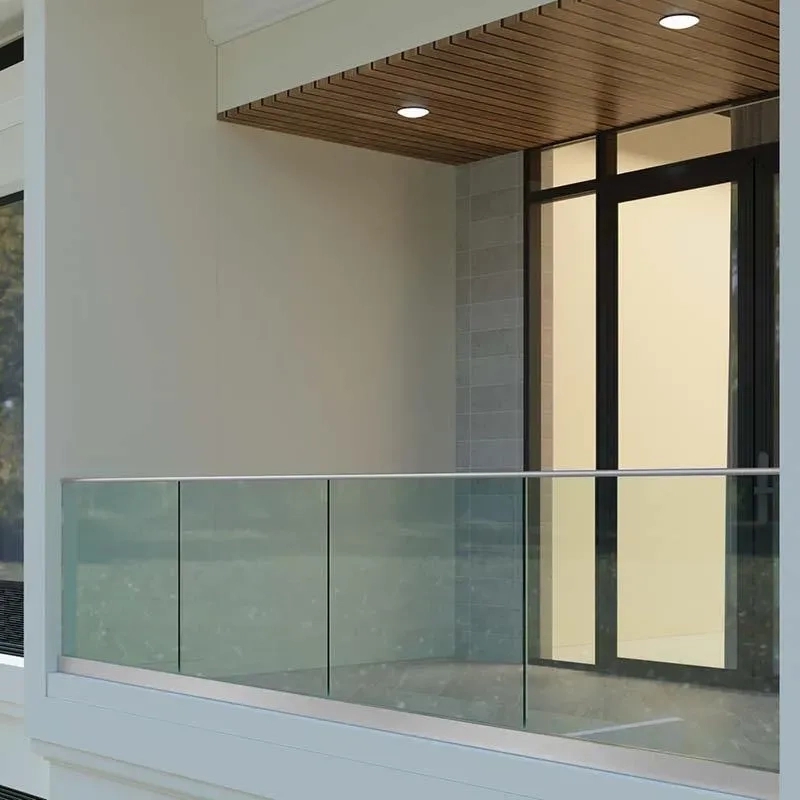

Ideal for 2-3 story kothies & villa balconies
