FG Glass Enamelite

Enamelite™ is a ceramic fritted glass that is processed through a silkscreen or spray painted. It imparts style, enhances privacy and provides light and heat diffusion by fusing ceramic inks on glass. The inks are transferred to the glass in the design and colour of your choice through a custom-designed silkscreen. These glasses allow us to create amazing decorative surfaces or can be used as opaque spandrel panels. Our inks are sourced only from Europe and are guaranteed against aking and peeling. Over 100 designs and colours can be transferred to clear, tinted and coated glasses. Once the inks are coated on to the glass surface, it is then red in the furnace at 650ºC. Depending on your needs, we can create these panels as fully tempered or heat-strengthened units. This post-print ring ensures that the printed surface is extremely durable and highly resistant to scratches and peeling off.

Product Family :

Enamelite™ First : Clear ceramic-fritted glass

Enamelite™ Clarity : Ultra-clear ceramic-fritted glass

Enamelite™ Tone : Tinted ceramic-fritted glass

Enamelite™ Solar : Solar-control coated ceramic-fritted glass (pyrolytic or MSVD coated)*

Enamelite™ Pro-1 : Low-E coated ceramic-fritted glass (pyrolytic coated)

Enamelite™ Pro-2, Pro-3, Pro-4 : Silver low-E ceramic-fritted glass (MSVD)*

Technical Specifications :

Process Type : Screen printed or spray painted

Glass Type : Clear, extra clear, ultra clear, tinted, solar-control coated, low-E coated

Additional Process Compatibility : Sand-blasting, acid-etching, holes, cutouts and notches

Product Enhancement : Can be converted to Climacool™ (insulated glass), Lamisecure™ (laminated glass), Fire-Safety Glass, Security Glass, and Creations Glass Range.

Glass Thickness : 4 mm to 25 mm

Edge Types : Rough grind, arrissed, super polished

Compressive Stress (Surface) : 30 MPa to 52 MPa (4,300 psi to 7,500 psi) - Heat Strengthened 69 MPa (10,500 psi) minimum - Fully Toughened

Ink Makes : Torrecid (Spain), Ferro (Germany) or Fenzi (Italy)

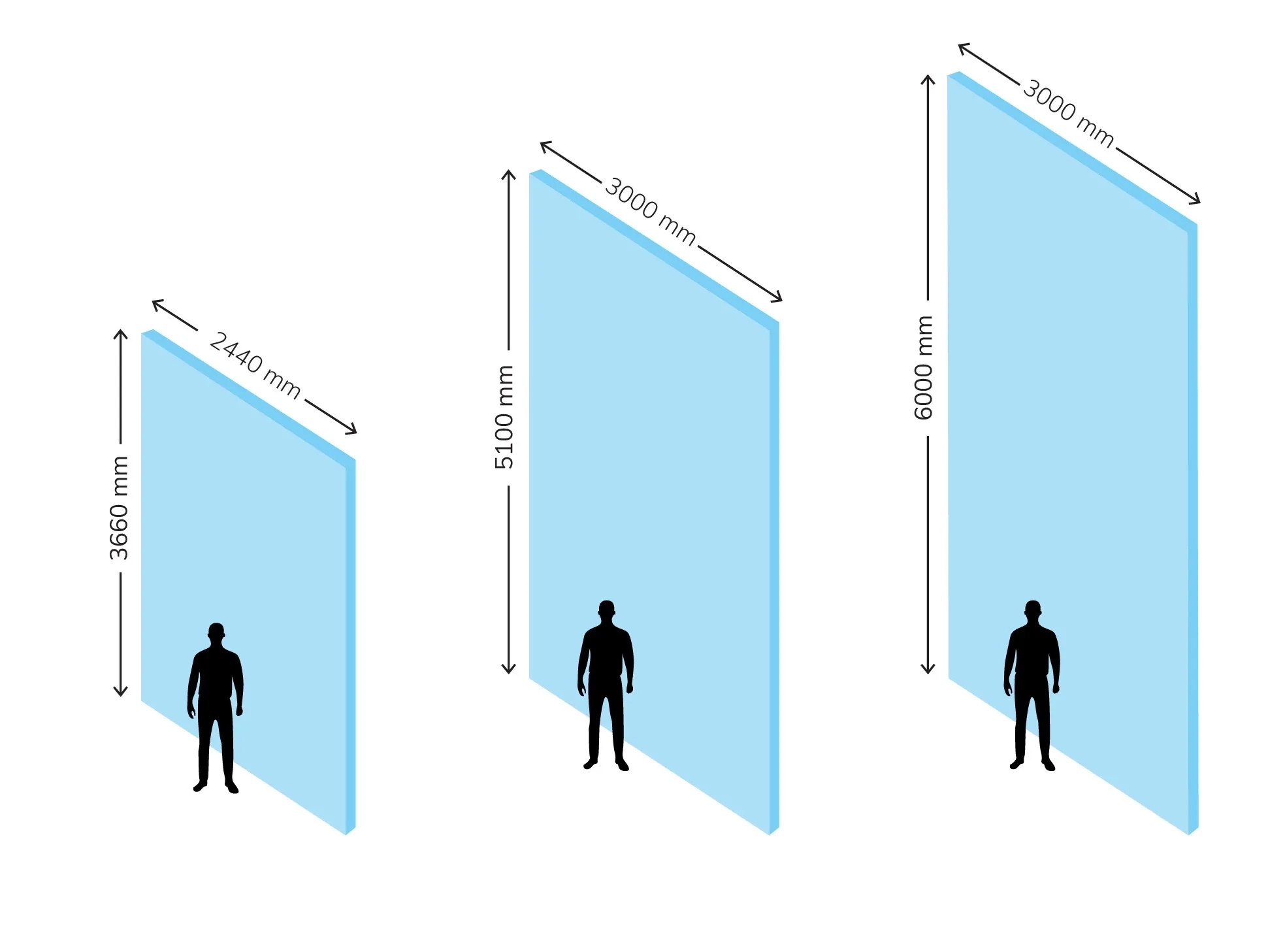

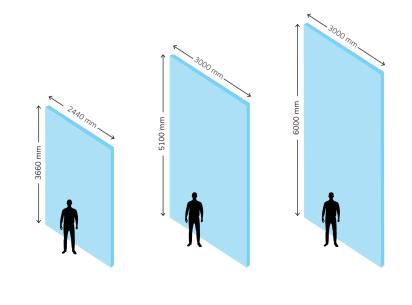

Dimensions :

Minimum Size : 200 mm x 300 mm

Maximum Size : 2440 mm X 3660 mm (4 mm and 5 mm)

3000 mm X 5100 mm (6 mm)

3000 mm X 6000 mm (8 to 19 mm)

25 mm maximum size available on request

Refer Catagolue for more Information.
