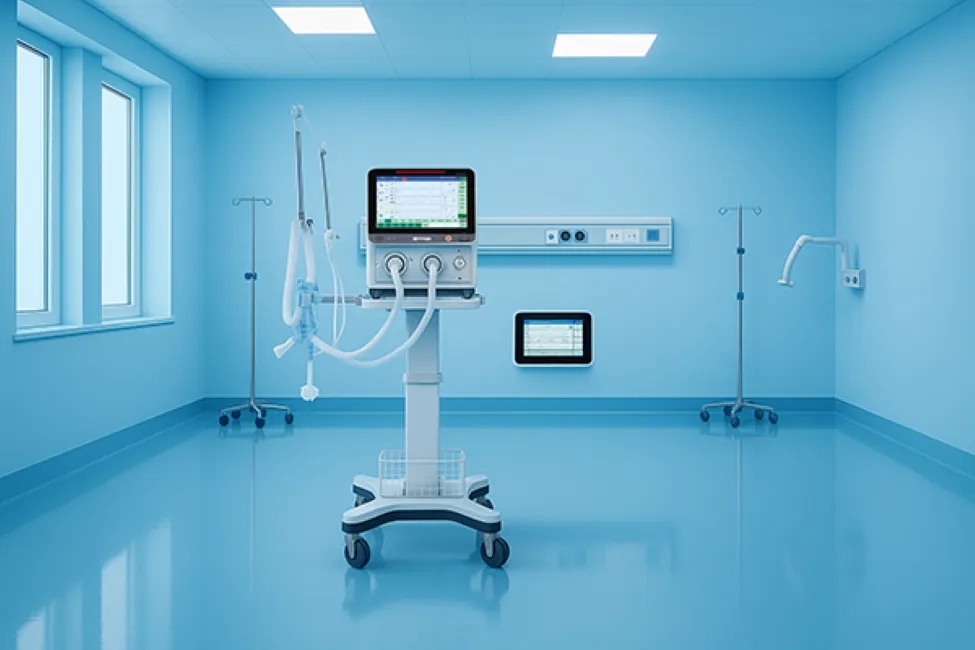

SI Surgical ICU Ventilator - EVA 100 Ventilator

Ventilation Settings :-

Tidal Volume : 2 ml – 2000 ml

Inspiratory Pressure : Up to 120 cm H2O

Respiratory Rate : Up to 300 bpm

Apnoea Backup Rate

СРАР / PEEP

Pressure Support : Up to 40 cm H2O or more

Pause Time and Flow Cycling

Pressure or Flow Trigger

Inspiratory Flow : Up to 180 LPM

Technical Specifications :-

The ventilator supports both Invasive and Non-Invasive ventilation.

Microprocessor controlled system suitable for Infant, Paediatric and Adult ventilation.

Electromagnetically compatible hinged arm holder provided to hold the breathing circuit.

Built-in colour TFT touch display (12.1" – 15") for waveforms and monitored values. 1. Touch screen operation with encoder knob. 2. Integrated display (external display not required). 3. Adjustable viewing angle.

Integrated volumetric EtCO2 measurement and FiO2 monitoring.

Display of the following parameters and indicators: 1. Ventilator mode status indicator 2. Battery indication 3. Pressure vs Time waveform 4. Flow vs Time waveform 5. Volume vs Time waveform 6. Alarm settings 7. Pressure vs Flow loop 8. Volume vs Flow loop 9. Pressure vs Volume loop

Colour-coded display for patient breathing patterns.

Ability to display two waveforms and two loops simultaneously on a single screen during ventilation with facility to store reference loops or screenshots.

Automatic compliance and leakage compensation for circuit and ET tube during both inspiration and expiration phases.

Event and alarm logbook with date and time recording.

Refer Catalogue for more Information
